Engine displacement
850
2
Year
2012
3
Trim
SPORTSMAN XP TOURING EPS 850 INTL - A12DN8EFW
4
Parts Catalog
BRAKES, BRAKE PEDAL AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
BRAKE LINES
by
CHASSIS, MAIN FRAME
BRAKES, BRAKE PEDAL AND MASTER CYLINDER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
18
19
20
21
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
9
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
11
12
13
14
15
16
17
18
19
1
2-EAR RESERVOIR BRAKE ASSEMBLY; TALL
1911224
$68,24 Unit Price incl. VAT
2
DIAPHRAGM-RESERVOIR BRAKE
5413262
$9,44 Unit Price incl. VAT
3
RING-RESERVOIR BRAKE
5437041
$10,49 Unit Price incl. VAT
4
HEX HEAD FLANGE BOLT 6MMX1.0MMX25MM BLK
7518533
$2,09 Unit Price incl. VAT
5
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
6
HOSE-RESERVOIR BRAKE 826MM
1911267826
Not Available
7
MASTER CYLINDER FOOT ASSEMBLY; 3/4 IN
1911551
$204,74 Unit Price incl. VAT
8
NUT-M8X1.25 HXFLG NYLON INS
7547317
7548028
$5,24 Unit Price incl. VAT
9
SCREW
7516732
$3,14 Unit Price incl. VAT
10
BRKT-BRAKE MOUNT INT L
5253114
5270712
Not Available
11
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
12
HEX FLANGE BOLT; 8 MM X 1.25 MM X 50 MM
7518677
$7,34 Unit Price incl. VAT
13
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
14
PEDAL PIVOT BUSHING
5433189
$7,34 Unit Price incl. VAT
15
TORSION SPRING; BRAKE
7041750
$16,79 Unit Price incl. VAT
16
WELD-LEVER BRAKE BLK
1911722067
Not Available
17
BOLT-M10X1.25X50 HXFLG-OLIVE D
7518559
$10,49 Unit Price incl. VAT
18
SPACER-12.7X10.2X30.5MM
5135720
$12,59 Unit Price incl. VAT
19
PIN-COTTER 5/64X3/4-Y
7661900
$6,29 Unit Price incl. VAT
20
CLEVIS PIN
7661830
$7,34 Unit Price incl. VAT
21
NYLOK NUT
7546703
$2,09 Unit Price incl. VAT

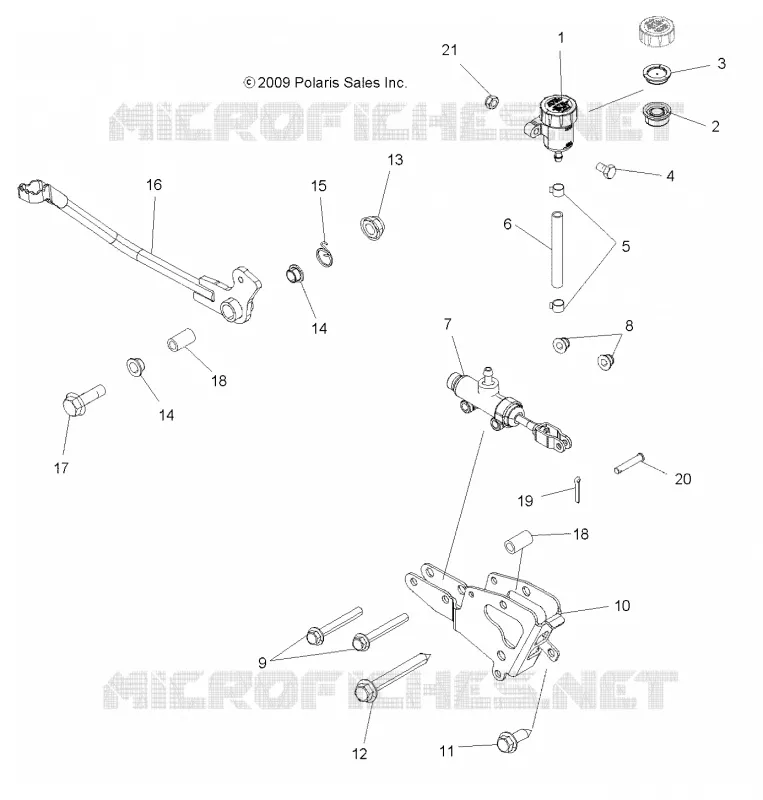

Find the detailed BRAKES, BRAKE PEDAL AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
