1
Engine displacement
1000
2
Year
2022
3
Trim
RZR XP 4 1000 MD 64" WIDE
4
Parts Catalog
CHASSIS, MAIN FRAME AND SKID PLATES -Z22NAS99CK/FK (C0703286)
5
Parts Diagram
Parts Catalog
CHASSIS, CAB FRAME ACCESSORIES
by
CHASSIS, TOW HOOK -Z22NAS99CK (C701073)
CHASSIS, MAIN FRAME AND SKID PLATES -Z22NAS99CK/FK (C0703286)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
MAIN FRAME WELD; MATTE BLACK
1024526458
Not Available
2
MAINFRAME SWAY WELD; FRONT; MATTE BLACK
1024369458
Not Available
3
HEX FLANGE SCREW 10 MM X 1.25 MM X 55 MM
7519285
$4,19 Unit Price incl. VAT
4
HEX FLANGE SCREW 10 MM X 1.25 MM X 40 MM
7519332
$10,49 Unit Price incl. VAT
5
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
6
SKID PLATE; GLOSS BLACK
5456432070
Not Available
7
PLATE-SKID REAR BLK
5458186070
Not Available
8
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
9
SKID PLATE WASHER
7556065
$8,39 Unit Price incl. VAT
10
SUSPENSION MOUNT BRACKET; FRONT; MT BLK
5259449458
Not Available
11
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
12
DASH; BLACK
1024577329
Not Available
13
SEAT BASE ASSEMBLY
1020571329
Not Available
14
BOLT
7519650
$7,34 Unit Price incl. VAT
15
HEX FLANGE BOLT; 10 MM X 1.5 MM X 55 MM
7518474
$9,44 Unit Price incl. VAT
16
BOX STRAP BRACKET; BLACK
5260947329
Not Available
17
BOX SUPPORT BRACKET; REAR; BLACK
5264553329
Not Available
18
SUPPRT WELD; REAR; BLACK
1019529458
Not Available
19
CLOSEOFF SUPPORT BRACKET; BLACK
5260539329
Not Available
20
SCREW
7516732
$3,14 Unit Price incl. VAT
21
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
22
PLUNGER-LATCH SEAT
5632848
$25,19 Unit Price incl. VAT

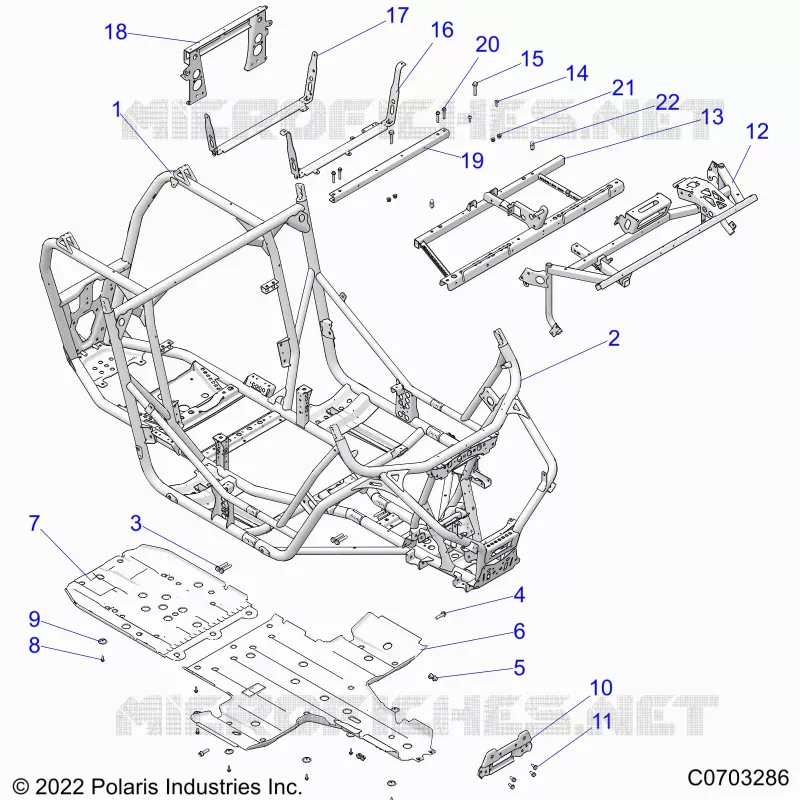

Find the detailed CHASSIS, MAIN FRAME AND SKID PLATES -Z22NAS99CK/FK (C0703286) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
