Parts Catalog
CRANKCASE AND CYLINDER SCRAMBLER W957840 (4927252725C013)
5
Parts Diagram
Parts Catalog
PISTON CRANKSHAFT SCRAMBLER W957840 (4927252725C012)
by
STARTING MOTOR SCRAMBLER W957840 (4927252725D005)
CRANKCASE AND CYLINDER SCRAMBLER W957840 (4927252725C013)
1
2
3
3
3
3
4
4
4
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
23
23
24
25
26
27
28
29
30
31
32
33
34
34
35
36
37
38
38
39
40
41
42
43
44
45
46
47
47
48
48
49
49
50
51
52
53
54
55
56
1
GASKET HEAD
3084731
9999999
Not Available
2
HEAD CYLINDER
3084730
9999999
Not Available
3
GASKET; ALUM;
3082758
7555998
$2,09 Unit Price incl. VAT
4
PLUG DRAIN
3083767
9999999
Not Available
5
FLANGE NUT
3082910
9999999
Not Available
6
PIPE; WATER
3083452
9999999
Not Available
7
NUT
3080285
9999999
Not Available
8
LOCK WASHER
3080530
9999999
Not Available
9
GASKET EXHAUST
3084017
9999999
Not Available
10
STUD
3080016
9999999
Not Available
11
PIPE-1ELBOW
3084129
9999999
Not Available
12
FLANGE NUT
3082911
7547013
$3,14 Unit Price incl. VAT
13
BANJO BOLT
3083137
9999999
Not Available
14
VALVE CHECK
3083894
9999999
Not Available
15
GASKET; ALUMINUM
3083138
7555998
$2,09 Unit Price incl. VAT
16
ADAPTER
3085038
9999999
Not Available
17
VALVE REED
3240064
9999999
Not Available
18
STOPPER
3240065
9999999
Not Available
19
SCREW&WASHER
3240066
9999999
Not Available
20
GASKET REED VALVE(10)
3084148
9999999
Not Available
21
VALVE ASM. REED
3084147
9999999
Not Available
22
STUFFER (REED VALVE ASM.)
3240164
9999999
Not Available
23
CLAMP
3083590
9999999
Not Available
24
BOLT; FLANGE
3084145
9999999
Not Available
25
BAND ASM.
3084144
9999999
Not Available
26
PAN HEAD SCREW
3081497
9999999
Not Available
27
PLUG
3083453
9999999
Not Available
28
GASKET
3082956
9999999
Not Available
29
GASKET-CASE 3
3084727
9999999
Not Available
30
PIPE; BREATHER
3084128
9999999
Not Available
31
SUBSTITUTED BY 9999999
3084132
Not Available
32
PIPE-2 ELBOW
3084130
9999999
Not Available
33
BOLT FLANGE (10)
3084435
9999999
Not Available
34
SEAL OIL
3084120
9999999
Not Available
35
BOLT FLANGE
3084126
9999999
Not Available
36
CRANKCASE ASM.
3084726
9999999
Not Available
37
BOLT FLANGE
3084134
9999999
Not Available
38
PIN; DOWEL
3080103
9999999
Not Available
39
BALL BEARING
3084131
9999999
Not Available
40
O-RING
3084733
9999999
Not Available
41
GAUGE OIL Substituted by 3085517 (Incl. 42)
3084732
Not Available
42
BALL BEARING
3084121
9999999
Not Available
43
BALL BEARING
3084775
9999999
Not Available
44
SEAL OIL
3084725
9999999
Not Available
45
BOLT FLANGE
3084125
9999999
Not Available
46
SCREW AND WASHER
3084205
9999999
Not Available
47
STUD
3084118
9999999
Not Available
48
STUD
3084119
9999999
Not Available
49
ASM-CRANKCASE
3084774
9999999
Not Available
50
BALL BEARING
3084123
9999999
Not Available
51
CYLINDER GASKET
3084729
9999999
Not Available
52
CLAMP
3083384
9999999
Not Available
53
WASHER(10)
3080142
9999999
Not Available
54
BOLT FLANGE
3084124
9999999
Not Available
55
KIT CYL&ADAPTER (SCRAMBLER)
2200833
9999999
Not Available
56
STUD
3084138
9999999
Not Available

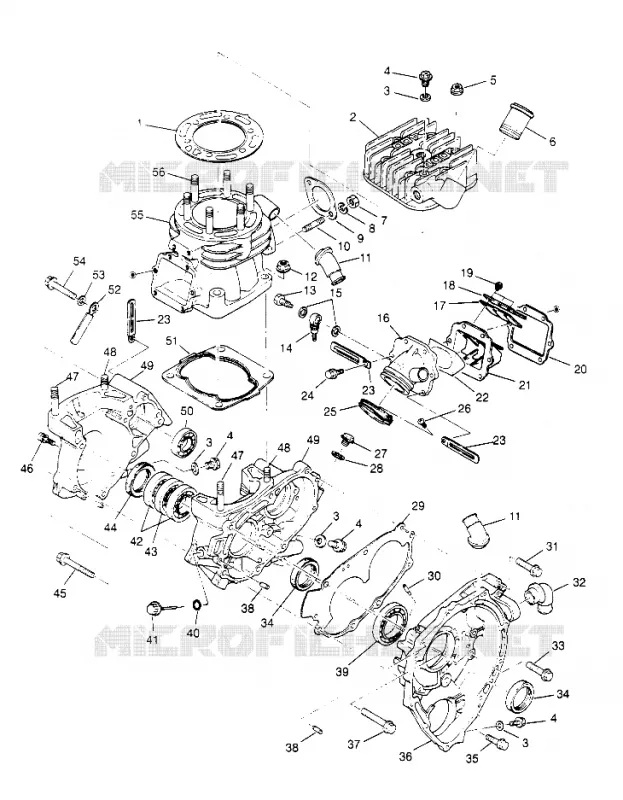

Find the detailed CRANKCASE AND CYLINDER SCRAMBLER W957840 (4927252725C013) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
