CYLINDER AND PISTON for POLARIS RZR PRO XP 4 SPORT from 2023

CYLINDER AND PISTON

1

CYLINDER ASSEMBLY

3023035

3024513

$782,24 Unit Price incl. VAT

2

DOWEL PIN; 6 MM X 10 MM

5132835

$4,19 Unit Price incl. VAT

3

ASM-PISTON

3023950

2206216

$256,19 Unit Price incl. VAT

4

PISTON RINGS KIT

2206217

$108,14 Unit Price incl. VAT

5

PISTON KIT

2206216

$256,19 Unit Price incl. VAT

6

C-CLIP; ROUNG(2)

7710479

$13,64 Unit Price incl. VAT

7

WATER INLET COVER

5141311

$68,24 Unit Price incl. VAT

8

INLET WATER GASKET

5813736

$41,99 Unit Price incl. VAT

9

HEX FLANGE SCREW; 6 MM X 20 MM

7518576

$6,29 Unit Price incl. VAT

10

4-LAYER CYLINDER HEAD GASKET

5814693

$110,24 Unit Price incl. VAT

11

DETONATION BOSCH SENSOR

2410369

$152,24 Unit Price incl. VAT

12

SCR-M8X1.25X30 HX/FL-YD

7517262

$10,49 Unit Price incl. VAT

13

SHIELD-HEAT BOLTED;COOLANT

5265306

$19,94 Unit Price incl. VAT

14

SCR-HXFL-M6X1.0X12 8.8

7520710

$7,34 Unit Price incl. VAT

15

GASKET-BASE 2 CYL

5272970

$68,24 Unit Price incl. VAT

15

BASE GASKET

5253037

$57,74 Unit Price incl. VAT

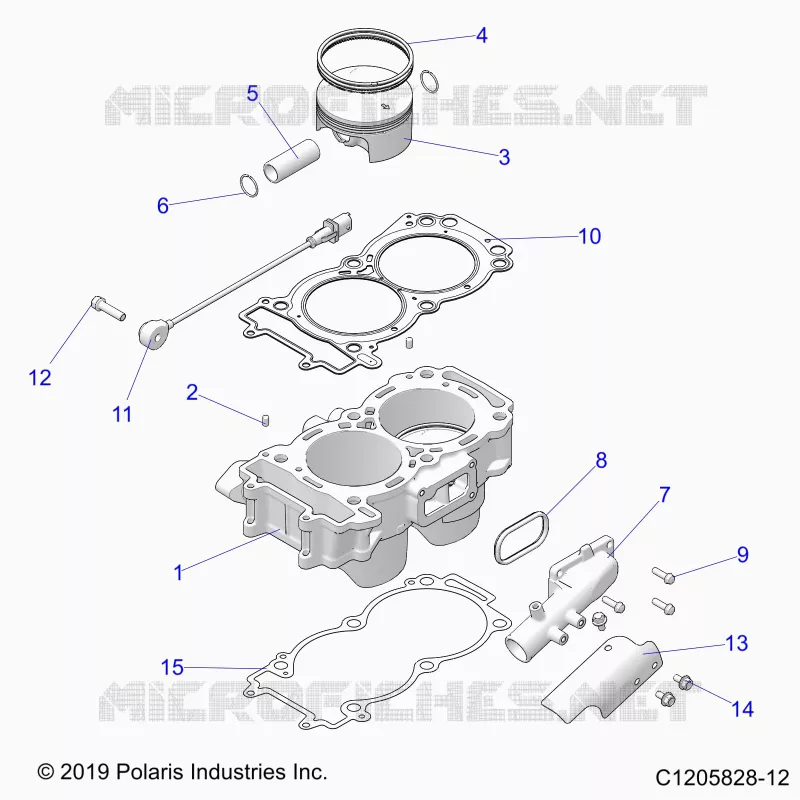

Find the detailed CYLINDER AND PISTON POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
