1
Engine displacement
600
2
Year
2011
3
Trim
600 SWITCHBACK
4
Parts Catalog
FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY
5
Parts Diagram
Parts Catalog
WIRE HARNESS
by
ENGINE, AIR INTAKE SYSTEM
FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY
1
2
3
3
4
4
5
6
7
7
7
7
7
7
8
9
9
10
11
12
1
FUEL LINE W/ FILTER ASSEMBLY; RMK SDI
2520771
9999999
Not Available
2
RETURN FUEL LINE ASSEMBLY; RMK SDI
2520770
9999999
Not Available
3
PAD-FUEL FILTER
5812996
9999999
Not Available
3
ASM-FUEL FILTER RETAINER
1203256
9999999
Not Available
4
SCREW
7512095
$9,44 Unit Price incl. VAT
5
CLAMP RUBBER-COATED .562
7080573
$13,64 Unit Price incl. VAT
6
FUEL RAIL ASSEMBLY
2520572
9999999
Not Available
7
KIT-INJECTOR 500G/MINYLW
2203894053
Not Available
7
KIT-INJECTOR 500G/MINBLU
2203894027
Not Available
7
KIT-INJECTOR 500G/MIN;RED
2203894015
Not Available
8
THROTTLE BODY ASSEMBLY
1203213
$976,49 Unit Price incl. VAT
9
BOLT ALLEN M6 X 1.0 X 14
7517431
$10,49 Unit Price incl. VAT
10
O-RING-BOSCH EV-14 UPPER
1500198
$20,25 Unit Price incl. VAT
11
BOSCH O-RING
5412891
$2,09 Unit Price incl. VAT
12
INJECTOR ELASTOMER RUBBER BUSHING
5436287
$6,29 Unit Price incl. VAT

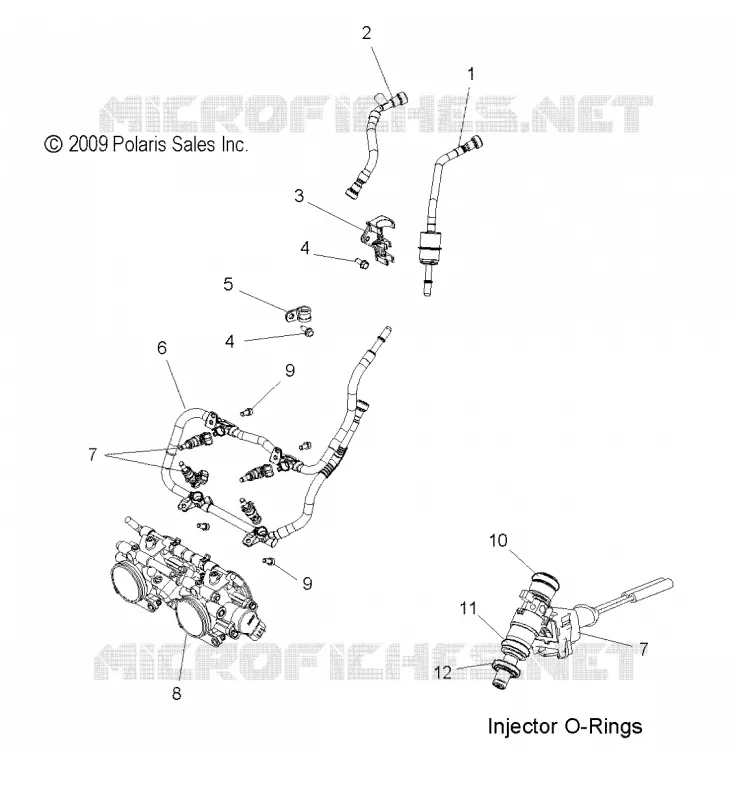

Find the detailed FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
