BRAKES, PEDAL AND MASTER CYLINDER MOUNTING
5
Parts Diagram
Parts Catalog
WHEELS, FRONT TIRE AND BRAKE DISK
by
REAR BRAKE CALIPER
BRAKES, PEDAL AND MASTER CYLINDER MOUNTING
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
1
1
2
2
2
3
4
4
5
6
7
8
9
1
WELD-PEDAL BRAKE RED
1022924239
Not Available
2
MASTER CYLINDER ASSEMBLY; DUAL BORE
1912811
$519,74 Unit Price incl. VAT
3
BRKT-CLEVIS
5263493
9999999
Not Available
4
BRKT-MC BOOT RETAINER
5263509
9999999
Not Available
5
BRKT-MNT BRAKE PEDAL BLK
5263519458
Not Available
6
SEAL-MC BOOT
5416095
9999999
Not Available
7
NUT-HEX-M8X1.25 8ZPB;LH;THR
7547851
$7,34 Unit Price incl. VAT
8
PEDAL BUSHING PIVOT
5439274
$24,14 Unit Price incl. VAT
9
CAST-COUPLER BRAKE PUSH ROD
5633731
$19,94 Unit Price incl. VAT
10
SPRING
7041789
$16,79 Unit Price incl. VAT
11
WASHER-.937X.501X.031 OLIVE D
7556376
$6,29 Unit Price incl. VAT
12
CLIP PIN; 14 MM
7661140
$2,09 Unit Price incl. VAT
13
CLEVIS PIN; 1/4 X 3/4
7661843
$4,19 Unit Price incl. VAT
14
PIN-COTTER 5/64X3/4-Y
7661900
$6,29 Unit Price incl. VAT
15
PIN-PIVOT BRAKE PEDAL
7662312
$17,84 Unit Price incl. VAT
16
HEX FLANGE SCREW; 8 MM X 30 MM
7518884
$3,66 Unit Price incl. VAT
17
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
18
BRAKE PUSH ROD
1912814
9999999
Not Available
19
HEX FLANGE SCREW; 6 MM X 1.0 MM X 12 MM
7519145
$7,34 Unit Price incl. VAT
20
HEX HEAD NUT; 8 MM
7547076
$4,19 Unit Price incl. VAT

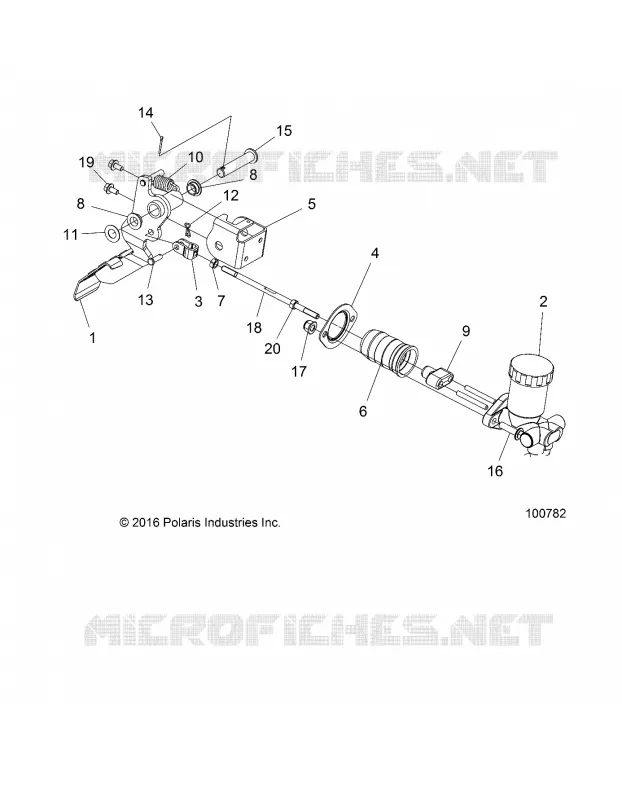

Find the detailed BRAKES, PEDAL AND MASTER CYLINDER MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
