1
Engine displacement
550
2
Year
2000
3
Trim
550 SUPERSPORT
4
Parts Catalog
CHAINCASE
5
Parts Diagram
Parts Catalog
CONSOLE
by
DRIVE TRAIN
CHAINCASE
1
2
3
4
4
5
5
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
2
3
4
4
5
5
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
OIL SEAL
3610030
$36,74 Unit Price incl. VAT
2
NUT
7542404
$3,14 Unit Price incl. VAT
3
SCREW
7515551
9999999
Not Available
4
BALL BEARING #6205
3514309
3515910
$30,23 Unit Price incl. VAT
5
RETAINING RING
7718406
$11,54 Unit Price incl. VAT
6
WHEEL C/C IDLER
5630123
9999999
Not Available
6
BEARING
3553002
9999999
Not Available
6
THRUST WASHER
7558702
$3,14 Unit Price incl. VAT
6
CHAINCASE TIGHTENER
1332213
9999999
Not Available
6
PIN CHAIN TIGHTENER
7662210
9999999
Not Available
7
19 TOOTH SPROCKET
3221095
$68,24 Unit Price incl. VAT
8
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
9
NUT
7542811
7547202
$10,49 Unit Price incl. VAT
10
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
11
CHAINCASE GASKET
5410277
9999999
Not Available
12
CAST CHAINCASE COVER 6.625
5630968
9999999
Not Available
13
SCREW
7512242
$4,19 Unit Price incl. VAT
14
SCREW
7515350
7517979
$7,34 Unit Price incl. VAT
15
SPRING WASHER
7571618
$11,54 Unit Price incl. VAT
16
HYVO CHAIN
3221113
$194,24 Unit Price incl. VAT
17
SPKT 39T 3/4W 15T HYVO PM
3222108
3225070
$89,24 Unit Price incl. VAT
18
NYLOK NUT
7542451
$2,09 Unit Price incl. VAT
19
PLUG
7052115
$10,49 Unit Price incl. VAT
20
CHAINCASE-MACH6.625 CD
5132158
9999999
Not Available
21
SCREW; CARRIAGE
7515477
9999999
Not Available

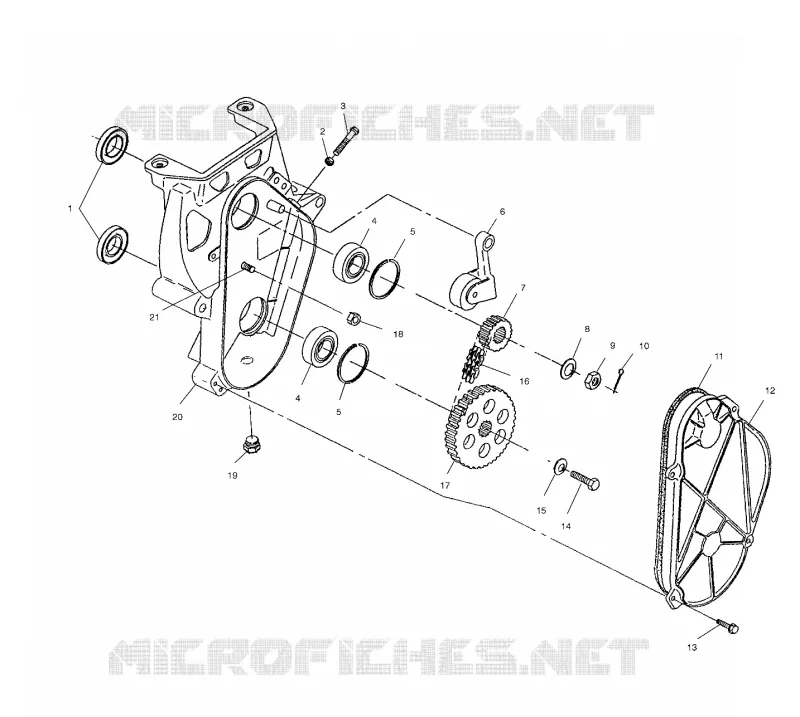

Find the detailed CHAINCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
