FRONT WHEEL for POLARIS SPORTSMAN 400 - A02CH42AB from 2002

FRONT WHEEL

1

BOLT

7512325

$4,19 Unit Price incl. VAT

2

DISC BRAKE 8.95 OD .158

5243676

9999999

Not Available

3

HUB SEAL; FRONT

3610019

$68,24 Unit Price incl. VAT

4

ARMATURE PLATE

5211148

$52,49 Unit Price incl. VAT

5

CLUTCH HUB; FRONT

1520281

9999999

Not Available

6

TAPER ROLL CONE BEARING

3554506

$54,59 Unit Price incl. VAT

7

TAPER ROLL CUP BEARING

3554507

$54,59 Unit Price incl. VAT

8

STUD

7515523

$5,76 Unit Price incl. VAT

9

HUB ASM;SHRT(3-LOBE)W/BRG RACE

1520243

9999999

Not Available

10

ROLL CAGE

3250028

9999999

Not Available

11

ROLL

3250010

9999999

Not Available

12

GARTER SPRING

3250032

9999999

Not Available

13

SPACER

1321814

9999999

Not Available

14

CAM

3250030

9999999

Not Available

15

MAGNETIC DRAIN PLUG

7052045

$26,24 Unit Price incl. VAT

16

TIRE-25-8-12__MB0

5410947

5419027

$153,29 Unit Price incl. VAT

17

WASHER

7556004

$13,64 Unit Price incl. VAT

18

SLOTTED NUT

7542810

$5,76 Unit Price incl. VAT

19

COTTER PIN

7661401

$1,56 Unit Price incl. VAT

20

O-RING

5410470

$4,19 Unit Price incl. VAT

21

CAP; HUB; 3 LOBE; AWD

5432611

9999999

Not Available

22

SCREW

7512027

$2,09 Unit Price incl. VAT

23

FLANGED NUT LOCK(10)

7542459

$3,14 Unit Price incl. VAT

24

RIM FRONT (SILVER)

1520269117

Not Available

25

RIM VALVE

1525017

$12,59 Unit Price incl. VAT

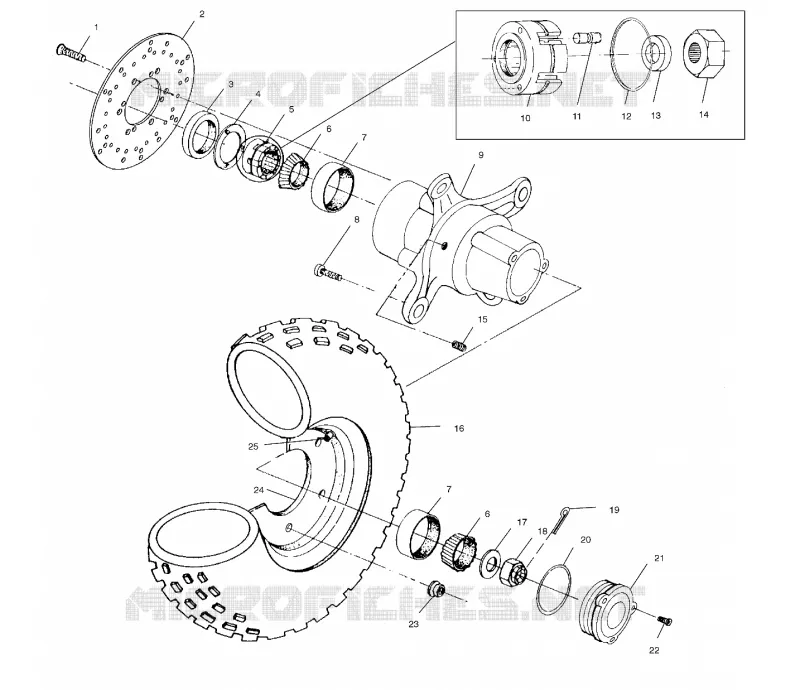

Find the detailed FRONT WHEEL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
