ENGINE, COOLING SYSTEM for POLARIS RANGER 500 2WD HDPE from 2017

ENGINE, COOLING SYSTEM

1

CORE RADIATOR ASSEMBLY

1240956

$834,74 Unit Price incl. VAT

2

VALVE-PLASTIC RAD/COOLER DRAIN

7052617

$52,49 Unit Price incl. VAT

3

PRESSURE CAP

1240899

$73,49 Unit Price incl. VAT

4

RADIATOR HOSE; UPPER

5415269

$99,74 Unit Price incl. VAT

5

HOSE; LOWER; RAD

5415526

$83,99 Unit Price incl. VAT

6

ENGINE OUTLET HOSE; REAR

5415053

$99,74 Unit Price incl. VAT

7

ENGINE HOSE; LOWER; SHORT

5415054

$62,99 Unit Price incl. VAT

8

COOLANT TUBE; 1 IN

5139239

9999999

Not Available

9

COOLANT TUBE BRACKET

5451221

$16,79 Unit Price incl. VAT

10

HOSE-BYPASS 1IN FORMED

5414162

$73,49 Unit Price incl. VAT

11

TEE CONNECTOR; 1 X 1 X 0.5

7052530

$10,49 Unit Price incl. VAT

12

BYPASS HOSE; 1/2 IN FORMED

5414590

$83,99 Unit Price incl. VAT

13

SPRING BAND CLAMPS; 32/12

7080843

$7,34 Unit Price incl. VAT

14

HOSE CLAMP

7080474

$13,64 Unit Price incl. VAT

15

SCREW M6 X 1.0; L-20MM

7516822

$4,19 Unit Price incl. VAT

16

HOSE CLAMP; 25-40 MM

7081192

$14,69 Unit Price incl. VAT

17

BRKT-SURGE TANK

5254763

$10,49 Unit Price incl. VAT

19

SURGE TANK

5436936

$152,24 Unit Price incl. VAT

20

FITTING 90 DEGREE

7052065

$13,64 Unit Price incl. VAT

21

FUEL LINE; 1/4 ID

84500031525

Not Available

22

CAP PLUG9X(GRN) FLEX TEMP(10)

5433774

$10,49 Unit Price incl. VAT

23

GASKET

5810279

$4,19 Unit Price incl. VAT

24

OVERFLOW CAP

5430743

$10,49 Unit Price incl. VAT

25

SCREW

7512084

$2,09 Unit Price incl. VAT

26

SHROUD FAN ASSEMBLY

2413196

$493,49 Unit Price incl. VAT

27

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

28

BRKT-RAD MNT;BLK

5260846458

Not Available

29

GROMMET

7052028

$11,54 Unit Price incl. VAT

30

SCR-M6X1X40 TR/TX-M

7519001

$7,34 Unit Price incl. VAT

31

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

32

SCREW M6 X 1.0; L-20MM

7516822

$4,19 Unit Price incl. VAT

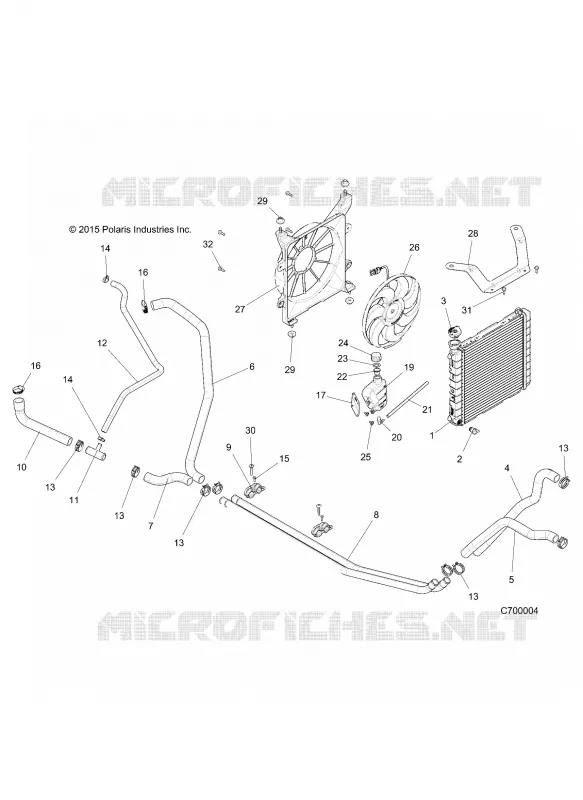

Find the detailed ENGINE, COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
