CARBURETOR for POLARIS A04BG50AA SCRAMBLER 500 4X4

SCREW

3130821

$13,64 Unit Price incl. VAT

DIAPHRAGM COVER

3130914

$89,24 Unit Price incl. VAT

SPRING

3130911

9999999

Not Available

RING

3130913

$10,49 Unit Price incl. VAT

E-RING

3130908

$11,54 Unit Price incl. VAT

RING

3130915

9999999

Not Available

JET NEEDLE

3131358

9999999

Not Available

DIAPHRAGM

3130910

$125,99 Unit Price incl. VAT

PISTON VALVE

3130912

9999999

Not Available

GUIDE CABLE

3130543

$62,99 Unit Price incl. VAT

THROTTLE SHAFT ASM.

3130931

$120,74 Unit Price incl. VAT

RING

3130932

9999999

Not Available

SPRING

3130927

$10,49 Unit Price incl. VAT

SCREW

3130933

$4,19 Unit Price incl. VAT

WASHER

3130926

9999999

Not Available

CASE

3130925

$104,99 Unit Price incl. VAT

AIR JET

3130619

$15,74 Unit Price incl. VAT

SCREW AND WASHER

3084205

9999999

Not Available

CARBURETOR ASSEMBLY

3131568

9999999

Not Available

JET-NEEDLE

3131569

9999999

Not Available

BLOCK-JET

3131290

9999999

Not Available

O-RING

3130916

$8,39 Unit Price incl. VAT

PLUNGER ASM.

3130593

3130539

$73,49 Unit Price incl. VAT

SPRING

3130538

9999999

Not Available

GUIDE HOLDER

3130199

$52,49 Unit Price incl. VAT

CAP

3130519

9999999

Not Available

E-RING

3130518

9999999

Not Available

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

SEAL

3130515

9999999

Not Available

SCREW

3131475

9999999

Not Available

VALVE THROTTLE 120

3130907

$83,99 Unit Price incl. VAT

JET PILOT #40

3130624

$52,49 Unit Price incl. VAT

NEEDLE VALVE; 1.5

3131359

$136,49 Unit Price incl. VAT

O-RING

3130928

9999999

Not Available

O-RING

3130929

$20,99 Unit Price incl. VAT

COVER

3130930

$68,24 Unit Price incl. VAT

SCREW

3130924

$3,14 Unit Price incl. VAT

SPRING

3130010

$18,89 Unit Price incl. VAT

WASHER

3131296

9999999

Not Available

CABLE ADJUSTER ASSEMBLY

3131295

9999999

Not Available

CLIP

3131242

9999999

Not Available

DRAIN PLUG

3130321

$41,99 Unit Price incl. VAT

O-RING

3130239

9999999

Not Available

MAIN JET#155

3130571

3130570

$16,79 Unit Price incl. VAT

RING

3130919

9999999

Not Available

SCREW

3130935

$10,49 Unit Price incl. VAT

FLOAT BODY ASSEMBLY

3130923

$125,99 Unit Price incl. VAT

SEAL

3130917

$13,64 Unit Price incl. VAT

FLOAT ASSEMBLY

3130921

$125,99 Unit Price incl. VAT

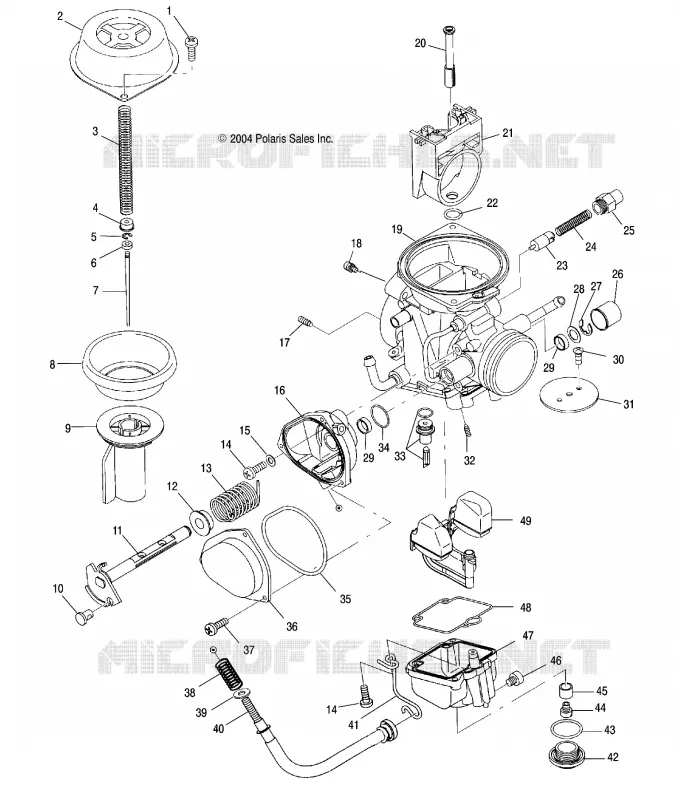

Find the detailed CARBURETOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
