GEARCASE-ASM HR CDS
1341382
9999999
Not Available
1
KNOCK PIPE
3233529
9999999
Not Available
2
GEARCASE-LH
3233632
9999999
Not Available
3
SCREW
3233252
$9,44 Unit Price incl. VAT
4
PIVOT BUSHING
3233527
9999999
Not Available
5
PLUG
3233448
9999999
Not Available
6
WASHER
3233035
9999999
Not Available
7
FORK SHIFT HIGH/REV
3233633
9999999
Not Available
8
BEARING
3233018
$47,24 Unit Price incl. VAT
9
REVERSE SHAFT; 31 TOOTH
3233728
9999999
Not Available
10
NEEDLE BEARING
3233718
$60,89 Unit Price incl. VAT
11
SPROCKET-24T
3233719
9999999
Not Available
12
RING RET-RING EXTERNAL
3233720
9999999
Not Available
13
DOG ENGAGEMENT HIGH/REV
3233721
9999999
Not Available
14
GEAR; 30T
3233722
9999999
Not Available
15
WASHER
3233176
$17,84 Unit Price incl. VAT
16
RING RETAINING
3233177
9999999
Not Available
17
TRIPLE LIP SEAL
3233788
$57,74 Unit Price incl. VAT
18
SCREW
3233539
9999999
Not Available
19
COVER SNORKEL
3233556
9999999
Not Available
20
O-RING
3233555
9999999
Not Available
21
SHIM
3233554
$62,99 Unit Price incl. VAT
22
BEARING
3233020
$80,84 Unit Price incl. VAT
23
GEAR-25T
3233898
9999999
Not Available
24
SHAFT-SNORKEL
3233899
9999999
Not Available
25
GARLOCK BUSHING
3233552
$41,99 Unit Price incl. VAT
26
GEARCASE; RIGHT
3233896
9999999
Not Available
27
VENT
3233037
9999999
Not Available
28
SCREW
3233026
9999999
Not Available
29
CHAIN GUIDE
3233897
$89,24 Unit Price incl. VAT
30
WASHER
3233324
9999999
Not Available
31
OIL FILL PLUG
3233711
9999999
Not Available
32
WASHER THRUST
3233542
9999999
Not Available
33
GARLOCK BUSHING
3233541
9999999
Not Available
34
PINION SHAFT; 13 TOOTH
3233540
9999999
Not Available
35
RETAINING RING
3233306
$9,44 Unit Price incl. VAT
36
COVER-BEARING
3233263
9999999
Not Available
37
SPROCKET 14/22T
3233538
9999999
Not Available
38
RING RETAINING
3233537
9999999
Not Available
39
GEAR 98T HCR.
3233558
9999999
Not Available
40
OUTPUT SHAFT
3233544
9999999
Not Available
41
SPROCKET 16/26T
3233545
9999999
Not Available
42
ROLLER CHAIN
3233546
9999999
Not Available
43
OIL DEFLECTOR
3233043
9999999
Not Available
44
SCREW-TAPPING W/LOCK WASHER
3233747
9999999
Not Available
45
PIN INTERLOCK
3233308
9999999
Not Available
46
SPRING SHIFT.INTERLOCK
3233550
9999999
Not Available
47
SWITCH-H/R ITW
3233635
9999999
Not Available
48
SCREW
3233749
$10,49 Unit Price incl. VAT
49
BRACKET INTERLOCK
3233309
9999999
Not Available
50
SHAFT SHIFT
3233549
9999999
Not Available
51
O-RING
3233548
9999999
Not Available
52
RETAINING RING
3233045
$9,44 Unit Price incl. VAT
53
BELLCRANK
3233547
9999999
Not Available
54
NUT
3233055
3233961
$5,24 Unit Price incl. VAT
55
WASHER
3233054
9999999
Not Available
56
WASHER
3233040
9999999
Not Available
57
SILENT CHAIN
3233036
9999999
Not Available
58
SHAFT INPUT HI/REV.HCR.EXT.
3233536
9999999
Not Available
59
BEARING
3233019
$54,59 Unit Price incl. VAT

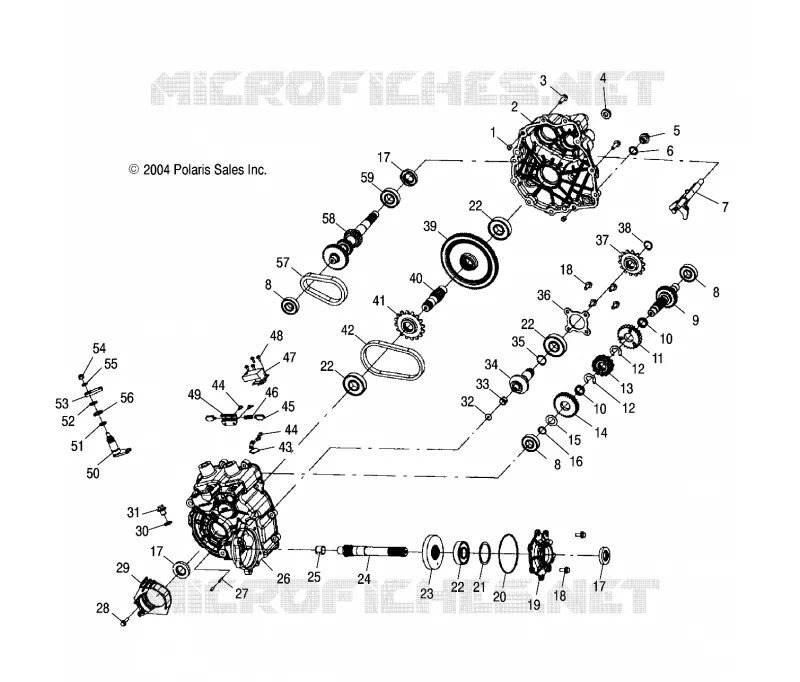

Find the detailed GEARCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
