FRONT SUSPENSION CONTROL ARMS for POLARIS RANGER XP 1000 NORTHSTAR ULTIMATE CREW from 2024

FRONT SUSPENSION CONTROL ARMS

1

WELD-A-ARM FRT LWR LH M.BLK

1025854458

Not Available

2

WELD-A-ARM FRT LWR RH M.BLK

1025855458

Not Available

3

SEALED PIVOT CAP ASSEMBLY; 12 MM

1543612

$10,49 Unit Price incl. VAT

4

PIVOT SHAFT; SHORT

5140555

5144660

$16,79 Unit Price incl. VAT

5

STANDARD BUSHING; SUSPENSION; M12

5452271

$6,29 Unit Price incl. VAT

6

HEX FLANGE SCREW 12 MM X 1.5 MM X 105 MM

7520479

$13,64 Unit Price incl. VAT

7

NUT 12MM X 1.5MM

7547334

$9,44 Unit Price incl. VAT

8

WASHER 13 X 2.5

7556287

$13,64 Unit Price incl. VAT

9

WELD-A-ARM FR UPR LH BLK

1025698458

Not Available

10

WELD-A-ARM FR UPR RH BLK

1025699458

Not Available

11

SHIELD-CV FRONT LH BLK

5459097070

Not Available

12

SHIELD-CV FRONT RH BLK

5459098070

Not Available

13

RIVET

7621472

$2,09 Unit Price incl. VAT

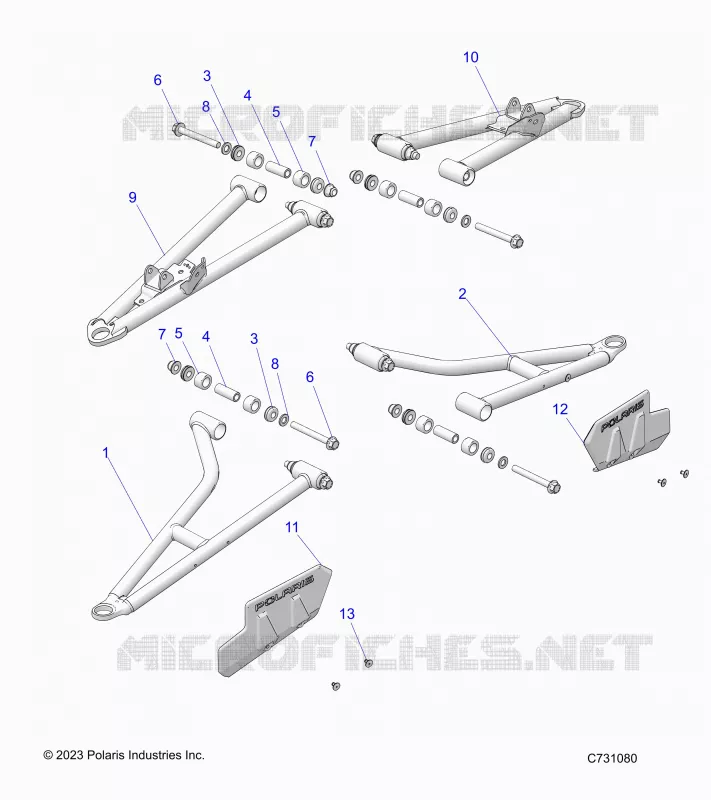

Find the detailed FRONT SUSPENSION CONTROL ARMS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
