DRIVE TRAIN, REAR GEARCASE INTERNALS for POLARIS SCRAMBLER 850 from 2015

DRIVE TRAIN, PROP REAR SHAFT

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, REAR GEARCASE INTERNALS

1

DRIVE ASSEMBLY; REAR; 113.4 MM

1332802

$936,06 Unit Price incl. VAT

2

SOCKET HEAD W/ MAG PLUG 18 MM X 1.5 MM

3234756

$57,74 Unit Price incl. VAT

3

HEX HEAD FLANGE SCREW 8MMX1.25MMX30MM

3234898

$17,84 Unit Price incl. VAT

4

NUT-HEX M16 X 2.0

3234776

$19,94 Unit Price incl. VAT

5

LOCKING WASHER; 17 X 30

3234777

$78,74 Unit Price incl. VAT

6

PIN; DOWEL; 6 X 20

3234330

$13,64 Unit Price incl. VAT

7

RING-RETAINING BEVELED INTERNA

3234158

$41,99 Unit Price incl. VAT

8

SHIM; 3.1 X 2.5

3233581

$73,49 Unit Price incl. VAT

9

NEEDLE BEARING; .75 X 1 X .625

3234799

$27,29 Unit Price incl. VAT

10

BALL BEARING

3233714

9999999

Not Available

11

BALL BEARING

3233268

$88,19 Unit Price incl. VAT

12

MAIN CASE; MACHINED

3234926

$440,99 Unit Price incl. VAT

13

KIT-CASE LH

3234937

$249,89 Unit Price incl. VAT

14

STRAIGHT BEVEL PINION SHAFT; 10 TOOTH

3234798

$309,74 Unit Price incl. VAT

15

GEAR-37T STRAIGHT BEVEL

3234792

2204462

$2 383,49 Unit Price incl. VAT

16

TUBE-VENT 90-1/4 HOSE

3234230

$19,94 Unit Price incl. VAT

17

COUPLER

3234782

$188,99 Unit Price incl. VAT

18

PLUG; M18 X 1.5

3234755

$52,49 Unit Price incl. VAT

19

VITON TRIPLE LIP SEAL; 40 X 70 X 7

3235052

$57,74 Unit Price incl. VAT

20

SEAL-TRIPLE LIP;VITON;40X80X10

3235051

$57,74 Unit Price incl. VAT

21

O-RING 2-023 NITRIL

3234785

$17,84 Unit Price incl. VAT

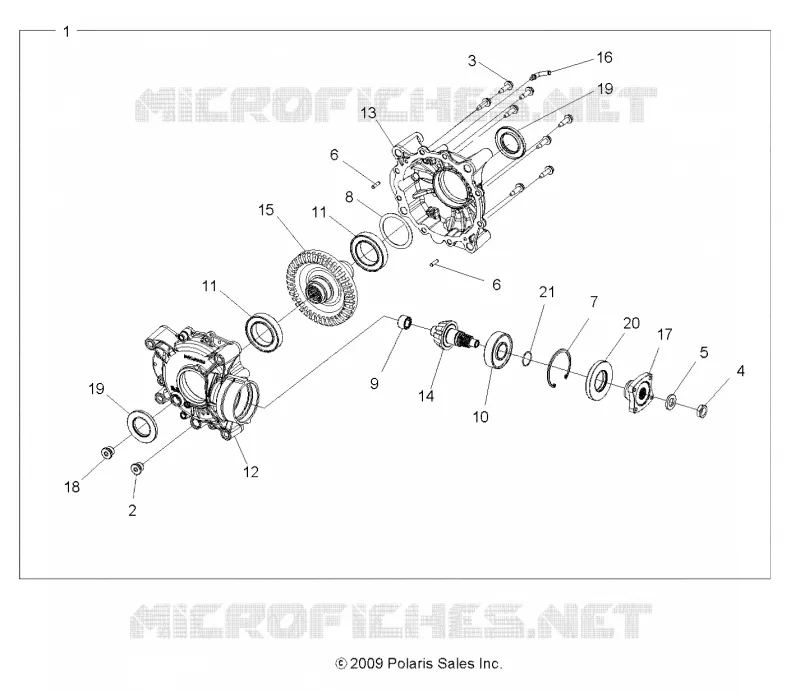

Find the detailed DRIVE TRAIN, REAR GEARCASE INTERNALS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
