CHASSIS, CHASSIS ASM. AND OVER STRUCTURE for POLARIS 850 SWITCHBACK ASSAULT 144 from 2020

CHASSIS, TIE ROD BOOT ASM.

CHASSIS, CHASSIS ASM. AND OVER STRUCTURE

1

FRAME ASSEMBLY; TUBULAR; FRONT; CF

1023852

$593,24 Unit Price incl. VAT

2

SCR-HXFL-M6X1X60 10.9 ZOD P30

7520723

$7,34 Unit Price incl. VAT

3

CAST TUBE SHIM; 31.76 DIA

5633083

$12,59 Unit Price incl. VAT

4

TUBE CAST SPACER

5632923

$13,64 Unit Price incl. VAT

5

CABLE TIE-FIR TREE

7082003

$6,29 Unit Price incl. VAT

6

TUBE FRAME ASSEMBLY; REAR

1023206

9999999

Not Available

7

ASM-REGULATOR MOUNT

1024479

$68,24 Unit Price incl. VAT

8

CROSS BRACE WELD; MEDIUM GLOSS BLACK

1024086067

Not Available

9

CL8.8 OLV-D

7518906

$6,29 Unit Price incl. VAT

10

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

11

BRACE TUBE; LEFT; BLACK

5337391329

Not Available

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$11,54 Unit Price incl. VAT

13

WSHR-FL 5.5X1.0

7556071

$9,44 Unit Price incl. VAT

14

NYLOK NUT

7546601

$2,09 Unit Price incl. VAT

15

HEX FLANGE NUT; 6 MM X 1.0 MM

7547453

$7,34 Unit Price incl. VAT

16

FUEL TANK BRACKET ASSEMBLY; REAR; MT BLK

1021376458

Not Available

17

SCR-SPCL M6X1.0X16 8.8 ZC

7520514

$7,34 Unit Price incl. VAT

18

ASM-TUNNEL 144 INDY RED

1024766293

Not Available

18

ASM-TUNNEL 144 IND SKY BLUE

1024766737

Not Available

18

ASM-TUNNEL 144 GHOST GRAY

1024766728

Not Available

18

ASM-CHASSIS 850 144 INDSKYBLUE

1024836737

Not Available

18

ASM-CHASSIS 850 144 INDY RED

1024836293

Not Available

18

ASM-CHASSIS 850 144 NAT

1024836309

Not Available

18

ASM-CHASSIS 850 144 MDNGHT BLU

1024836485

Not Available

18

ASM-TUNNEL 144 NAT

1024766309

Not Available

18

TUNNEL ASSEMBLY; MEDIUM GLOSS BLACK

1024766067

Not Available

18

ASM-TUNNEL 144 MIDNIGHT BLUE

1024766485

Not Available

18

ASM-CHASSIS 850 144 GHOST GRAY

1024836728

Not Available

18

CHASSIS ASSEMBLY; MEDIUM GLOSS BLACK

1024836067

Not Available

19

CLAMP-CABLE NYLON 5/16

7080960

9999999

Not Available

19

RIVET-4.8MM DIA-1.5-6.0GRIP(4)

7662251

$3,66 Unit Price incl. VAT

20

PAD-2.5 X2.5

5814187

$8,39 Unit Price incl. VAT

21

FOIL-100MM X 200MM

5814124

$13,64 Unit Price incl. VAT

22

MOUNT-LOAD CENTER

5454789

$18,89 Unit Price incl. VAT

23

BRKT-LOAD CENTER

5265340

$9,44 Unit Price incl. VAT

24

RIVET 4.8 MM

7661973

$2,09 Unit Price incl. VAT

25

ASM-STUD PLATE 5MM

1023672

$23,09 Unit Price incl. VAT

26

PAD; 40 X 63.5

5814353

$18,89 Unit Price incl. VAT

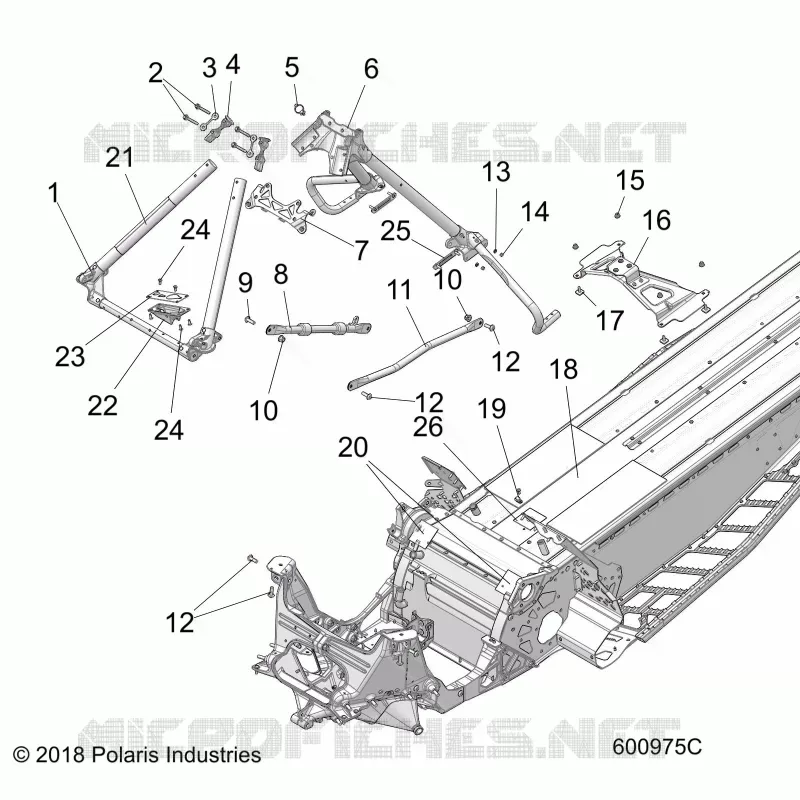

Find the detailed CHASSIS, CHASSIS ASM. AND OVER STRUCTURE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
