1
Engine displacement
ELECTRIC
2
Year
2014
3
Trim
GEM ALL OPTIONS - L14G2/4/6
4
Parts Catalog
TRUNK BACK MOUNT
5
Parts Diagram
Parts Catalog
SCUFF GUARDS
by
LATCH LINKAGE ROD
TRUNK BACK MOUNT
1
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
1
ASSY SWIVEL PK TUB WPS
2634543
9999999
Not Available
1
ASSY TRUNKBACK
2634474
9999999
Not Available
2
ASSY LID-SWIVEL PK WPS
2634544
9999999
Not Available
3
TRUNK MOUNT WELD BACK
1018612
9999999
Not Available
4
STRAP
2685229
9999999
Not Available
5
MT GAS STRUT-PK
5255771
9999999
Not Available
6
SPRT HINGE
5255742
9999999
Not Available
7
SPRT FOAM BK-TRUNKBACK
5813784
9999999
Not Available
8
DECAL LOAD LIMIT-SWIVEL PK
7178172
9999999
Not Available
9
PIN-3/32X1 COTTER ZNC
7662095
9999999
Not Available
10
RIVET-POP ALUM 3/16GRP 3.75-50
7662109
9999999
Not Available
11
RVT BLIND-ALUM TRI-FOLD 3/16
7662053
9999999
Not Available
12
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
13
NUT-10/24 EXTTOOTH LOCKZNC
7547621
9999999
Not Available
14
BLT-.25-20X.44 SHL 31X375HX SS
7519677
9999999
Not Available
15
BOLT-HEX 1/4-20UNCX.75 GRD5 ZN
7519681
9999999
Not Available
16
SCRW-MCHIN CARIG 10-24X3/4 ZN
7519710
9999999
Not Available
17
TUBE CAP
1018960
9999999
Not Available
18
PIN-CLEVIS-9/16X2.5 LG
7662107
9999999
Not Available
19
GAS STRUT
1018637
9999999
Not Available
20
KIT-LATCH SLAM BLACK KEYED
2634771
9999999
Not Available

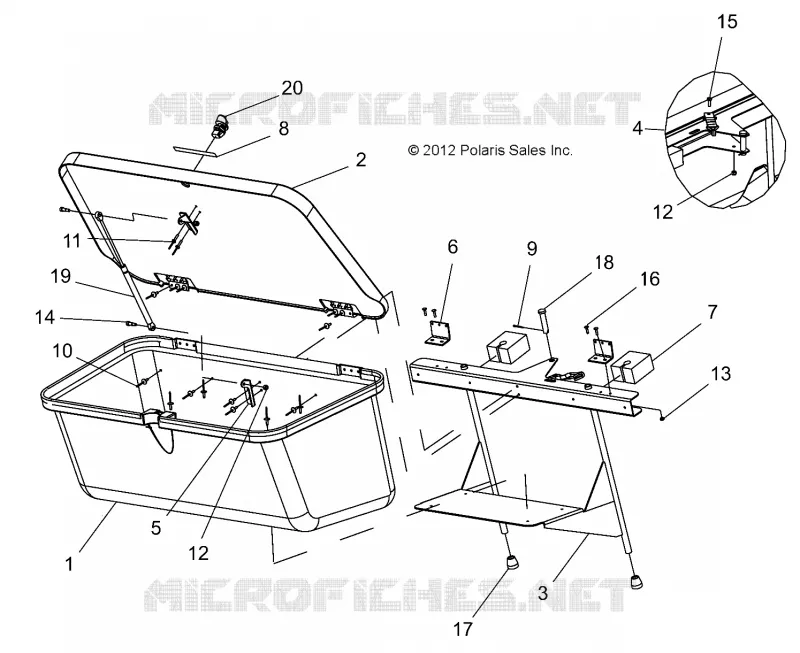

Find the detailed TRUNK BACK MOUNT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
