Engine displacement
925
2
Year
2016
3
Trim
RZR XP TURBO
4
Parts Catalog
REAR SUSPENSION CONTROL ARMS
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION SHOCK MOUNTING
by
SEAT ASM. AND SLIDER
REAR SUSPENSION CONTROL ARMS
1
1
1
1
2
2
2
2
3
4
5
6
7
8
9
9
9
9
10
10
10
10
11
11
11
11
12
13
14
14
14
15
15
1
TRAIL ARM WELD; LEFT; BRIGHT WHITE
1019356133
Not Available
1
TRAIL ARM WELD; LEFT; VELOCITY BLUE
1019356689
Not Available
1
TRAIL ARM WELD; LEFT; COSMIC SUNBURST
1019356446
Not Available
1
TRAILING ARM; LEFT HAND; MATTE BLACK
1019356458
Not Available
2
TRAILING ARM RIGHT SIDE COSMIC SUNBURST
1019357446
Not Available
2
TRAIL ARM WELD; RIGHT; VELOCITY BLUE
1019357689
Not Available
2
WELD-TRL ARM;RH;B.WHITE
1019357133
Not Available
2
TRAILING ARM; RIGHT SIDE; MATTE BLACK
1019357458
Not Available
3
SPHERICAL BEARING; 0.625
3514689
$68,24 Unit Price incl. VAT
4
REDUCER BUSHING; 12 MM
5336751
$12,59 Unit Price incl. VAT
5
SCR-HXFL-M10X1.25X75 10.9 ZOD
7519286
$13,64 Unit Price incl. VAT
6
HEX FLANGE SCREW; 12 MM X 1.5 MM; 60 MM
7519138
$17,84 Unit Price incl. VAT
7
NUT 12MM X 1.5MM
7547334
$9,44 Unit Price incl. VAT
8
RETAINING RING
7710437
$5,76 Unit Price incl. VAT
9
RADIUS ASM ROD BOTTOM COSMIC SUNBURST
1543204446
Not Available
9
RADIUS ROD ASSEMBLY; BOTTOM; BR WHT
1543204133
Not Available
9
RADIUS ROD ASM BOTTOM VELOCITY BLUE
1543204689
Not Available
9
RADIUS ROD ASSEMBLY; BOTTOM; MATTE BLACK
1543204458
Not Available
10
RADIUS ROD ASSEMBLY; MATTE BLACK
1543377458
Not Available
10
RADIUS ROD ASSEMBLY; VELOCITY BLUE
1543377689
Not Available
10
ASM-RADIUS ROD;C.SUN
1543377446
Not Available
10
UPPER ASSEMBLY; RADIUS ROD; BRIGHT WHITE
1543377133
Not Available
11
BOLT BRACE PLATE; REAR; COSMIC SUNBURST
5259640446
Not Available
11
PLATE-REAR BOLT BRACE BLK
5259640458
Not Available
11
PLATE-REAR BOLT BRACE WHITE
5259640133
Not Available
11
REAR PLATE; BOLT BRACE; VELOCITY BLUE
5259640689
Not Available
12
HEX FLANGE SCREW 10MM X 1.25MM X 100MM
7519284
$7,34 Unit Price incl. VAT
13
FLANGE SCREW
7519306
$10,49 Unit Price incl. VAT
14
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
15
WASHER
7556153
$3,66 Unit Price incl. VAT

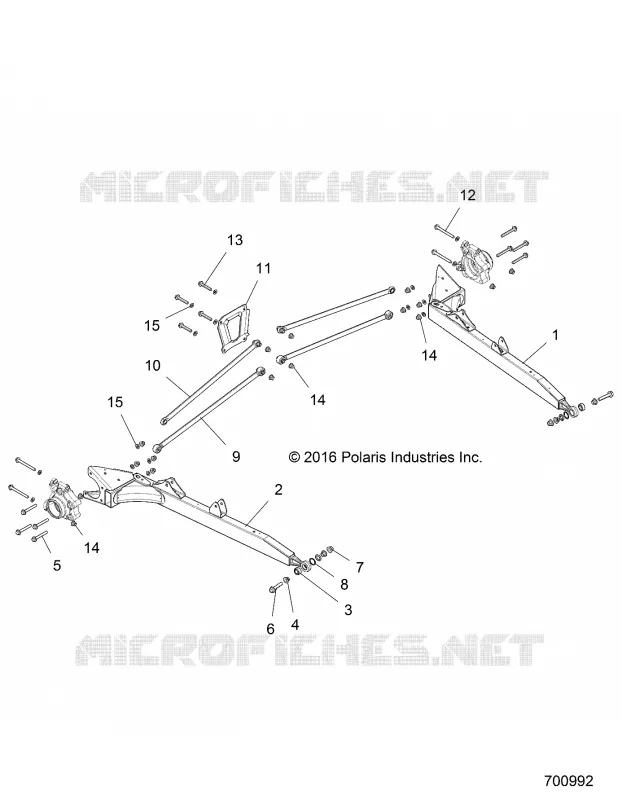

Find the detailed REAR SUSPENSION CONTROL ARMS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
