SUSPENSION, RAIL BEAM LH/RH for POLARIS 850 PATRIOT INDY XCR 128 from 2024

SUSPENSION, RAIL BEAM LH/RH

1

SCR-TXTH-M6X1.0X25 8.8 ZPB

7520133

$6,29 Unit Price incl. VAT

2

RAIL TIP CAP

5452441

$26,24 Unit Price incl. VAT

3

WASHER

7556064

$9,44 Unit Price incl. VAT

4

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

5

NUT NYLOK 10-24 Y

7541925

$1,56 Unit Price incl. VAT

6

WASHER FLAT

7555783

$7,34 Unit Price incl. VAT

7

BUMPER-JOUNCE FTA PROG

5522253

$16,79 Unit Price incl. VAT

8

HEX FLANGE SCREW; 6 MM X 1.0 MM X 70 MM

7519908

7521331-70

$1,56 Unit Price incl. VAT

9

WSHR-M6 OFFSET 2.01 ZOD

7556799

$6,29 Unit Price incl. VAT

10

BEARING; .7874 X 1.6535 X .4724

3515142

$34,64 Unit Price incl. VAT

10

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

10

ASM-WHEEL SPOKED 5.62

1590632

$66,66 Unit Price incl. VAT

11

SCREW

7517510

$9,44 Unit Price incl. VAT

12

CL8.8 OLV-D

7518906

$6,29 Unit Price incl. VAT

13

WHEEL MOUNT BLOCK

5633278

$47,24 Unit Price incl. VAT

14

SCR-TXTH-M8X1.25X20 8.8 BLK

7519997

$7,34 Unit Price incl. VAT

15

ASM-RAIL 128 CC SVC RH INDYRED

1544785293

Not Available

15

ASM-RAIL 128 CC SVC LH INDYRED

1544784293

Not Available

15

ASM-RAIL 128 CC SVC LH BLK

1544784067

Not Available

15

ASM-RAIL 128 CC SVC LH POLBLUE

1544784751

Not Available

15

ASM-RAIL 128 CC SVC LH RADGRN

1544784887

Not Available

15

ASM-RAIL 128 CC SVC RH BLK

1544785067

Not Available

15

ASM-RAIL 128 CC SVC RH RADGRN

1544785887

Not Available

15

ASM-RAIL 128 CC SVC RH POLBLUE

1544785751

Not Available

16

SCR-TXBH-M10X1.5X45 8.8ZOD P30

7520323

$10,49 Unit Price incl. VAT

17

WASHER 10.5 X 24 X 1.2446

7556545

$6,29 Unit Price incl. VAT

18

BUMPER-PIVOT ALUM

5142728

$54,59 Unit Price incl. VAT

19

BLOCK-IDLER BOLT ADJ METRIC

5136570

$62,99 Unit Price incl. VAT

20

SCREW

7515102

$9,44 Unit Price incl. VAT

21

WASHER

7555827

$7,34 Unit Price incl. VAT

22

SPACER-IDLER ADJ ALUM

5141837

$13,64 Unit Price incl. VAT

23

HEX NUT; 10 MM X 1.5 MM

7547707

$7,34 Unit Price incl. VAT

24

HEX SCREW; 10 MM X 1.5 MM X 100 MM

7520083

$23,09 Unit Price incl. VAT

25

BUMPER

5432166

$9,44 Unit Price incl. VAT

26

SCREW

7515199

$2,09 Unit Price incl. VAT

27

PLATE-RAIL REINF CC BLK ANDZD

5144096

$152,24 Unit Price incl. VAT

28

HITCH PIN

7661644

$4,19 Unit Price incl. VAT

29

PIN-CLEVIS 3/16X1 1/4

7661123

$7,34 Unit Price incl. VAT

30

SPRING ROLLER SHAFT

5136687

$19,94 Unit Price incl. VAT

31

SPRING SQUARE GUIDE

5434334

$62,99 Unit Price incl. VAT

32

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$6,29 Unit Price incl. VAT

33

SCREW

7512025

$9,44 Unit Price incl. VAT

34

HI-FAX-129 CC BLK

5522321070

Not Available

35

NYLOK FLANGED NUT

7542153

$3,14 Unit Price incl. VAT

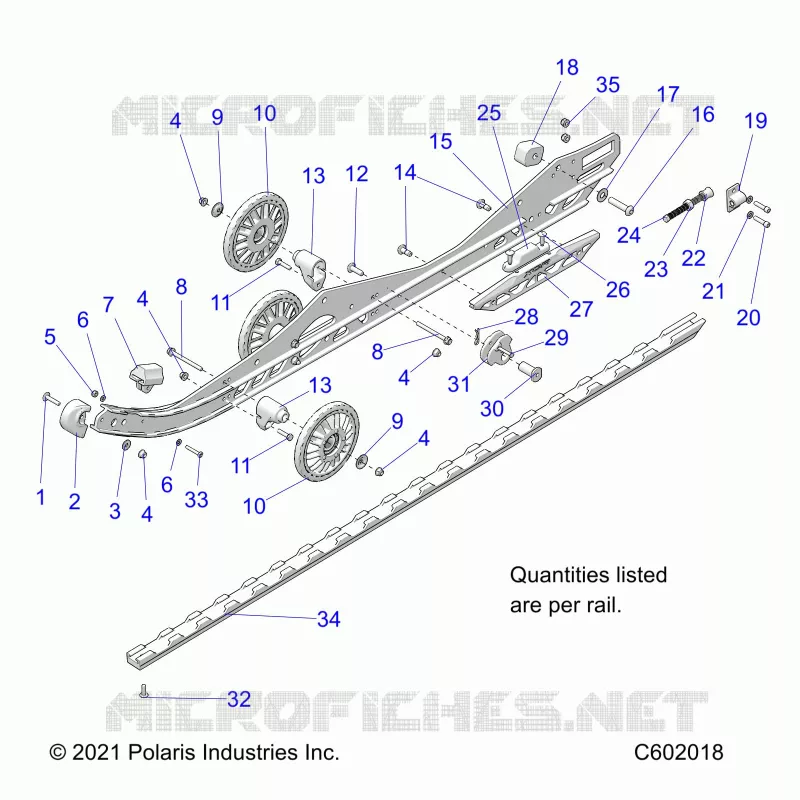

Find the detailed SUSPENSION, RAIL BEAM LH/RH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
