SPORTSMAN 500 EFI - A06MH50AQ
4
Parts Catalog
MASTER CYLINDER, REAR/FOOT PEDAL
5
Parts Diagram
Parts Catalog
REAR CALIPER
by
CONTROLS-THROTTLE ASM/CABLE
MASTER CYLINDER, REAR/FOOT PEDAL
-
-
1
2
2
3
4
4
5
5
6
7
8
9
10
11
12
12
13
14
14
15
16
17
18
18
19
19
20
20
21
22
23
24
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
1
1
1
1
1
2
2
3
4
5
5
6
6
6
7
8
8
9
10
11
12
12
13
14
15
15
16
17
18
18
19
19
20
21
21
22
23
24
-
BRAKE LINE KIT; REAR; RIGHT
2202660
$167,99 Unit Price incl. VAT
-
BRAKE LINE KIT; REAR
2202708
$173,24 Unit Price incl. VAT
1
CALIPER ASSEMBLY
1910690
$488,24 Unit Price incl. VAT
2
SEAL (10)
5410988
9999999
Not Available
3
CALIPER BRAKE LINE; REAR
1910760
$167,99 Unit Price incl. VAT
4
BANJO BOLT; 10 MM X 1.00
1910499
$10,49 Unit Price incl. VAT
5
MASTER CYLINDER BRAKE LINE; REAR
1910765
$167,99 Unit Price incl. VAT
6
CLIP-RETAINING DUAL .250 LINE
7670126
$9,44 Unit Price incl. VAT
7
SCREW 10-24X5/8 (10)
7517756
$2,09 Unit Price incl. VAT
8
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
9
SCREW
7512024
$9,44 Unit Price incl. VAT
10
CLAMP CABLE
7080499
$10,49 Unit Price incl. VAT
11
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
12
NYLOK FLANGED NUT
7542153
$3,14 Unit Price incl. VAT
13
BRAKE RESERVOIR KIT; REAR
1930854
9999999
Not Available
14
BOLT
7512247
9999999
Not Available
15
HOSE RESERVOIR 1/4ID 22IN.
1910315
1911267-790
$23,09 Unit Price incl. VAT
16
ASM-MASTER CYLINDERBRAKEREAR
1910790
1911113
$325,49 Unit Price incl. VAT
17
TORSION SPRING; BRAKE
7041750
$16,79 Unit Price incl. VAT
18
WASHER
7555919
$7,34 Unit Price incl. VAT
19
PEDAL PIVOT BUSHING
5433189
$7,34 Unit Price incl. VAT
20
BRAKE PEDAL BLK
1910814067
Not Available
20
WELD-BRAKE PEDAL 400/500SP BLK
1911047067
Not Available
21
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
22
CAP SCREW
7512365
$2,09 Unit Price incl. VAT
23
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
24
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT

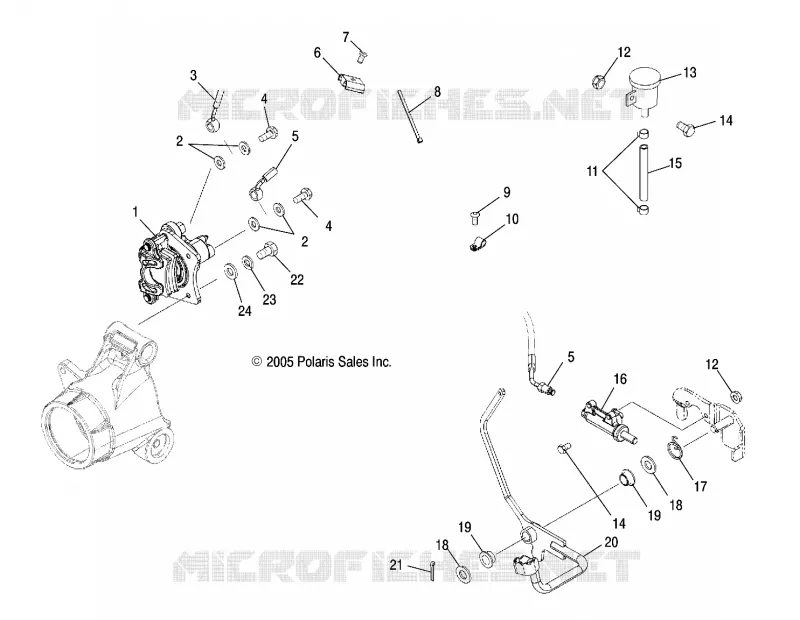

Find the detailed MASTER CYLINDER, REAR/FOOT PEDAL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
