Engine displacement
900
2
Year
2013
3
Trim
RANGER CREW 900 DIESEL - R13WH90DG
4
Parts Catalog
DRIVE TRAIN, REAR GEARCASE
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, GEAR SELECTOR
by
DRIVE TRAIN, REAR GEARCASE MOUNTING
DRIVE TRAIN, REAR GEARCASE
-
-
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
27
28
29
25
31
32
32
33
34
34
35
36
37
38
39
-
TRANSMISSION HOUSING KIT
3235307
9999999
Not Available
-
GEARCASE ASSEMBLY; REAR
1332927
9999999
Not Available
1
HYPOID GEAR ASSEMBLY
1332714
9999999
Not Available
2
CARRIER HOUSING
2204418
9999999
Not Available
3
CARRIER COVER
2204377
9999999
Not Available
4
DIFFERENTIAL HALF CASE
5134901
9999999
Not Available
5
COVER-HALF DIFF CASE 026DC104
5134906
9999999
Not Available
6
SIDE GEAR DIFFERENTIAL
5134904
9999999
Not Available
7
GEAR-PINION MATE DIFF 51451
5134903
9999999
Not Available
8
WASHER-THRUST PINION 34096
7556347
9999999
Not Available
9
PIN-CROSS DIFF 026DP101
5134902
9999999
Not Available
10
PIN-ROLL DIFF 500596-15
7661164
9999999
Not Available
11
BOLT-HEX 41221
7518173
9999999
Not Available
12
SHIM DIFFERENTIAL KIT
2875333
9999999
Not Available
13
WASHER-THRST SIDE GEAR026HS108
7556346
9999999
Not Available
14
DIFFERENTIAL CONE BEARING
3514434
9999999
Not Available
15
DIFFERENTIAL BEARING
3514433
9999999
Not Available
16
BEARING ROLLER
2203500
$74,01 Unit Price incl. VAT
17
BEARING CUP
2203881
9999999
Not Available
18
PLUG-FILL/CHECK
5137538
9999999
Not Available
19
CLUTCH GEAR
5137196
$278,24 Unit Price incl. VAT
20
O-RING HOUSING HALVES
5412338
9999999
Not Available
21
PIN-LOCK ASM.
2203503
9999999
Not Available
22
TUBE VENT
7052334
9999999
Not Available
23
BOLT-HEX FLANGED 026HM103
7518172
9999999
Not Available
24
DIFFERENTIAL LOCK SOLENOID
2411634
9999999
Not Available
25
SPACER KIT
2203505
9999999
Not Available
26
PINION CUP BEARING
3514431
9999999
Not Available
27
PINION CONE BEARING
3514432
$89,24 Unit Price incl. VAT
28
PINION NUT
7547433
9999999
Not Available
29
OIL PINION SEAL
3610102
$57,74 Unit Price incl. VAT
30
SPACER KIT
2203505
9999999
Not Available
31
PIN LOCK BUSHING
2203507
9999999
Not Available
32
RETURN SPRING; SHIFT
7042210
9999999
Not Available
33
DRAIN PLUG
5133731
$20,99 Unit Price incl. VAT
34
OIL SHAFT SEAL
3610146
$25,19 Unit Price incl. VAT
35
PLUG
7052523
9999999
Not Available
36
SHIFT YOKE
5133759
$272,99 Unit Price incl. VAT
37
LEVER-SHIFT 026SV101
5133760
9999999
Not Available
38
SPRING-LEVER SHIFT 026HE100
7042209
9999999
Not Available
39
PINION SPACER
2203510
9999999
Not Available

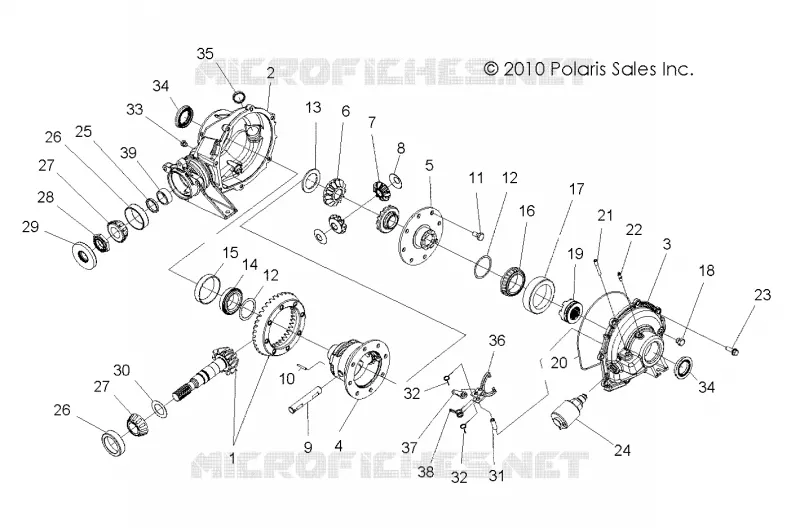

Find the detailed DRIVE TRAIN, REAR GEARCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
