ENGINE, COOLING SYSTEM for POLARIS RANGER 902 DIESEL EU / TRACTOR / APLA from 2021

ENGINE, CAMSHAFT AND IDLE GEAR SHAFT

ENGINE, COOLING SYSTEM

1

ASM-RADIATOR

1241340

$1 349,24 Unit Price incl. VAT

2

CAP

1240694

$73,49 Unit Price incl. VAT

3

CORE RADIATOR ASSEMBLY

1240745

$892,49 Unit Price incl. VAT

4

RADIATOR FAN ASSEMBLY

2414725

$377,99 Unit Price incl. VAT

5

BOLT 6 MM X 15 MM

7519585

$17,84 Unit Price incl. VAT

6

OVERFLOW CAP

5430743

$10,49 Unit Price incl. VAT

7

CAP PLUG9X(GRN) FLEX TEMP(10)

5433774

$10,49 Unit Price incl. VAT

8

SURGE TANK

5439202

$178,49 Unit Price incl. VAT

9

GASKET

5810279

$4,19 Unit Price incl. VAT

10

FUEL LINE; 95 CM

845000395

Not Available

11

GROMMET

7052028

$11,54 Unit Price incl. VAT

12

COOLANT TUBE; 1 IN

5140928

$104,99 Unit Price incl. VAT

13

RADIATOR MOUNT BRACKET; LOWER; BLACK

5263784329

Not Available

14

CLIP-COOLANT ROUTING

5453767

$10,49 Unit Price incl. VAT

15

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

16

SCR-M6X1X40 TR/TX-M

7519001

$7,34 Unit Price incl. VAT

17

UPPER HOSE; RAD

5416137

$83,99 Unit Price incl. VAT

18

HOSE-ENG OUT DSL

5417080

Not Available

19

HOSE PAD; LOWER

5416138

$68,24 Unit Price incl. VAT

20

HOSE-ENG IN DSL

5416874

Not Available

21

SPRINGBAND CLAMP; 35/12

7080844

$19,94 Unit Price incl. VAT

22

RADIATOR MOUNT BRACKET; BLACK

5263654329

Not Available

23

HOSE CLAMP

7080614

$13,64 Unit Price incl. VAT

24

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

25

SCREW #14 X 1 HI/LO

7518158

$9,44 Unit Price incl. VAT

26

TUBE-COOLANT 1 IN UPPER

5142861

$104,99 Unit Price incl. VAT

27

SCREW

7512026

$2,09 Unit Price incl. VAT

28

STRAP-CABLE TIEW/EDGECLIP3-6MM

7081824

$26,24 Unit Price incl. VAT

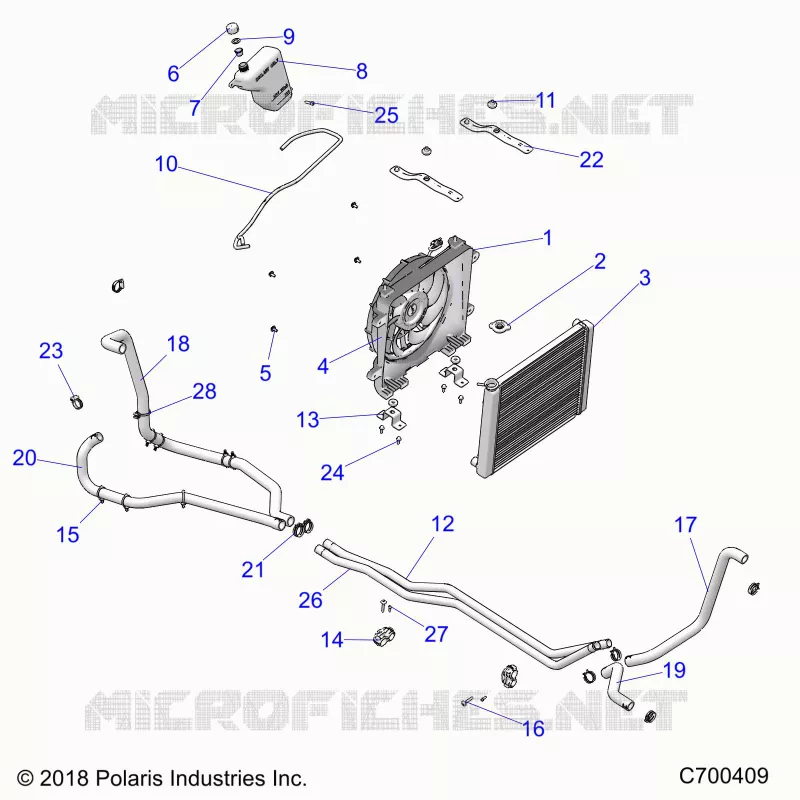

Find the detailed ENGINE, COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
