STEERING for POLARIS ACE 900 EPS XC from 2019

STEERING

1

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

2

OUTER TIE ROD

7061189

$136,49 Unit Price incl. VAT

3

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

4

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

5

BOOT CLAMP; SMALL

7080978

$4,19 Unit Price incl. VAT

6

DRIVER SIDE BOOT RACK

5412012

$115,49 Unit Price incl. VAT

7

BOOT CLAMP; LARGE

7080979

$10,49 Unit Price incl. VAT

8

SHOULDER BOLT; 8-16 MM; 6 MM X 1.0 MM

7518786

$4,19 Unit Price incl. VAT

9

HEX FLANGE SCREW 10 MM X 1.50 MM X 35 MM

7518644

$9,44 Unit Price incl. VAT

10

BUSHING-TILT STEERING

5439154

9999999

Not Available

11

STEERING BUSHING

7556675

$24,14 Unit Price incl. VAT

12

HEX FLANGE SCREW; 8 MM X 1.25 MM X 80 MM

7519217

$3,14 Unit Price incl. VAT

13

STEERING BEARING

3514686

$16,79 Unit Price incl. VAT

14

STEERING WHEEL

1824014

2209704

$248,84 Unit Price incl. VAT

15

NUT-HEX-M16X2 8 ZC NYL

7547506

$7,34 Unit Price incl. VAT

16

STEERING WHEEL CAP; INDY RED

5450255293

Not Available

17

ASM-PIVOT TUBE;M.BLK

1022896458

Not Available

18

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

19

EPS STEERING SHAFT; UPPER

1824286

9999999

Not Available

20

FLAT WASHER

7555960

$7,34 Unit Price incl. VAT

21

NUT-NY INS;M10X1.5;HEX;ZINC;YW

7547385

$2,09 Unit Price incl. VAT

22

NYLOK NUT

7546703

$2,09 Unit Price incl. VAT

23

DRIVER SIDE BOOT RACK

5412012

$115,49 Unit Price incl. VAT

24

HEX FLANGE SCREW 10 MM X 1.25 MM X 75 MM

7519854

$31,49 Unit Price incl. VAT

25

WASHER

7555919

$7,34 Unit Price incl. VAT

26

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

27

COTTER PIN

7661203

$2,09 Unit Price incl. VAT

28

STEERING GEARBOX ASSEMBLY; 17T

1824539

9999999

Not Available

29

SHOCK ASSEMBLY; TILT STEERING; SHORT

7044699

$152,24 Unit Price incl. VAT

30

SCR-SHS-M10X1.5-M12X16 RIE

7519355

$19,94 Unit Price incl. VAT

31

NUT-HH M10X1.5 NYLOC ZOD

7547442

$7,34 Unit Price incl. VAT

32

WELD-BRKT BASE;EPS;E-COAT

1020912329

Not Available

33

BRKT-EPS LH E-COAT

5260034329

Not Available

34

EPS STEERING SHAFT; LOWER; 17 TOOTH

1824549

9999999

Not Available

35

ASM-POWER STEERING;G2;ACE

2414684

9999999

Not Available

36

HEX HEAD FLANGE BOLT 8MM X 20MM -1.25MM

7518450

$3,14 Unit Price incl. VAT

37

HEX FLANGE BOLT OLIVE 10MMX1.25MMX20MM

7518558

$7,34 Unit Price incl. VAT

38

SCR-M8X1.25X75 8.8 HX/FL ZOD

7518955

$6,29 Unit Price incl. VAT

39

HEX FLANGE SCREW; 8 MM X 1.25 MM X 35 MM

7519052

$3,14 Unit Price incl. VAT

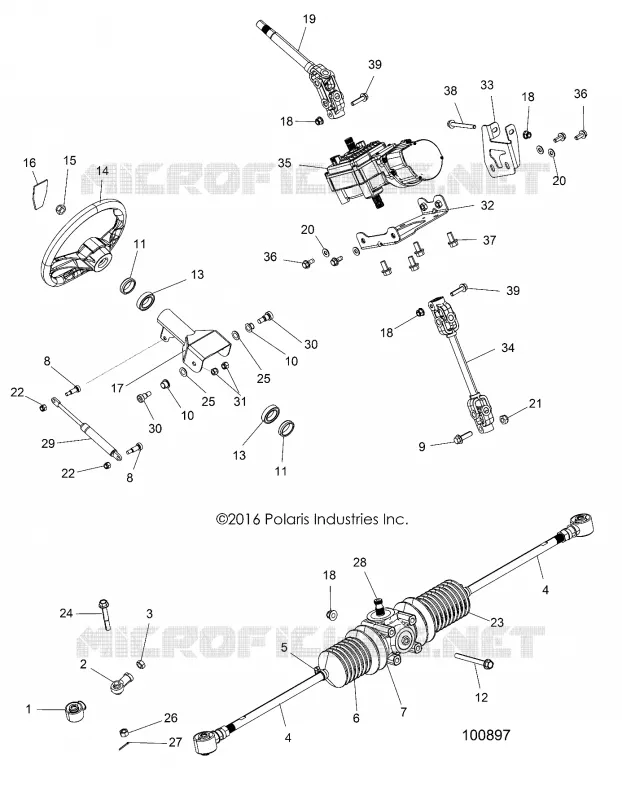

Find the detailed STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
