SUSPENSION, RAIL MOUNTING for POLARIS 750 TURBO IQ from 2011

SUSPENSION, RAIL MOUNTING

1

SCR-M6X1.0X30 8.8 HXFL ZOD

7518993

$4,19 Unit Price incl. VAT

2

CAP-RAIL TIP;UHMW

5435527

9999999

Not Available

3

WASHER

7556064

$9,44 Unit Price incl. VAT

4

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

5

SCREW

7510504

$10,49 Unit Price incl. VAT

6

WASHER FLAT

7555783

$7,34 Unit Price incl. VAT

7

BUMPER JOUNCE FRONT

5521499

$16,79 Unit Price incl. VAT

8

NUT NYLOK 10-24 Y

7541925

$1,56 Unit Price incl. VAT

9

NYLOK NUT

7547263

$6,29 Unit Price incl. VAT

10

RAIL REINFORCER BRACKET

5248414

$68,24 Unit Price incl. VAT

11

BUMPER LINER

5432946

$19,94 Unit Price incl. VAT

12

JOUNCE BUMPER; REAR

5521498

$16,79 Unit Price incl. VAT

13

BOLT(10)

7515537

$15,74 Unit Price incl. VAT

14

PIVOT ARM BUMPER

5410925

$26,24 Unit Price incl. VAT

15

BUMPER MOUNT

5131113

$52,49 Unit Price incl. VAT

16

BLOCK-IDLER BOLT ADJ.

5130530

$62,99 Unit Price incl. VAT

17

ASM-RAIL IQ 121 BASIC RH

1542791

$834,74 Unit Price incl. VAT

17

ASM-RAIL IQ 121 BASIC LH

1542790

$913,49 Unit Price incl. VAT

18

RIVET

7621501

$4,19 Unit Price incl. VAT

19

NUT

7542404

$3,14 Unit Price incl. VAT

20

SCREW

7517227

$13,64 Unit Price incl. VAT

21

SCR-3/8-24X1.1 SHLDR HXSOC

7518359

9999999

Not Available

22

SPRING SQUARE ROLLER

5432982

$19,94 Unit Price incl. VAT

23

WASHER

7555983

7555893

$1,56 Unit Price incl. VAT

24

RIVET(10)

7661845

$2,09 Unit Price incl. VAT

25

BASIC SERVICE SLIDER

5521632

$68,24 Unit Price incl. VAT

26

SCREW

7515199

$2,09 Unit Price incl. VAT

27

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

28

WHEEL MOUNT BLOCK

5631446

$47,24 Unit Price incl. VAT

29

BOLT

7515317

$9,44 Unit Price incl. VAT

30

BEARING-.7874X1.6535X.4724 NTN

3514384

3515142

$34,64 Unit Price incl. VAT

30

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

30

WHEEL ASSEMBLY SCROLLED; GLOSS BLACK

1590387070

Not Available

31

WASHER-SPRING CON 5/16X.090-Y

7556179

$11,54 Unit Price incl. VAT

32

SCREW

7515346

$10,49 Unit Price incl. VAT

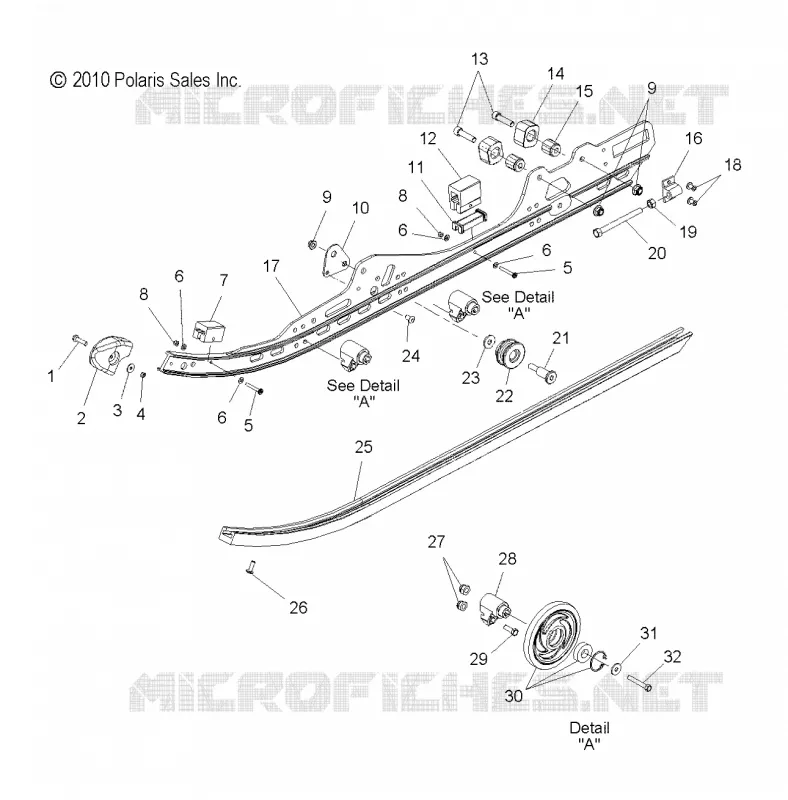

Find the detailed SUSPENSION, RAIL MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
