1
Engine displacement
500
2
Year
1997
3
Trim
EURO 500 SKS - E972564
4
Parts Catalog

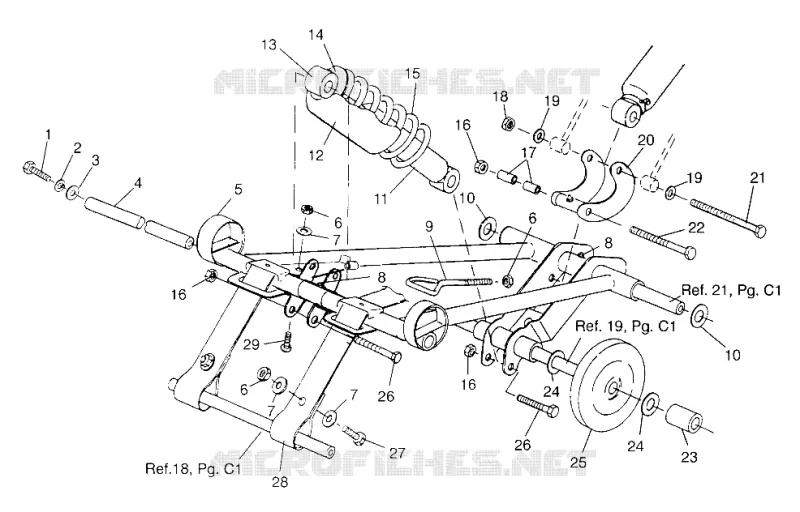

FRONT TORQUE ARM (500/RMK) 500 0972764, EUROPEAN 500 E972764 AND 500 RMK 09 (4938393839C004)
5
Parts Diagram
Parts Catalog
RAIL MOUNTING (SUSPENSION) 500 0972764, EUROPEAN 500 E972764, 500 SKS 0972 (4938393839C002)
by
DRIVEN CLUTCH 500 0972764, EUROPEAN 500 E972764, 500 SKS 0972564, EUROPEA (4938393839C009)
FRONT TORQUE ARM (500/RMK) 500 0972764, EUROPEAN 500 E972764 AND 500 RMK 09 (4938393839C004)
1
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
2
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
3
WASHER
7555983
7555893
$1,56 Unit Price incl. VAT
4
SHAFT MTG REAR
5020570
9999999
Not Available
5
ARM F.TORQUE X-10
1541140067
Not Available
6
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
7
WASHER
7555716
$3,14 Unit Price incl. VAT
8
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
9
EYE BOLT
7010050
9999999
Not Available
10
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
11
RETAINER SPRING
5241276067
Not Available
12
SPRING SHIELD
5430671
9999999
Not Available
13
SHOCK FR.TRACK
7041430
9999999
Not Available
14
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
15
COMPRESSION SPRING MEDIUM GLOSS BLACK
7041253067
Not Available
16
NUT LOCK
7542403
9999999
Not Available
17
PIVOT TUBE BUSHING
5020561
9999999
Not Available
17
SPACER
5333028
9999999
Not Available
18
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
19
WAVE SPRING WASHER
7555795
$2,09 Unit Price incl. VAT
20
ARM SHOCK
1540942067
Not Available
21
BOLT
7515472
$4,19 Unit Price incl. VAT
22
BOLT
7515438
$9,44 Unit Price incl. VAT
23
SPACER OUTER
5332784
9999999
Not Available
24
BUSHING
7556301
$6,29 Unit Price incl. VAT
25
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
26
SCREW
7515415
9999999
Not Available
27
BOLT
7515307
$7,34 Unit Price incl. VAT
28
STRAP LIMITER FRONT
5411045
9999999
Not Available
29
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT

Find the detailed FRONT TORQUE ARM (500/RMK) 500 0972764, EUROPEAN 500 E972764 AND 500 RMK 09 (4938393839C004) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
