REAR SUSPENSION AND TRACK for POLARIS 550 INDY VOYAGER from 2014

REAR SUSPENSION AND TRACK

1

HEX FLANGE SCREW; 10 MM X 1.5 MM 35 MM

7518957

$6,29 Unit Price incl. VAT

2

HEX FLANGE SCREW; 10 MM X 1.5 MM X 40

7519216

$9,44 Unit Price incl. VAT

3

WASHER

7556042

7555806

$1,56 Unit Price incl. VAT

4

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

5

WASHER 10.5 X 24 X 1.2446

7556545

$6,29 Unit Price incl. VAT

6

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

7

SPRING WASHER; .406 X 1.25 X .125

7556490

$9,44 Unit Price incl. VAT

8

IDLER SPACER

5436496

$11,54 Unit Price incl. VAT

9

SPACER; IDLER

5432535

$20,99 Unit Price incl. VAT

10

BUSHING

7555918

$3,14 Unit Price incl. VAT

11

BEARING-.7874X1.6535X.4724 NTN

3514384

3515142

$34,64 Unit Price incl. VAT

11

ASM-WHEEL WEB 8.50 6004 BLK

1590499070

Not Available

11

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

12

SPACER IDLER CENTER

5333283

$27,29 Unit Price incl. VAT

13

IDLER SHAFT; 10 MM X 1.5 MM

5137224

$52,49 Unit Price incl. VAT

14

SCR-HXFL M6X1.0X150 8.8 ZOD

7519201

$36,74 Unit Price incl. VAT

15

CROSS SHAFT; RMK

5137418

$62,99 Unit Price incl. VAT

16

PIVOT ARM WELD; REAR; BLACK

1542906329

Not Available

17

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

18

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

19

HEX FLANGE SCREW 10 MM X 1.5 MM X 250 MM

7519198

$41,99 Unit Price incl. VAT

20

HEX FLANGE SCREW 10MM X 1.25MM X 250MM

7519327

$36,74 Unit Price incl. VAT

21

WASHER

7555832

$4,19 Unit Price incl. VAT

22

SHOCK CENTERING SPACER

5336325

$27,29 Unit Price incl. VAT

23

WSHR-.719X1.250X.065-Y

7556210

$7,34 Unit Price incl. VAT

24

SHAFT 17.45 X 214.77

5137312

$52,49 Unit Price incl. VAT

25

SFT-M10X1.5IDX17.47ODX220.1 LG

5136572

$52,49 Unit Price incl. VAT

26

CLIP-TRACK FLAT 012-0107 (10

5251273

$18,89 Unit Price incl. VAT

26

COBRA TRACK 15 IN X 144 IN

5414013

$1 249,49 Unit Price incl. VAT

26

LONG GUIDE TRACK CLIP

5251274

$13,64 Unit Price incl. VAT

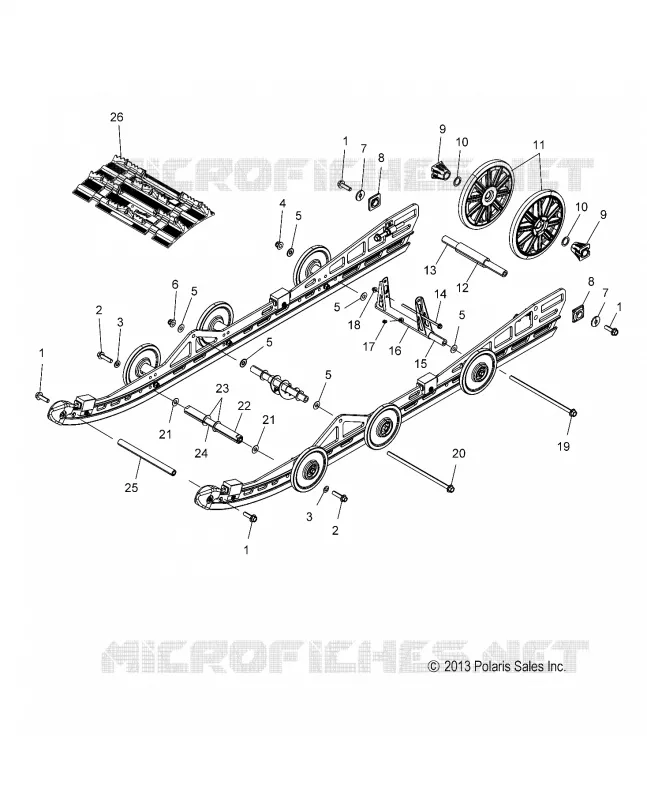

Find the detailed REAR SUSPENSION AND TRACK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
