Engine displacement
1000
2
Year
2015
3
Trim
RZR XP 4 1000
4
Parts Catalog
REAR RACK AND FENDERS
5
Parts Diagram
Parts Catalog
FRONT BUMPER
by
SEAT ASM. AND SLIDER
REAR RACK AND FENDERS
1
1
1
2
2
2
3
4
5
6
6
7
7
8
8
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
21
22
23
24
25
26
27
27
28
29
30
31
1
2
3
4
5
6
1
FENDER ASM LEFT SIDE WHITE LIGHTNING
2635123599
Not Available
1
FENDER ASSEMBLY; REAR; LEFT
2635123649
Not Available
1
FENDER ASSEMBLY; REAR; LEFT; VOODOO BLUE
2635123619
Not Available
2
FENDER CLIP ASM REAR RIGHT V BLUE
2635126619
Not Available
2
FENDER ASSEMBLY; REAR; RIGHT
2635126649
Not Available
2
FENDER REAR RIGHT SIDE WHITE LIGHTNING
2635126599
Not Available
3
DASH TRIM CLIP
7519806
$7,34 Unit Price incl. VAT
4
REAR LEFT FENDER FLARE; GLOSS BLACK
5439762070
Not Available
5
REAR RIGHT FENDER FLARE; GLOSS BLACK
5439763070
Not Available
6
BOLT
7519650
$7,34 Unit Price incl. VAT
7
U-TYPE NUT; M6-1.0
7547674
$2,09 Unit Price incl. VAT
8
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
9
REAR FASCIA ASM GLOSS BLK INCLUDES DECAL
2635073070
Not Available
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
LEFT HAND FROG SKINZ BEZEL ASSEMBLY
2635658
$204,74 Unit Price incl. VAT
12
SCR-TXPH-#14X3/4 HI/LO CLR
7519290
$7,34 Unit Price incl. VAT
13
PLUNGER TENSIONER
********
Not Available
14
INTAKE COVER WITH MESH
2635659
$204,74 Unit Price incl. VAT
15
BOX PLUNGER LATCH
5139009
$25,19 Unit Price incl. VAT
16
FASCIA BRACKET; REAR; BLACK
5257790329
Not Available
17
BOX-REAR LH BLK
5451778070
Not Available
18
BOX-REAR RH BLK
5450238070
Not Available
19
PANEL-SHOCK RESERVOIR LH BLK
5450519070
Not Available
19
SHOCK PANEL RESERVOIR; LEFT; GLOSS BLACK
5452043070
Not Available
20
PANEL-SHOCK RESERVOIR RH BLK
5452044070
Not Available
20
SHOCK PANEL RESERVOIR RIGHT GLOSS BLACK
5450520070
Not Available
21
KNOB 6 MM X 1.0 MM
7081619
$29,39 Unit Price incl. VAT
22
SCREW
7512026
$2,09 Unit Price incl. VAT
23
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
24
FLAT WASHER
7555859
$2,09 Unit Price incl. VAT
25
WASHER NYLON
7555916
$3,14 Unit Price incl. VAT
26
BOLT RETAINER; 1/4 -20
7670154
$2,09 Unit Price incl. VAT
27
ASM-PANEL-BOX ACCESS
2635163
$204,74 Unit Price incl. VAT
27
ASM-PANEL-BOX ACCESS
2635818
9999999
Not Available
28
SEAT LATCH LEVER
5437121
$9,44 Unit Price incl. VAT
29
PANEL-BOX ACCESS BLK
5450499070
Not Available
30
COVER PLATE LATCH; GLOSS BLACK
5450510070
Not Available
31
SEAT LATCH SPRING
7081466
$57,74 Unit Price incl. VAT

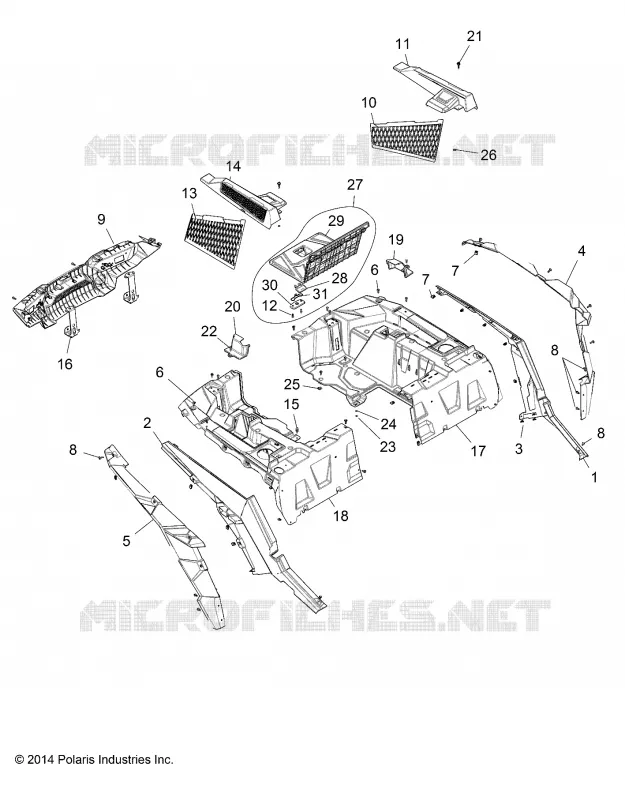

Find the detailed REAR RACK AND FENDERS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
