DRIVE TRAIN, PRIMARY CLUTCH for POLARIS 800 ASSAULT RMK 146 from 2009

DRIVE TRAIN, PRIMARY CLUTCH

1

SCR-1/4-20X2 1/4 HX WH GR5-Y

7518349

$2,09 Unit Price incl. VAT

2

COVER BEARING

3514347

$73,49 Unit Price incl. VAT

3

RETAINING RING COVER

7710417

$2,09 Unit Price incl. VAT

4

SPRING-DRIVE CLUTCH HP 140/330

7043342

7043829

$115,49 Unit Price incl. VAT

5

GUIDE BUTTON

5430445

$11,54 Unit Price incl. VAT

6

WASHER(10)

5430945

5438247

$3,14 Unit Price incl. VAT

7

ROLLER AND BUSHING ASSEMBLY

1321622

$62,99 Unit Price incl. VAT

8

ROLLER PIN; 1 IN

5133079

$11,54 Unit Price incl. VAT

9

DRIVE CLUTCH KIT

2200387

$47,24 Unit Price incl. VAT

10

BUSHING WEIGHT ASSEMBLY(3)

1321586

$73,49 Unit Price incl. VAT

11

FLEXLOC NUT(10)

7541906

$6,29 Unit Price incl. VAT

12

HARDENED WEIGHT PIN

7515105

$26,24 Unit Price incl. VAT

13

SLEEVE BEARING

3514641

$34,64 Unit Price incl. VAT

14

INSERT MOVEABLE

5010188

$13,64 Unit Price incl. VAT

15

SPACER .130 PM

5134018

5138705

$26,24 Unit Price incl. VAT

16

SPACER .020

5210752

$3,14 Unit Price incl. VAT

16

SPACER .025

5242981

$7,34 Unit Price incl. VAT

16

SPACER .050

5210754

$6,29 Unit Price incl. VAT

16

SPACER .032

5210753

$4,19 Unit Price incl. VAT

17

JAM NUT

5020425

$41,99 Unit Price incl. VAT

18

BOLT M14 THREAD X1.5 PITCHX215MM LONG

7518412

$52,49 Unit Price incl. VAT

19

WASHER-.560X1.10X.110 Y

7556336

$26,24 Unit Price incl. VAT

20

CLUTCH WASHER; RETAINER

5132441

$41,99 Unit Price incl. VAT

21

DRIVE CLUTCH ASSEMBLY

1322796

$1 086,74 Unit Price incl. VAT

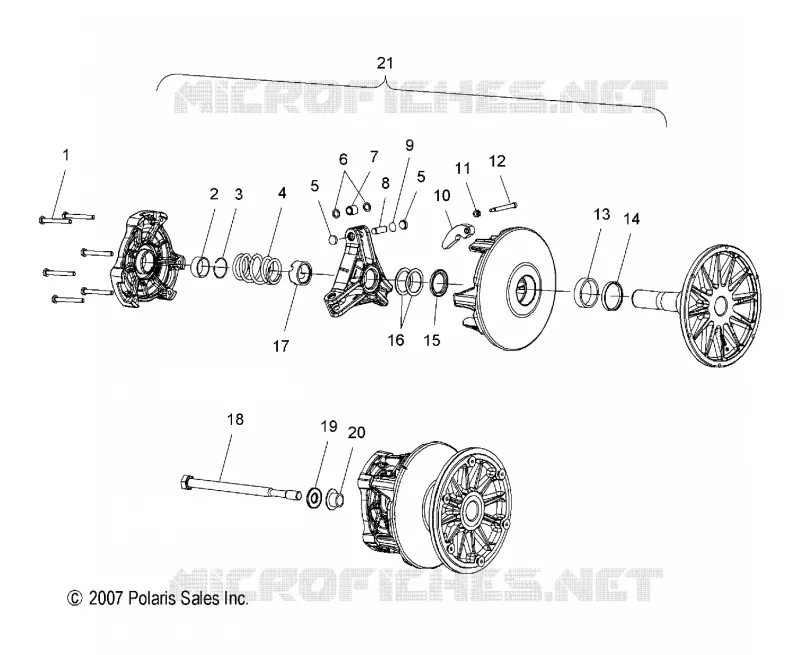

Find the detailed DRIVE TRAIN, PRIMARY CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
