1
Engine displacement
1000
2
Year
2019
3
Trim
RZR XP 4 TURBO S VELOCITY
4
Parts Catalog
DRIVE TRAIN, CLUTCH COVER AND DUCTING
5
Parts Diagram
Parts Catalog
CHASSIS, MAIN FRAME AND SKID PLATES
by
DRIVE TRAIN, HALF SHAFT, REAR
DRIVE TRAIN, CLUTCH COVER AND DUCTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
O-RING 0.489 X 0.629 X 0.070
5416606
$6,81 Unit Price incl. VAT
3
DRAIN PLUG; 9/16-18
5454915
$10,49 Unit Price incl. VAT
4
DECAL-BELT CAUTION/CHECK
7177469
Not Available
5
HEX HEAD FLANGE BOLT 10MM X 1.5MM X115MM
7518526
$5,76 Unit Price incl. VAT
6
HEX FLANGE SCREW 12MM X 1.75MM X 245MM
7518970
$41,99 Unit Price incl. VAT
7
SCR-TXBH-M10X1.5X45 8.8ZOD P30
7520323
$10,49 Unit Price incl. VAT
8
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
9
HEX FLANGE NUT; 12 MM X 1.75 MM
7547441
$9,44 Unit Price incl. VAT
10
WSHR FLAT INN DIA 10.5 OUT DIA
7556155
$9,44 Unit Price incl. VAT
11
CLUTCH COVER SEAL; OUTER
5416207
$68,24 Unit Price incl. VAT
12
SCREW 6 MM X 1.0 MM X 25 MM
7519754
$7,34 Unit Price incl. VAT
13
INLET COVER
5416440
$68,24 Unit Price incl. VAT
14
INLET CLUTCH DUCT
5416743
$377,99 Unit Price incl. VAT
15
BELT SCREEEN BRACKET
5266524
9999999
Not Available
16
CLUTCH HOSE AIR OUTLET
5416489
$136,49 Unit Price incl. VAT
17
INLET CLUTCH DUCT SEAL PLATE
5633909
$68,24 Unit Price incl. VAT
18
OUTLET DUCT MOUNT
5633826
5634514
$52,49 Unit Price incl. VAT
19
BOLT-M6X1.0X15 PH/TX-OLIVE D
7518656
$7,34 Unit Price incl. VAT
20
TRANSJOINT BRACKET; MAG; MACHINED
5139822
5144809
$89,24 Unit Price incl. VAT
21
HEX HEAD FLANGE BOLT; 10 MM X 45 MM
7518531
$9,44 Unit Price incl. VAT
22
O-RING; 2.25 X 2.625 X .21; FKM
5416417
$25,19 Unit Price incl. VAT
23
WORM DRIVE CLAMP; .44 W X 4.25 DIA
7080813
$7,34 Unit Price incl. VAT
24
INNER CLUTCH COVER
5142589
2209338
$556,49 Unit Price incl. VAT
25
O-RING SEAL; .128 X 7.895
5415647
$3,14 Unit Price incl. VAT

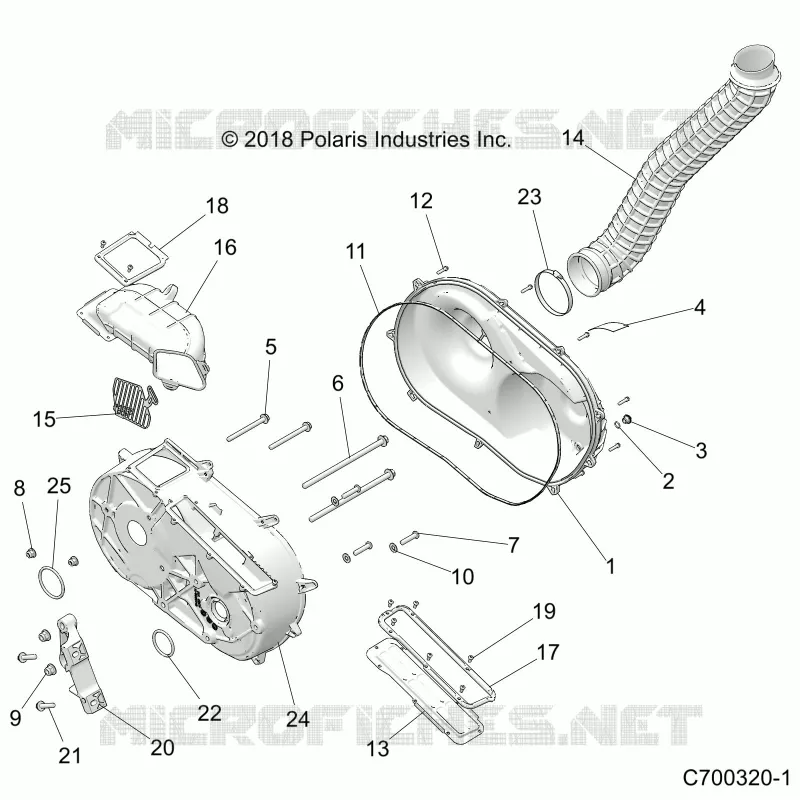

Find the detailed DRIVE TRAIN, CLUTCH COVER AND DUCTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
