1
Engine displacement
500
2
Year
2008
3
Trim
SPORTSMAN 500 EFI SCANDINAVIAN - A08MH50SS/SQ
4
Parts Catalog
BRAKES, BRAKE PEDAL AND REAR MASTER CYLINDER
5
Parts Diagram
Parts Catalog
BRAKE LINES
by
DRIVE TRAIN, GEAR SELECTOR
BRAKES, BRAKE PEDAL AND REAR MASTER CYLINDER
1
2
2
3
4
4
5
6
7
8
8
9
9
10
11
1
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
2
NYLOK FLANGED NUT
7542153
$3,14 Unit Price incl. VAT
3
BRAKE RESERVOIR KIT; REAR
1930854
9999999
Not Available
4
BOLT
7512247
9999999
Not Available
5
HOSE RESERVOIR 1/4ID 22IN.
1910315
1911267-790
$23,09 Unit Price incl. VAT
6
REAR MASTER CYLINDER BRAKE ASSEMBLY
1911113
$325,49 Unit Price incl. VAT
7
TORSION SPRING; BRAKE
7041750
$16,79 Unit Price incl. VAT
8
WASHER
7555919
$7,34 Unit Price incl. VAT
9
PEDAL PIVOT BUSHING
5433189
$7,34 Unit Price incl. VAT
10
WELD-BRAKE PEDAL 400/500SP BLK
1911047067
Not Available
11
COTTER PIN
7661401
$1,56 Unit Price incl. VAT

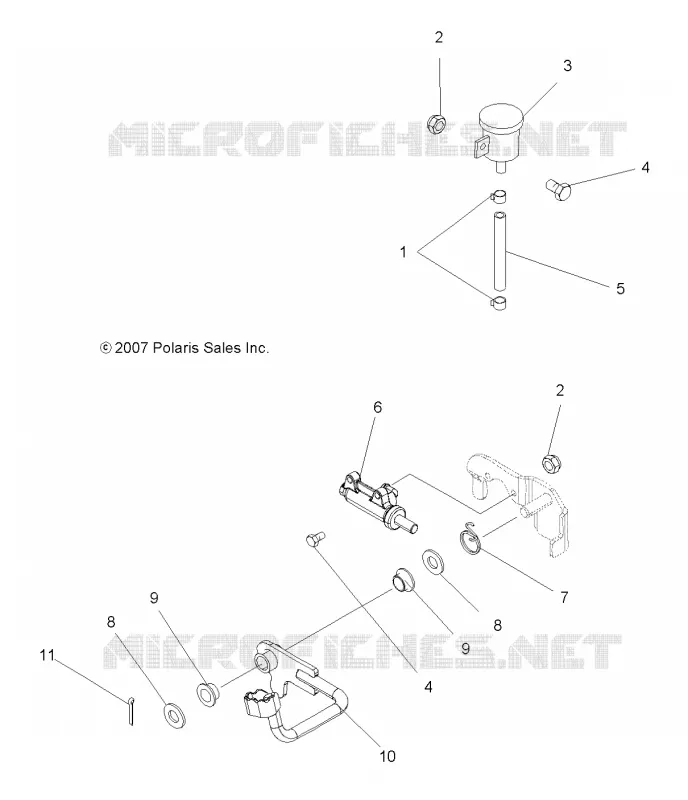

Find the detailed BRAKES, BRAKE PEDAL AND REAR MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
