1
Engine displacement
600
2
Year
2005
3
Trim
SPORTSMAN 600 - A05MH59AK
4
Parts Catalog
WATER PUMP
5
Parts Diagram
Parts Catalog
CRANKCASE
by
OIL PUMP
WATER PUMP
1
2
3
4
5
6
7
8
9
10
11
12
1
SHAFT-OIL/WATER PUMP 8.5
5133948
9999999
Not Available
2
BALL BEARING 15 X 35 X 11
3584404
9999999
Not Available
3
RING-RETAINING 1.281X.130
7710531
$9,44 Unit Price incl. VAT
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
WATER PUMP IMPELLER
5433684
$57,74 Unit Price incl. VAT
6
FLAT WASHER; SS
7555874
$4,19 Unit Price incl. VAT
7
HEX NUT; NYLOK
7546804
$2,09 Unit Price incl. VAT
8
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
9
SCR-M6X1.0X45 HX-FL-Y/D
7517950
$10,49 Unit Price incl. VAT
10
WATER PUMP-COVER DIE CAST
5631389
9999999
Not Available
11
COVER SEAL; WATERPUMP
5812571
$14,69 Unit Price incl. VAT
12
WATERPUMP FACE SEAL; 15 X 36/ 40 X 20
3610075
$131,24 Unit Price incl. VAT

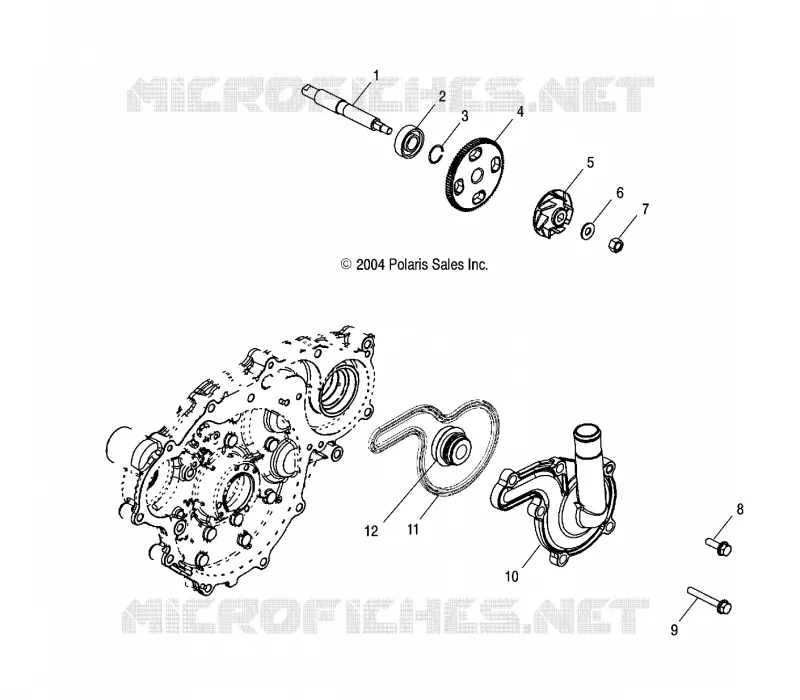

Find the detailed WATER PUMP POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
