CYLINDER for POLARIS 800 RMK ASSAULT 155 from 2011

CYLINDER

1

SCREW M6X1.0 X 13 SL/HX/FL-Z

7517679

$25,19 Unit Price incl. VAT

2

FLAT WASHER

7555998

$2,09 Unit Price incl. VAT

3

SCREW M6 X 1.0; L-20MM

7516822

$4,19 Unit Price incl. VAT

4

THERMOSTAT COVER M6 MACHINED

5136512

9999999

Not Available

5

SCREW 8 MM X 1.25 MM X 55 MM

7517533

$8,39 Unit Price incl. VAT

6

COVER-HEAD 85 TWIN SDI MACH

5136071

9999999

Not Available

7

GLAND HEAD SEAL

5413230

$31,49 Unit Price incl. VAT

8

O-RING

5411411

$1,56 Unit Price incl. VAT

9

FITTING-5/16 HOSE BARB;1/8 90

7052515

9999999

Not Available

10

HEAD CYLINDER;

3022214

9999999

Not Available

11

CYLINDER GLAND SEAL

5413288

$41,99 Unit Price incl. VAT

12

HI TEMP O-RING; 3.664 X 3.804 X 07

5413319

$36,74 Unit Price incl. VAT

13

HEX FLANGE SCREW 10MM X 1.50MM X 100MM

7518774

$11,54 Unit Price incl. VAT

14

CYLINDER-85MM SDI MONOBLOCK

3022205

9999999

Not Available

15

BASE CYLINDER GASKET 800 LE

5813515

9999999

Not Available

16

PLUG-3/8 NPT;HX/SOC W/SEALANT

7052413

$8,39 Unit Price incl. VAT

17

CLAMP-HOSE 17/32 GREEN

7081432

$7,34 Unit Price incl. VAT

18

THROTTLE BODY COOLANT HOSE

5413080

9999999

Not Available

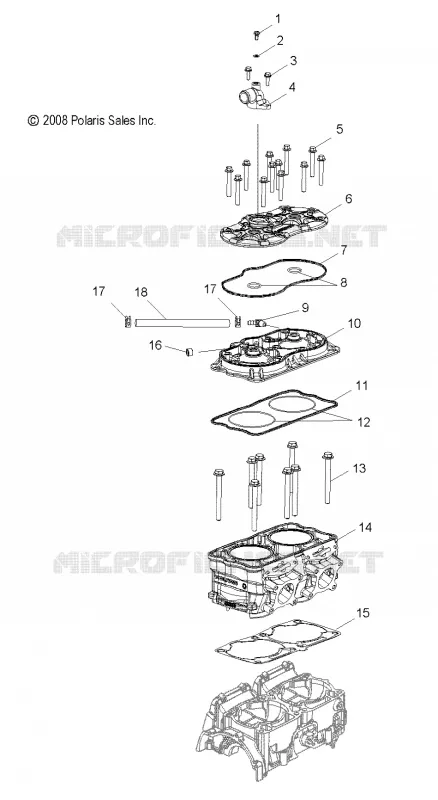

Find the detailed CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
