Engine displacement
500
2
Year
2002
3
Trim
500 CLASSIC TOURING
4
Parts Catalog
OIL PUMP / FUEL PUMP
5
Parts Diagram
Parts Catalog
WATER PUMP
by
CARBURETOR
OIL PUMP / FUEL PUMP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
1
2
3
3
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
15
15
16
17
18
19
1
BUSHING LINKAGE
3240234
9999999
Not Available
2
ROD-FORK
3087002
9999999
Not Available
3
HOSE CLAMP
3083141
$2,09 Unit Price incl. VAT
4
PIPE; VINYL
3085157
8450184
$19,94 Unit Price incl. VAT
5
SCREW-AIR VENT
3083125
9999999
Not Available
6
PACKING(10)
3083126
9999999
Not Available
7
OIL PUMP ASSEMBLY
3086999
9999999
Not Available
8
SET-SPRING AND LEVER
3087001
9999999
Not Available
9
LEVER-CONTROL
3087000
9999999
Not Available
10
WASHER-SPRING(10)
3083121
1205792
$614,24 Unit Price incl. VAT
11
NUT(10)
3083120
9999999
Not Available
12
COLLAR CAMSHAFT(10)
3083445
9999999
Not Available
13
ASM. SCREW & WASHER (10)
3083783
9999999
Not Available
14
O-RING
3083127
9999999
Not Available
15
SPACER 3.6MM
3083673
5141621
$8,39 Unit Price incl. VAT
15
SPACER 2.3 MM
3083672
5141620
$6,29 Unit Price incl. VAT
15
SPACER 1.15MM
3083671
5141619
$6,29 Unit Price incl. VAT
16
BUSHING
3083353
9999999
Not Available
17
SPACER
3083130
9999999
Not Available
18
GEAR SMALL
3083131
5141635
$141,74 Unit Price incl. VAT
19
ASM-FUEL PUMP
3086998
9999999
Not Available

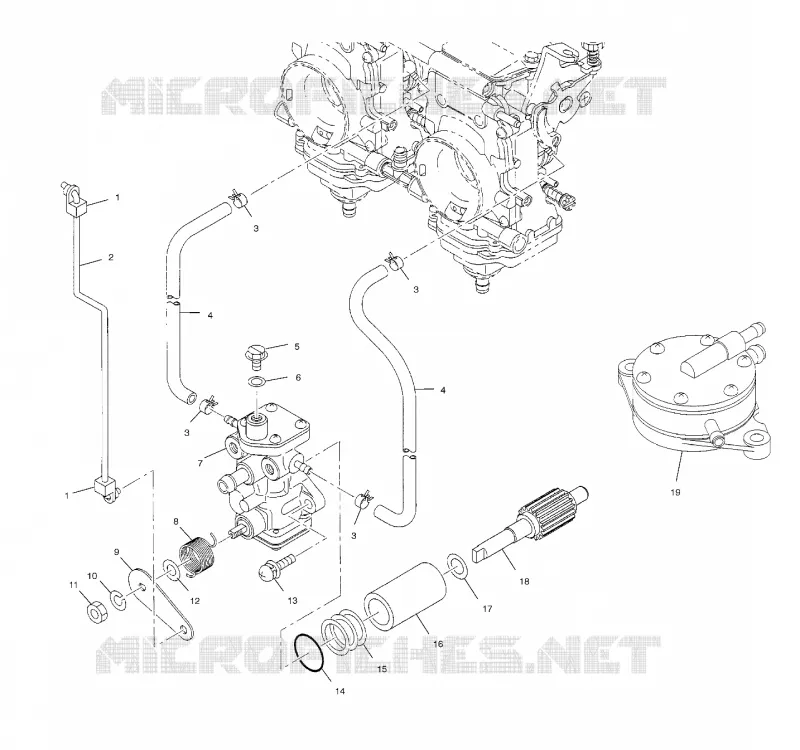

Find the detailed OIL PUMP / FUEL PUMP POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
