THROTTLE BODY AND FUEL RAIL
5
Parts Diagram
Parts Catalog
THERMOSTAT and COVER
by
STEERING
THROTTLE BODY AND FUEL RAIL
1
1
2
3
4
5
6
7
8
9
10
1
ASM-THROTTLE BODY;42MM;IAC
1204284
$713,99 Unit Price incl. VAT
2
FUEL INJECTOR
2521068
$188,99 Unit Price incl. VAT
3
1 CYLINDER FUEL RAIL
2521403
$206,63 Unit Price incl. VAT
4
THROTTLE BODY ADAPTER
5414317
$152,24 Unit Price incl. VAT
5
CLAMP HOSE
7081623
$5,76 Unit Price incl. VAT
6
SCREW
7516734
$5,76 Unit Price incl. VAT
7
HEX FLANGE SCREW; 6 MM X 20 MM
7518576
$6,29 Unit Price incl. VAT
8
COVER-THROTTLE CAM
5253974
9999999
Not Available
9
THROTTLE CAM COVER O-RING
5413898
$20,99 Unit Price incl. VAT
10
SCR-M4X0.7X8MM TX
7519292
$1,56 Unit Price incl. VAT

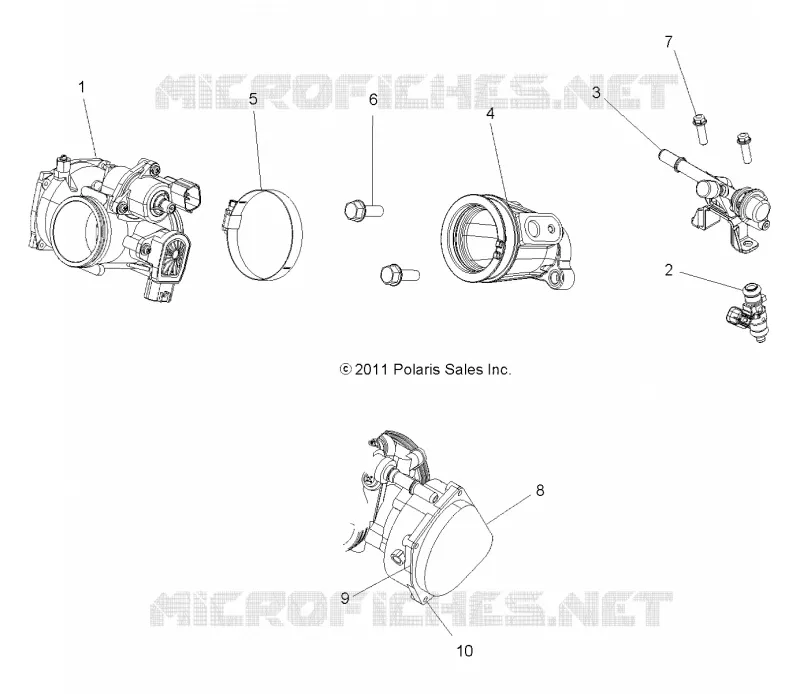

Find the detailed THROTTLE BODY AND FUEL RAIL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
