PISTON CRANKSHAFT CLASSIC 0973865 (4938463846C009) for POLARIS CLASSIC - 0973865 from 1997

CARBURETOR CLASSIC 0973865 (4938463846C008)

TOOL KIT CLASSIC 0973865 (4938463846D001)

PISTON CRANKSHAFT CLASSIC 0973865 (4938463846C009)

1

PISTON PIN CLIP

3083839

9999999

Not Available

2

RING PISTON; .020 IN

3084344

9999999

Not Available

2

PISTON RING STANDARD

3084342

9999999

Not Available

2

PISTON RING .010 IN

3084343

9999999

Not Available

3

SET PISTON .020/.50MM O/S

3084341

9999999

Not Available

3

SET PISTON STANDARD

3084339

9999999

Not Available

3

SET PISTON .010 /.25MM O/S

3084340

9999999

Not Available

4

PISTON PIN

3083858

9999999

Not Available

5

CRANKPIN SPACER

3083277

9999999

Not Available

6

PIN CRANK 2

3083456

5141629

$57,74 Unit Price incl. VAT

7

BEARING-LARGE END

3083255

9999999

Not Available

8

CONNECTING ROD

3083252

9999999

Not Available

9

BEARING SMALL END

3083216

3515064

$25,71 Unit Price incl. VAT

10

PIN; CRANK

3083233

9999999

Not Available

11

BALL BEARING

3085205

9999999

Not Available

12

SPACER

3085203

9999999

Not Available

13

BALL BEARING

3085204

9999999

Not Available

14

CRANKSHAFT-3(PTO SIDE)

3085202

9999999

Not Available

15

CRANKSHAFT ASM

3085206

9999999

Not Available

15

CRANKSHAFT #1

3083362

Not Available

16

KEY

3081447

9999999

Not Available

17

BALL BEARING

3084586

3515063

$60,89 Unit Price incl. VAT

18

WASHER-SPRING(10)

3083094

7557228

$6,29 Unit Price incl. VAT

19

NUT

3083093

7547895

$7,34 Unit Price incl. VAT

20

CRANKSHAFT 2

3083713

9999999

Not Available

21

GEAR DRIVE OIL PUMP

3083782

9999999

Not Available

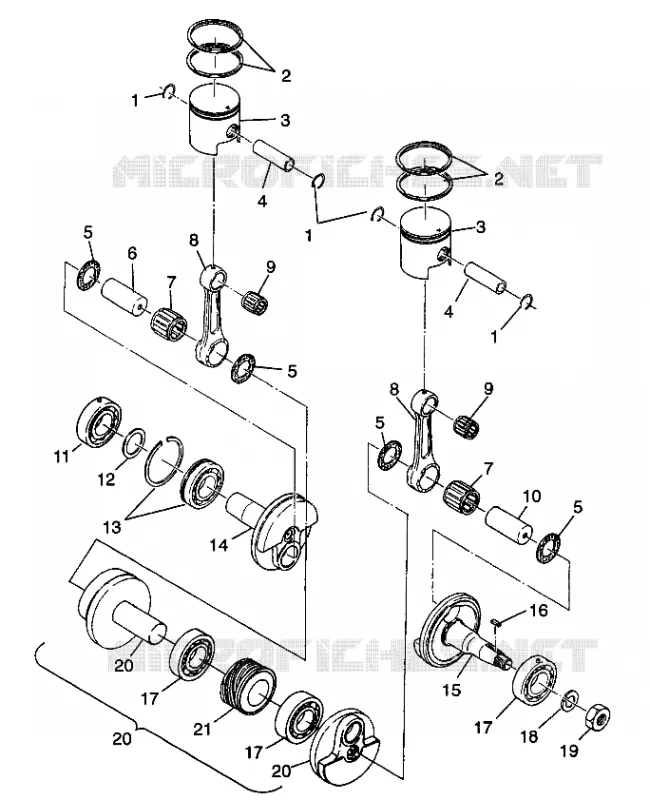

Find the detailed PISTON CRANKSHAFT CLASSIC 0973865 (4938463846C009) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
