PISTON CRANKSHAFT STORM/0932770 AND STORM SKS/0932570 (4923032303031A)
5
Parts Diagram
Parts Catalog
WATER PUMP STORM/0932770 AND STORM SKS/0932570 (4923032303030A)
by
CARBURETOR STORM/0932770 AND STORM SKS/0932570 (4923032303032A)
PISTON CRANKSHAFT STORM/0932770 AND STORM SKS/0932570 (4923032303031A)
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4
5
5
5
6
6
6
7
7
7
7
8
8
8
9
10
10
11
12
13
14
14
15
16
16
16
16
17
17
17
17
18
19
19
20
21
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4
5
5
5
6
6
6
7
7
7
7
8
8
8
9
10
10
11
12
13
14
14
15
16
16
16
16
17
17
17
17
18
19
19
20
21
1
PISTON PIN CLIP
3083839
9999999
Not Available
2
RING PISTON (STD) (2)
3084547
9999999
Not Available
2
RING PISTON(.010 O/S) (2)
3084548
9999999
Not Available
2
RING PISTON(.020 O/S) (0.50mm/.020# O/S)
3084549
Not Available
3
STANDARD PISTON
3084575
9999999
Not Available
3
PISTON (.010 O/S) (0.25mm/.010# O/S)
3084576
Not Available
3
PISTON (.020 O/S) (0.50mm/.020# O/S)
3084577
Not Available
4
PISTON PIN
3083858
9999999
Not Available
5
BEARING SMALL END
3083216
3515064
$25,71 Unit Price incl. VAT
6
ROD CONNECTING
3084543
Not Available
7
CRANKPIN SPACER
3083277
9999999
Not Available
8
BEARING LGE.END
3240084
9999999
Not Available
9
PIN; CRANK
3240085
9999999
Not Available
10
PIN-CRANK 2
3083254
9999999
Not Available
11
CRANKSHAFT 3
3084542
Not Available
12
CRANKSHAFT PTO SIDE (PTO) (Incl. 9)
3084541
Not Available
13
BEARING BALL
3084546
9999999
Not Available
14
SPACER; .6
3240088
9999999
Not Available
15
BEARING BALL
3084545
9999999
Not Available
16
CRANKSHAFT CTR. (Center) (Incl. 3 6-10)
3084539
Not Available
16
CRANKSHAFT MAG.SIDE
3084540
9999999
Not Available
17
CRANKSHAFT CPL.
3084537
9999999
Not Available
17
CRANKSHAFT 1
3084538
Not Available
18
KEY WOODRUFF
3081543
$26,24 Unit Price incl. VAT
19
BEARING BALL
3084544
9999999
Not Available
20
WASHER
3084457
9999999
Not Available
21
NUT
3083093
7547895
$7,34 Unit Price incl. VAT

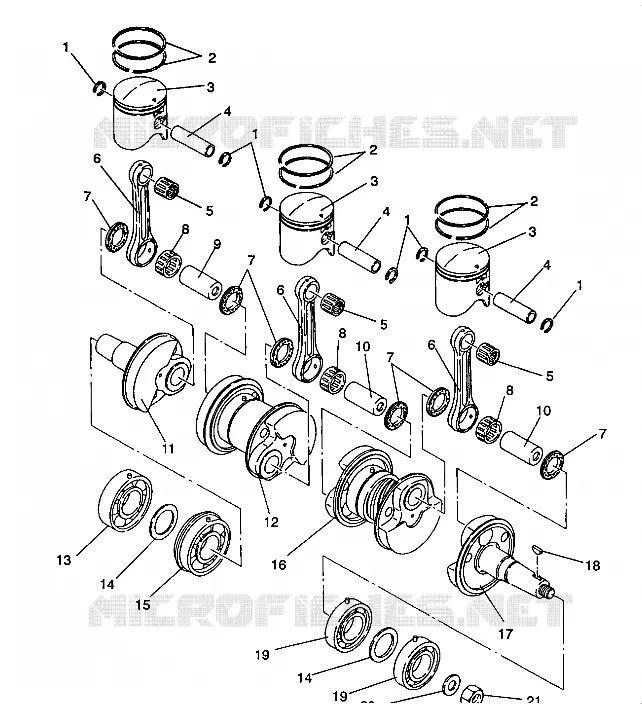

Find the detailed PISTON CRANKSHAFT STORM/0932770 AND STORM SKS/0932570 (4923032303031A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
