HOOD ASSEMBLY 440 E942760 AND 440 SKS E942560 (49273927390007) for POLARIS EURU 440 SKS - E942560 from 1994

NOSEPAN ASSEMBLY 440 E942760 AND 440 SKS E942560 (49273927390006)

HOOD ASSEMBLY 440 E942760 AND 440 SKS E942560 (49273927390007)

1

PLASTI-LOCK RIVET

7621509

$2,09 Unit Price incl. VAT

2

WINDSHIELD HIGH CLEAR

5431465

9999999

Not Available

3

WASHER SPLIT LOCK

3280156

9999999

Not Available

3

NUT

3280158

9999999

Not Available

3

WASHER FLAT(10)

3280157

$4,19 Unit Price incl. VAT

4

BRKT SPEEDO/TACH

3280153

Not Available

5

HSG.ASM INST.

2652130

9999999

Not Available

6

CUSHION TACH/SPEEDO RUBBER

3280151

9999999

Not Available

7

TACHOMETER;BACKLIT(2P)

3280149

9999999

Not Available

8

INDICATOR-TEMP-WARN.

4040011

9999999

Not Available

9

INDICATOR OIL/BRK WARN.

4040034

9999999

Not Available

10

INDICATOR HI-BEAM WARN.

4040013

9999999

Not Available

11

PLUG INDIC.HOLE

5430967

9999999

Not Available

12

KNOB TRIP ODOMETER

3280103

9999999

Not Available

13

SPEEDO KILOMETER

3280159

9999999

Not Available

14

SPEEDO CABLE

3280094

$115,49 Unit Price incl. VAT

15

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

16

HARNESS HEADLIGHT

2460397

9999999

Not Available

17

FOIL TAPE 1.5X6

5810949

9999999

Not Available

18

SCREW

7512070

7512076

$2,09 Unit Price incl. VAT

19

O RING(HEAVY)

5410387

5410970

$2,09 Unit Price incl. VAT

20

FOAM LH HOOD

5810876

Not Available

21

FOIL RH HOOD

5810905

Not Available

21

FOAM RH HOOD

5810877

Not Available

22

FOAM HOOD CTR.

5810875

Not Available

23

HOOD RETAINER CABLE

7080521

9999999

Not Available

24

SCREW(10)

7511930

$4,19 Unit Price incl. VAT

25

FLEXLOC NUT(10)

7541906

$6,29 Unit Price incl. VAT

26

HOOD ASM (Incl. 17 20-22 27 28)

2631591136

Not Available

27

FOIL HOOD FRONT

5810874

Not Available

28

FOIL HOOD CTR.

5810873

Not Available

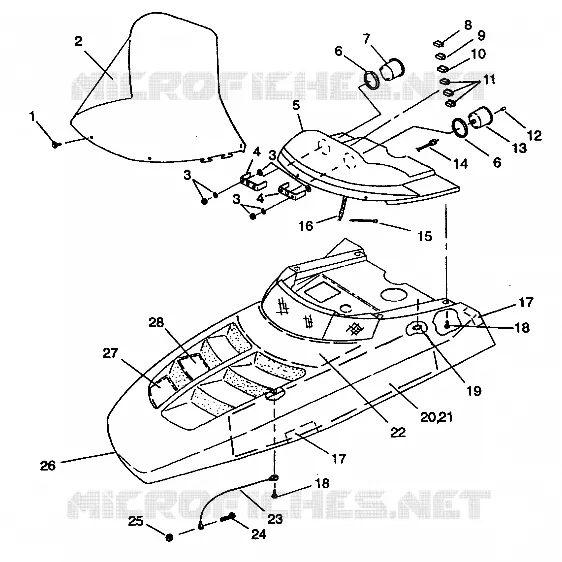

Find the detailed HOOD ASSEMBLY 440 E942760 AND 440 SKS E942560 (49273927390007) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
