1
Engine displacement
800
2
Year
2002
3
Trim
800 RMK F/O 156
4
Parts Catalog
SHOCK (REAR TRACK)
5
Parts Diagram
Parts Catalog
SHOCK (IFS)
by
NOSEPAN
SHOCK (REAR TRACK)
-
IFP
1700023
9999999
Not Available
-
IFP-O-RING
1700048
9999999
Not Available
-
IFP WEAR BAND
1700032
9999999
Not Available
-
SHOCK-R/T RMK IFP COMP ADJ
7041968
9999999
Not Available
1
ROD SEAL
1700021
9999999
Not Available
2
CAP SEAL
1700022
9999999
Not Available
3
ISOLATOR
1700162
9999999
Not Available
4
TOP-OUT WASHER
1700077
$18,89 Unit Price incl. VAT
4
PISTON WEAR BAND
1700031
9999999
Not Available
4
BANDED PISTON .094 ORIFICE
1700110
9999999
Not Available
4
BACK-UP WASHER
1700078
9999999
Not Available
5
NUT
1700057
9999999
Not Available
6
BUSHING
1700073
$20,99 Unit Price incl. VAT
7
SLEEVE-.57 IDX.80 ODX1.20
1700069
$27,29 Unit Price incl. VAT
8
WASHER-COPPER
1700168
9999999
Not Available
9
BOLT-BANJO
1700169
9999999
Not Available
10
Line Pressure
1700167
Not Available
11
Label Adjustment
1700166
Not Available
12
HOSE CLAMP
1700063
Not Available
12
CLAMP-CRIMP STYLE
1700163
9999999
Not Available
13
RESERVOIR CYLINDER
1700165
9999999
Not Available
14
RES END CAP W/VALVE
1700164
9999999
Not Available
15
PRESS-VALVE O-RING
1700045
9999999
Not Available
15
PRESS-VALVE ASSY
1700053
9999999
Not Available
16
VALVE SCREW
1700055
9999999
Not Available
17
CYL HEAD ASSY(1/2 ROD)
1700007
9999999
Not Available
18
SHAFT
1700183
9999999
Not Available
19
UPPER MOUNT
1700024
9999999
Not Available
20
VALVE-METERING
1700177
9999999
Not Available
21
ASSY-PLUNGER
1700174
9999999
Not Available
22
SPACER
1700173
9999999
Not Available
23
RING-RETAINING
1700175
9999999
Not Available
24
O-RING CYLINDER HEAD
1700051
9999999
Not Available
25
SPRING-COMPRESSION
1700176
9999999
Not Available
26
HOUSING-ADJUSTER
1700181
9999999
Not Available
27
ADJUSTING KNOB
1700172
9999999
Not Available
28
O-RING
1700171
9999999
Not Available
29
CIRCLIP
1700170
9999999
Not Available
30
CYL-HEAD O-RING
1700149
9999999
Not Available
31
SPRING-REPLENISH VALVE
1700179
9999999
Not Available
32
VALVE-REPLENISHING
1700178
9999999
Not Available

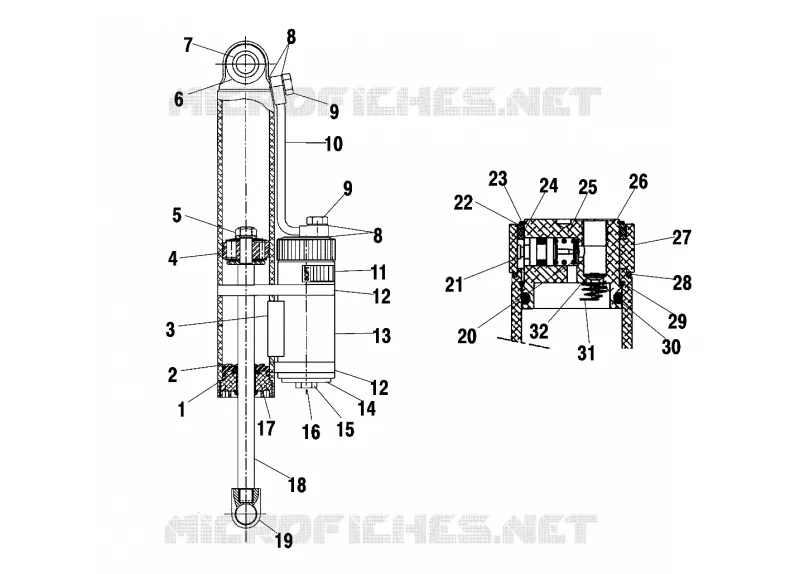

Find the detailed SHOCK (REAR TRACK) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
