1
Engine displacement
700
2
Year
1998
3
Trim
INTL SLH - I984673
4
Parts Catalog
ELECTRICAL BOX
5
Parts Diagram
Parts Catalog
EXHAUST SYSTEM
by
BILGE PUMP
ELECTRICAL BOX
1
2
2
2
2
3
3
3
3
4
4
4
4
5
5
6
7
18
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
27
28
29
18
31
32
18
34
35
36
37
38
39
40
41
42
1
2
2
2
2
3
3
3
3
4
4
4
4
5
5
6
7
18
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
27
28
29
18
31
32
18
34
35
36
37
38
39
40
41
42
1
BOLT; S.S.
7512042
9999999
Not Available
2
NUT; SS.
7547036
9999999
Not Available
3
WASHER; LOCK
7552615
9999999
Not Available
4
WASHER; FLAT; S.S.
7555837
9999999
Not Available
5
WASHER RUBBER(10)
7555870
9999999
Not Available
6
PLATE BTM E-BOX
5211761
9999999
Not Available
7
HARNESS WIRE GND EL.BOX
2460621
Not Available
8
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
9
HARNESS 60 IN 10 WIRE
2460675
Not Available
10
CABLE RED BATT/SOL. CAP
4010122
Not Available
11
CABLE RED SOL./STRTR CAP
4010123
Not Available
12
CLIP IGNITION CABLE
7080471
9999999
Not Available
13
CAP GROMMET
5432502
9999999
Not Available
14
GROMMET 1 HOLE LARGE
5411213
9999999
Not Available
15
REG./RECT/CUTOFF LR23
4060171
9999999
Not Available
16
TERM.BOARD ASMMFD
2434014
9999999
Not Available
17
CONDUIT CONVOL. Substituted by 4010051-15
401005105
Not Available
18
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
19
PLATE TOP E-BOX
5211760
9999999
Not Available
20
CKT.BREAKER 15A.(WATER.)
2434011
9999999
Not Available
21
LATCH
5432503
9999999
Not Available
22
PIN LATCH (10)
5333544
9999999
Not Available
23
HOOK; D;SST/SS;(10)
5224472
9999999
Not Available
24
STRAP RUBBER
5410853
9999999
Not Available
25
BRKT BATT.STRAP IN-BD
5242994
9999999
Not Available
26
WASHER LOCK
7552613
9999999
Not Available
27
BOLT(10)
7512043
9999999
Not Available
28
BRKT BATT.STRAP OUT-BD
5242995
9999999
Not Available
29
GROMMET
5411235
9999999
Not Available
30
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
31
SEAL
5432569
9999999
Not Available
32
BRKT;COIL/SOLENOID
5241999
5243538
Not Available
33
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
34
INSUL.CABLE SOL.
5410346
9999999
Not Available
35
BOOT THREADED
7080461
9999999
Not Available
36
O-RING
5411491
9999999
Not Available
37
DECAL WARN HI.VOLT.
7073713
9999999
Not Available
38
BOXTOP ASM;ELEC;PLASTIC
2620120
9999999
Not Available
39
DECAL- RESET ELEC SYSTEM
7077691
9999999
Not Available
40
PLATE STATOR 1 HOLE
5432574
9999999
Not Available
41
WASHER
7555836
9999999
Not Available
42
BOLT SS
7515113
9999999
Not Available

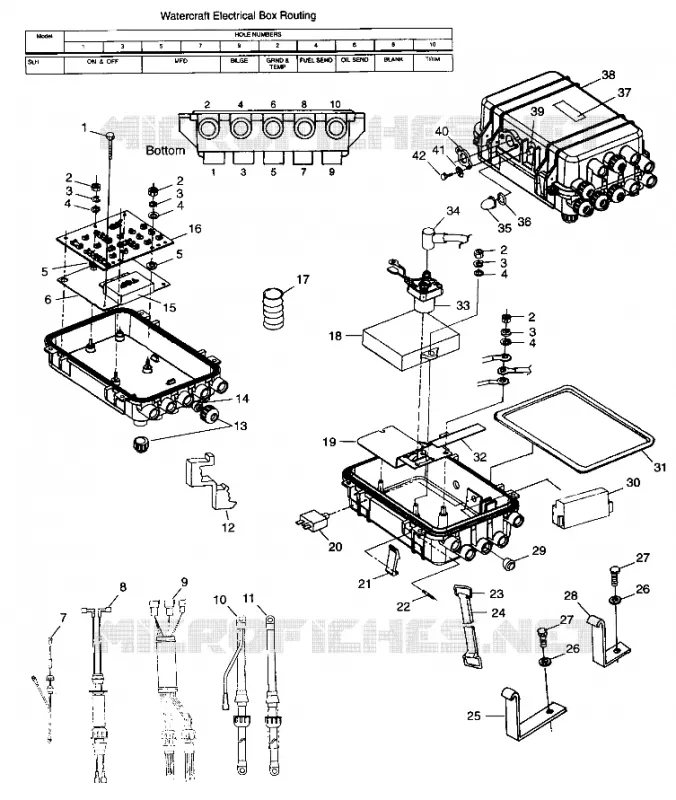

Find the detailed ELECTRICAL BOX POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
