1
Engine displacement
500
2
Year
1998
3
Trim
SCRAMBER 500 - W98BC50A
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
CONTROL PANEL
by
ENGINE MOUNTING
COOLING SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
2
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
3
MOTOR FAN D-SHAFT STD
2410121
9999999
Not Available
4
BRKT.COOL.FAN BLK
5241355067
Not Available
5
VALVE;DRAIN COCK
7052181
9999999
Not Available
6
SPACER
5020937
9999999
Not Available
7
MOUNT; RUBBER
3110032
9999999
Not Available
8
HOSE; WATER
845005063
Not Available
9
HOSE CHAFE-PROTECTED
5411108
9999999
Not Available
10
HOSE CLAMP
7080614
$13,64 Unit Price incl. VAT
11
HARNESS FAN/THERM.SWITCH
2460515
9999999
Not Available
12
SWITCH-THERMAL; 4 STROKE; 500CC
4010202
9999999
Not Available
13
CAP; RADIATOR
2511189
9999999
Not Available
14
RADIATOR"U"FLOW
1240015
9999999
Not Available
15
COVER RADIATOR W/MESH
5431610
Not Available
16
O-RING
5410607
9999999
Not Available
17
SCREW
7515133
$7,34 Unit Price incl. VAT
18
CLAMP-FAN BLADE [No Longer Available]
7080680
Not Available
19
BLADE FAN NYLON 8
5242550
9999999
Not Available
20
SCREW
7517221
9999999
Not Available
21
BOLT
7512232
$2,09 Unit Price incl. VAT
22
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
23
NUT (10)
7547004
$9,44 Unit Price incl. VAT
24
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
25
SHROUD FAN (ATV)
5432593
9999999
Not Available
26
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
27
GASKET
5810279
$4,19 Unit Price incl. VAT
28
PLUG CAP
5431895
5433774
$10,49 Unit Price incl. VAT
29
TANK; SURGE
5431673
5436936
$152,24 Unit Price incl. VAT
30
FUEL LINE; 1/4 ID
84500031525
Not Available
31
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT
32
SCREW
7512084
$2,09 Unit Price incl. VAT

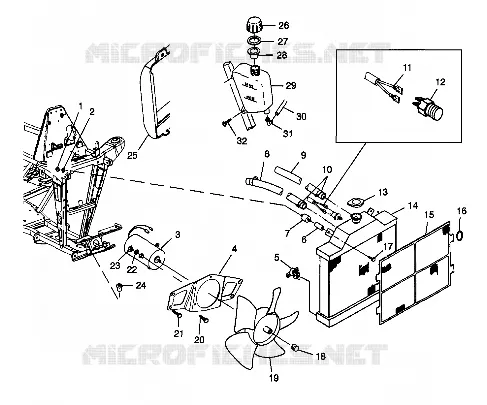

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
