1
Engine displacement
autre
2
Year
1993
3
Trim
EURO WIDE TRAK - E932064
4
Parts Catalog
STEERING ASSEMBLY WIDETRAK / 0932064 (4922982298014A)
5
Parts Diagram
Parts Catalog
STEERING
by
FRONT TORQUE ARM WIDETRAK / 0932064 (4922982298021A)
STEERING ASSEMBLY WIDETRAK / 0932064 (4922982298014A)
1
1
2
2
2
2
3
3
4
4
5
5
6
6
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
9
9
10
10
11
11
12
12
13
13
14
14
14
14
14
14
15
15
16
16
17
17
18
18
18
18
19
19
20
20
21
21
22
22
22
22
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
1
1
2
2
2
2
3
3
4
4
5
5
6
6
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
9
9
10
10
11
11
12
12
13
13
14
14
14
14
14
14
15
15
16
16
17
17
18
18
18
18
19
19
20
20
21
21
22
22
22
22
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
1
HOOP STEERING BLK.
1011819067
Not Available
2
CLIP
7080278
9999999
Not Available
3
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
4
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
5
BOLT-CARRIAGE
7512262
9999999
Not Available
6
PLUIG
5410344
$10,49 Unit Price incl. VAT
7
ROD END RH
7060125
7060165
$99,74 Unit Price incl. VAT
7
ROD END;LH
7060124
7060164
$99,74 Unit Price incl. VAT
8
NUT LH (10)
7542424
$1,56 Unit Price incl. VAT
8
NUT HEX RH(10)
7542401
$4,19 Unit Price incl. VAT
9
ROD TIE BLACK
5332713067
Not Available
10
PLATELHBOOTSEAL
5210959
5210959-067
Not Available
11
RIVET(10)
7621301
9999999
Not Available
12
BOOT LH
5410388
9999999
Not Available
13
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT
14
BOLT
7512404
$7,34 Unit Price incl. VAT
15
BLOCK STEERING
5630375
Not Available
16
BOLT
7512658
9999999
Not Available
17
WASHER WAVE
7555735
$7,34 Unit Price incl. VAT
18
BUSHING
3563907
$7,34 Unit Price incl. VAT
19
PLATE RH BOOT SEAL
5210904
9999999
Not Available
20
POP RIVET
7621303
9999999
Not Available
21
BOOT-TIE ROD
5410328
9999999
Not Available
22
NUT LOCK
7542403
9999999
Not Available
23
STRG.ARM CTR BLK.
1822040067
Not Available
24
BUSHING-SPACER
5010161
9999999
Not Available
25
WASHER
7555721
$2,09 Unit Price incl. VAT
26
NUT
7542712
$17,84 Unit Price incl. VAT
27
ROD-DRAG LINK
5332712
9999999
Not Available
28
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
29
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
30
BOLT-CARRIAGE
7512263
9999999
Not Available
31
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT
32
FITTING-LUBE.
7080220
9999999
Not Available
33
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT

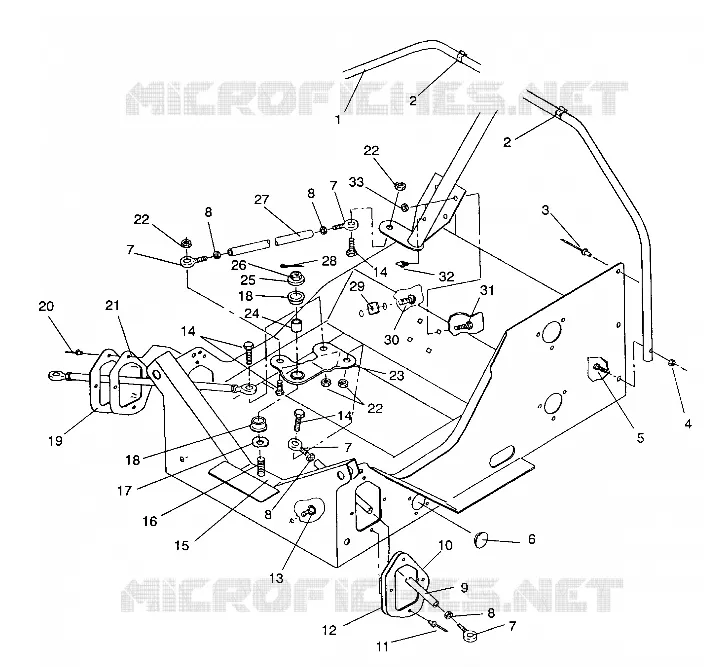

Find the detailed STEERING ASSEMBLY WIDETRAK / 0932064 (4922982298014A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
