1
Engine displacement
570
2
Year
2020
3
Trim
RZR 570
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE MOUNTING- Z20CHA57A2/E57AM (C700753)
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, GEAR SELECTOR
by
DRIVE TRAIN, PRIMARY CLUTCH
DRIVE TRAIN, MAIN GEARCASE MOUNTING- Z20CHA57A2/E57AM (C700753)
1
2
3
4
5
6
7
8
9
10
11
12
1
SHIFT CABLE BRACKET; BLACK
5255039329
Not Available
2
FITTING-VENT LINE;90
5453464
$10,49 Unit Price incl. VAT
3
CLAMP-HOSE 17/32 GREEN
7081432
$7,34 Unit Price incl. VAT
4
BOLT-M10X1.25X70 HXFLG-OLIVE D
7518561
$13,64 Unit Price incl. VAT
5
HEX HEAD SCREW; 8 MM X 1.25 MM X 45 MM
7519097
$3,14 Unit Price incl. VAT
6
HEX HEAD FLANGE BOLT 10MM X 1.25MM X16MM
7519374
$9,44 Unit Price incl. VAT
7
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
8
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
9
FUEL LINE 1/4 SAE #30R7;102CM
8450040102
Not Available
10
DRIVELINE ISOLATOR MOUNT
1332955
$136,49 Unit Price incl. VAT
11
PALNUT
7547030
$9,44 Unit Price incl. VAT
12
CLIP ROUTING .472 B.D. HINGED
7670116
$10,49 Unit Price incl. VAT

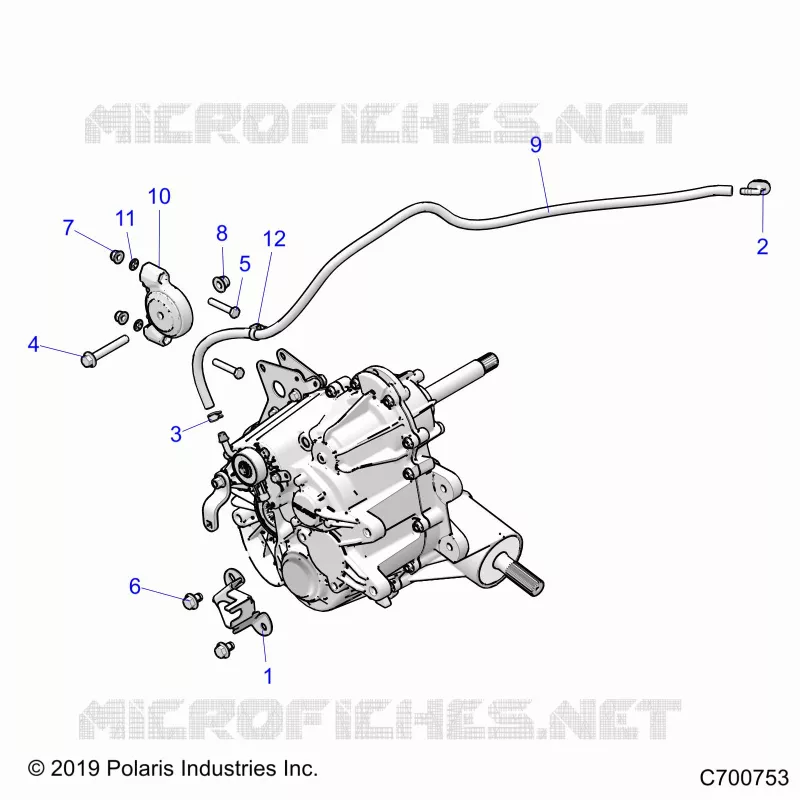

Find the detailed DRIVE TRAIN, MAIN GEARCASE MOUNTING- Z20CHA57A2/E57AM (C700753) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
