1
Engine displacement
500
2
Year
1994
3
Trim
EURO 500 EFI - E942774
4
Parts Catalog

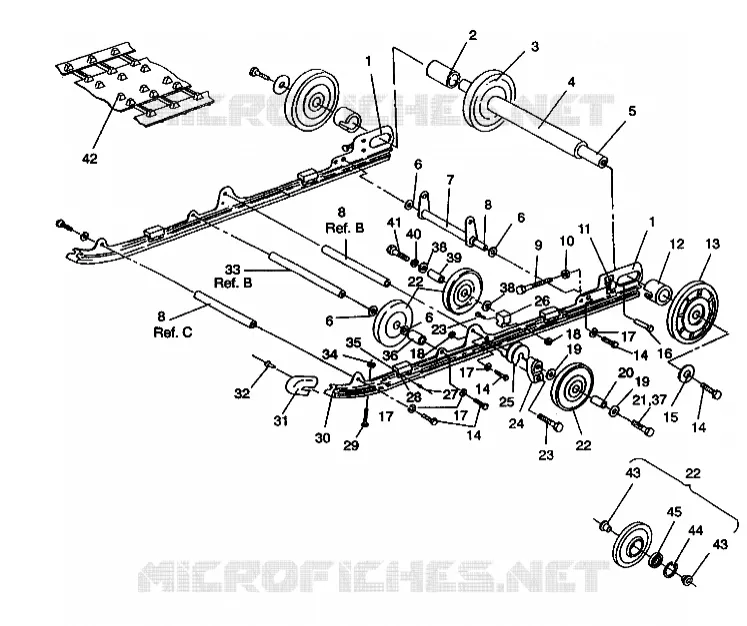

SUSPENSION ASSEMBLY 500 EFI E942774 (49274127410021)
5
Parts Diagram
Parts Catalog
TOOL KIT 500 EFI E942774 AND EFI SKS E942574 (49274127410020)
by
SUSPENSION ASSEMBLY 500 EFI SKS E942574 (49274127410023)
SUSPENSION ASSEMBLY 500 EFI E942774 (49274127410021)
1
1
1
1
2
3
4
5
6
6
6
6
7
8
8
8
9
10
11
12
13
14
14
14
14
15
16
17
17
17
17
18
18
19
19
20
21
22
22
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
38
39
40
41
42
43
43
44
45
1
1
1
1
2
3
4
5
6
6
6
6
7
8
8
8
9
10
11
12
13
14
14
14
14
15
16
17
17
17
17
18
18
19
19
20
21
22
22
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
38
39
40
41
42
43
43
44
45
1
RAIL ASM RH
1540725
9999999
Not Available
1
RAIL ASM LH
1540724
9999999
Not Available
2
SPACER INNER IDLER
5010169
9999999
Not Available
3
WHEEL; IDLER
1594021
9999999
Not Available
4
SPACER IDLER R.INNER
5333086
9999999
Not Available
5
SHAFT IDLER
5020722
9999999
Not Available
6
BUSHING
7556301
$6,29 Unit Price incl. VAT
7
ARM R.PIVOT BLK.
1540721067
Not Available
8
PIVOT ARM SHAFT
5020723
$47,24 Unit Price incl. VAT
9
ADJUSTER BOLT
7515455
9999999
Not Available
10
NUT
7542440
7542404
$3,14 Unit Price incl. VAT
11
BLOCK-IDLER BOLT ADJ.
5130530
$62,99 Unit Price incl. VAT
12
SPACER-IDLER-OUTER
5332641
9999999
Not Available
13
WHEEL IDLER PLUM
1594053
9999999
Not Available
14
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
15
WASHER
7571629
7556130
$11,54 Unit Price incl. VAT
16
RIVET
7621501
$4,19 Unit Price incl. VAT
17
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
18
NUT LOCK
7542403
9999999
Not Available
19
FLAT WASHER
7555852
$4,19 Unit Price incl. VAT
20
WHEEL SPACER
5333116
$13,64 Unit Price incl. VAT
21
BOLT
7512538
9999999
Not Available
22
IDLER WHEEL; 5.35 IN
1543018
$115,49 Unit Price incl. VAT
23
BOLT
7512404
$7,34 Unit Price incl. VAT
24
SPACER
5630399
$20,99 Unit Price incl. VAT
25
SPRING ROLLER
5431366
$19,94 Unit Price incl. VAT
26
BOGIE WHEEL BRACKET
5130570
$89,24 Unit Price incl. VAT
27
RIVET
7621476
$2,09 Unit Price incl. VAT
28
REINF.; BUMPER
5222629
9999999
Not Available
29
SCREW
7512227
$6,29 Unit Price incl. VAT
30
SLIDER BLK.
5521296
9999999
Not Available
31
COVER RAIL TIP
5431421
9999999
Not Available
32
RIVET(10)
7621435
$2,09 Unit Price incl. VAT
33
PIVOT ARM SHAFT
5020724
9999999
Not Available
34
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
35
BUMPER; RAIL
5810554
9999999
Not Available
36
SPACER OUTER
5332784
9999999
Not Available
37
NYLOK NUT
7542525
$9,44 Unit Price incl. VAT
38
WASHER
7555804
$7,34 Unit Price incl. VAT
39
SPACER
5332786
$13,64 Unit Price incl. VAT
40
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
41
BOLT
7512659
9999999
Not Available
42
TRACK BLOCK
5410736
Not Available
43
WHEEL INSERT
5431531
$19,94 Unit Price incl. VAT
44
RETAINING RING
7718407
$9,44 Unit Price incl. VAT
45
CHAINCASE BEARING
3514305
$34,64 Unit Price incl. VAT

Find the detailed SUSPENSION ASSEMBLY 500 EFI E942774 (49274127410021) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
