1
Engine displacement
650
2
Year
1991
3
Trim
650 RXL SKS - 0910568
4
Parts Catalog
CRANKCASE 650 RXL (4919531953023A)
5
Parts Diagram
Parts Catalog
SUSPENSION 650 RXL (4919531953015A)
by
CYLINDER MANIFOLD 650 RXL (4919531953024A)
CRANKCASE 650 RXL (4919531953023A)
1
CRANKCASE (Incl. 2 5-8)
3084038
Not Available
2
PIN DOWEL
3083054
9999999
Not Available
3
STUD
3083785
9999999
Not Available
4
SPACER
3083786
Not Available
5
BOLT AND WASHER ASSY.
3082097
9999999
Not Available
6
BOLT-WASHER
3082923
9999999
Not Available
7
BOLT & WASHER
3082925
Not Available
8
BOLT-WASHER
3082924
Not Available
9
PLUG
3082926
9999999
Not Available
10
PLUG
3082718
9999999
Not Available
11
WASHER WAVE(10)
3083027
Not Available
12
WASHER WAVE
3081634
9999999
Not Available
13
GROMMET Substituted by 3082875
3082862
Not Available
14
COVER CRANKCASE * Substituted by 3083390 (Incl. 15)
3083389
Not Available
14
COVER; CRANKCASE
3083390
9999999
Not Available
15
SEAL OIL
3083331
9999999
Not Available
16
GASKET
3083473
9999999
Not Available
17
SCREW COUNTER SUNK
3083333
9999999
Not Available
18
ASM. CLAMP
3083391
9999999
Not Available
19
SENSORCASE TEMP.
3084039
9999999
Not Available

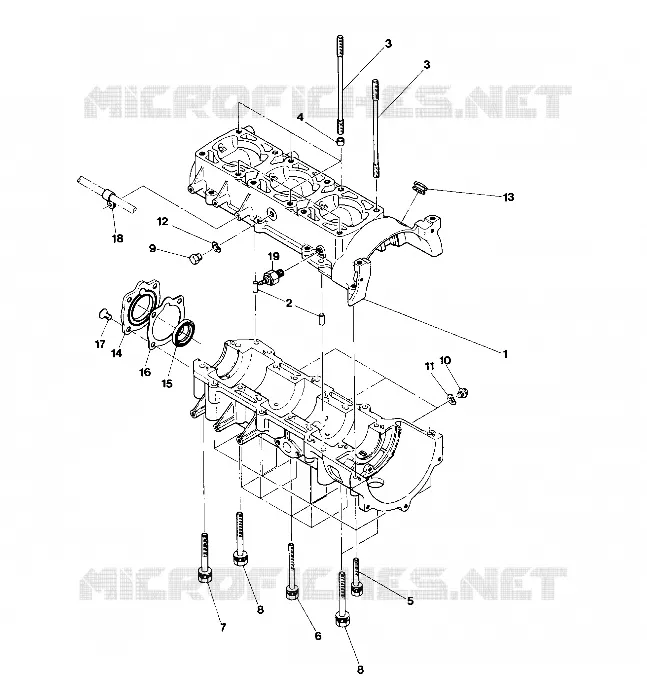

Find the detailed CRANKCASE 650 RXL (4919531953023A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
