SUSPENSION, RAIL BEAM LH/RH for POLARIS 850 PATRIOT INDY VR1 137 from 2024

SUSPENSION, RAIL BEAM LH/RH

1

SCR-TXTH-M6X1.0X25 8.8 ZPB

7520133

$6,29 Unit Price incl. VAT

2

RAIL TIP CAP

5452441

$26,24 Unit Price incl. VAT

3

WASHER

7556064

$9,44 Unit Price incl. VAT

4

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

5

NUT NYLOK 10-24 Y

7541925

$1,56 Unit Price incl. VAT

6

WASHER FLAT

7555783

$7,34 Unit Price incl. VAT

7

BUMPER-JOUNCE FTA PROG

5522253

$16,79 Unit Price incl. VAT

8

HEX FLANGE SCREW; 6 MM X 1.0 MM X 70 MM

7519908

7521331-70

$1,56 Unit Price incl. VAT

9

WSHR-M6 OFFSET 2.01 ZOD

7556799

$6,29 Unit Price incl. VAT

10

BEARING; .7874 X 1.6535 X .4724

3515142

$34,64 Unit Price incl. VAT

10

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

10

ASM-WHEEL SPOKED 5.62

1590632

$66,66 Unit Price incl. VAT

11

SCREW

7517510

$9,44 Unit Price incl. VAT

12

WHEEL MOUNT BLOCK

5633278

$47,24 Unit Price incl. VAT

13

CL8.8 OLV-D

7518906

$6,29 Unit Price incl. VAT

14

SCR-TXTH-M8X1.25X20 8.8 BLK

7519997

$7,34 Unit Price incl. VAT

15

SCREW

7515199

$2,09 Unit Price incl. VAT

16

SOCKET HEAD SCREW 10 MM X 1.5 MM X 30 MM

7519844

$9,44 Unit Price incl. VAT

17

MOUNT-BUMPER METRIC

5136571

$18,89 Unit Price incl. VAT

18

PIVOT ARM BUMPER

5410925

$26,24 Unit Price incl. VAT

19

ASM-RAIL 137 PREM SVC LH RADGN

1544450887

Not Available

19

ASM-RAIL 137 PREM SVC LH BLK

1544450067

Not Available

19

ASM-RAIL 137 PREM SVC RH ORGB

1544451647

Not Available

19

ASM-RAIL 137 PREM SVC RH BLK

1544451067

Not Available

19

ASM-RAIL 137 PREM SVC LH IRED

1544450293

Not Available

19

ASM-RAIL 137 PREM SVC RH IRED

1544451293

Not Available

19

ASM-RAIL 137 PREM SVC RH ISKYB

1544451737

Not Available

19

ASM-RAIL 137 PREM SVC LH ORGB

1544450647

Not Available

19

ASM-RAIL 137 PREM SVC LH ISKYB

1544450737

Not Available

19

ASM-RAIL 137 PREM SVC RH RADGN

1544451887

Not Available

20

BLOCK-IDLER BOLT ADJ METRIC

5136570

$62,99 Unit Price incl. VAT

21

RIVET

7621501

$4,19 Unit Price incl. VAT

22

SPACER-IDLER ADJ ALUM

5141837

$13,64 Unit Price incl. VAT

23

HEX NUT; 10 MM X 1.5 MM

7547707

$7,34 Unit Price incl. VAT

24

HEX SCREW; 10 MM X 1.5 MM X 100 MM

7520083

$23,09 Unit Price incl. VAT

25

NUT-HH M10X1.5 NYLOC ZOD

7547442

$7,34 Unit Price incl. VAT

26

PLATE-RAIL REINF BLK ANODIZED

5143395

$293,99 Unit Price incl. VAT

27

BUMPER

5432166

$9,44 Unit Price incl. VAT

28

SPRING ROLLER SHAFT

5136687

$19,94 Unit Price incl. VAT

29

SPRING SQUARE GUIDE

5434334

$62,99 Unit Price incl. VAT

30

PIN-CLEVIS 3/16X1 1/4

7661123

$7,34 Unit Price incl. VAT

31

HITCH PIN

7661644

$4,19 Unit Price incl. VAT

32

SCREW

7512025

$9,44 Unit Price incl. VAT

33

HI-FAX-137 LWT BLK

5522117070

Not Available

34

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$6,29 Unit Price incl. VAT

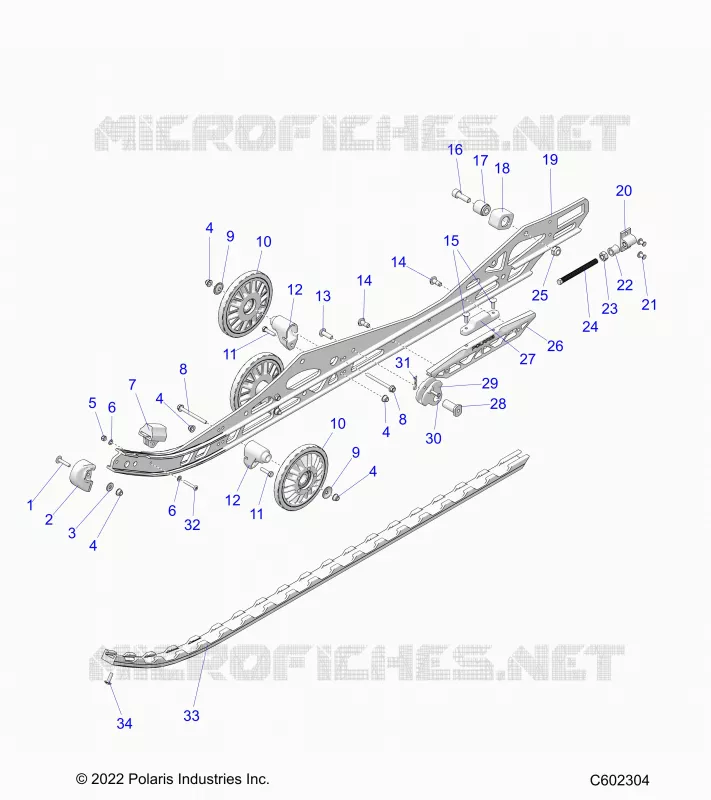

Find the detailed SUSPENSION, RAIL BEAM LH/RH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
