1
Engine displacement
300
2
Year
1994
3
Trim
300 6X6 - W948730
4
Parts Catalog
PISTON CRANKSHAFT 6X6 300 W948730 (4926792679D005)
5
Parts Diagram
Parts Catalog
CRANKCASE AND CYLINDER 6X6 300 W948730 (4926792679D003)
by
OIL PUMP 6X6 300 W948730 (4926792679D006)
PISTON CRANKSHAFT 6X6 300 W948730 (4926792679D005)
-
1
1
2
2
3
3
3
3
3
3
3
3
3
4
5
6
7
8
9
10
11
12
12
12
12
13
14
15
16
16
16
16
17
-
RING PISTON (.50MM O/S) (2)
3084811
9999999
Not Available
1
RING PISTON (.25MM O/S)
3084810
9999999
Not Available
1
RINGPISTONSTD.(2)
3084809
9999999
Not Available
2
PISTON PIN CLIP
3084167
2207579
$356,99 Unit Price incl. VAT
3
SET PISTON .010/.25MM O/S
3084807
9999999
Not Available
3
SET PISTON STANDARD
3084806
9999999
Not Available
3
SET PISTON .020/.50MM O/S
3084808
9999999
Not Available
4
PISTON PIN
3083858
9999999
Not Available
5
CONNECTING ROD
3082790
9999999
Not Available
6
BEARING SMALL END
3083626
9999999
Not Available
7
BALL BEARING 45 X 75 X 16 MM
3084580
9999999
Not Available
8
GEAR CRANKSHAFT
3083745
9999999
Not Available
9
KEY WOODRUFF
3081543
$26,24 Unit Price incl. VAT
10
WASHER
3083904
9999999
Not Available
11
LOCK NUT
3083905
9999999
Not Available
12
CRANKSHAFT #1
3084804
Not Available
12
CRANKSHAFT ASM.
3084803
9999999
Not Available
13
SPACER
3083804
9999999
Not Available
14
BEARING LGE.END
3083803
9999999
Not Available
15
CRANKSHAFT #2
3084805
Not Available
16
SPACER #1
3084778
9999999
Not Available
16
SPACER #2
3084779
9999999
Not Available
17
CRANK PIN PTO
3082796
9999999
Not Available

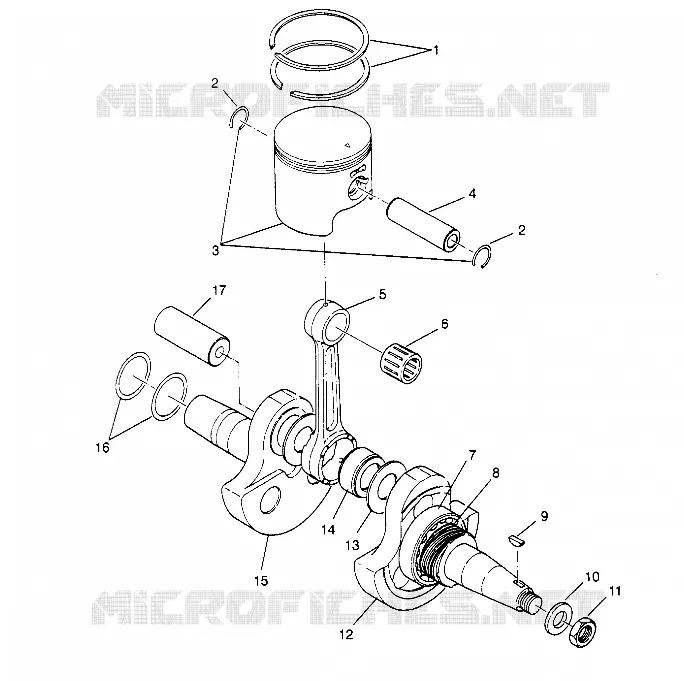

Find the detailed PISTON CRANKSHAFT 6X6 300 W948730 (4926792679D005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
