1
Engine displacement
650
2
Year
2023
3
Trim
650 INDY XC 137
4
Parts Catalog
FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY
5
Parts Diagram
Parts Catalog
STEERING, HAND GUARDS
by
FUEL SYSTEM, FUEL TANK ASM.
FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY
10
11
12
13
1
CABLE TIE
7080356
$4,19 Unit Price incl. VAT
2
FOAM-BLOCK FUEL LINES/INTAKE
5814703
$8,39 Unit Price incl. VAT
3
ASM-FUEL LINE SUPPLY PFA
2522203
$120,74 Unit Price incl. VAT
4
ASM-FUEL LINE RETRN PFA W/SNSR
2522204
$346,49 Unit Price incl. VAT
5
INJECTOR HARNESS W/ LEAD
4017536
4082753
$503,99 Unit Price incl. VAT
6
SCR-M7X1.00X63 HX/SOC/SEMS10.9
7520849
$9,44 Unit Price incl. VAT
7
O-RING-BOSCH EV-14 UPPER
1500198
$20,25 Unit Price incl. VAT
8
BOSCH O-RING
5412891
$2,09 Unit Price incl. VAT
9
INJECTOR ELASTOMER RUBBER BUSHING
5436287
$6,29 Unit Price incl. VAT
10
ASM-THROTTLE BODY;50MM;650
1208674
$892,49 Unit Price incl. VAT
11
WRENCH-8MMX10MM OPEN END
Not Available
12
ASM-FUEL RAIL;133P
2522184
$782,24 Unit Price incl. VAT
13
K-CABLE TIE-90DEG;OFFSET;TREE
7082537
$7,34 Unit Price incl. VAT

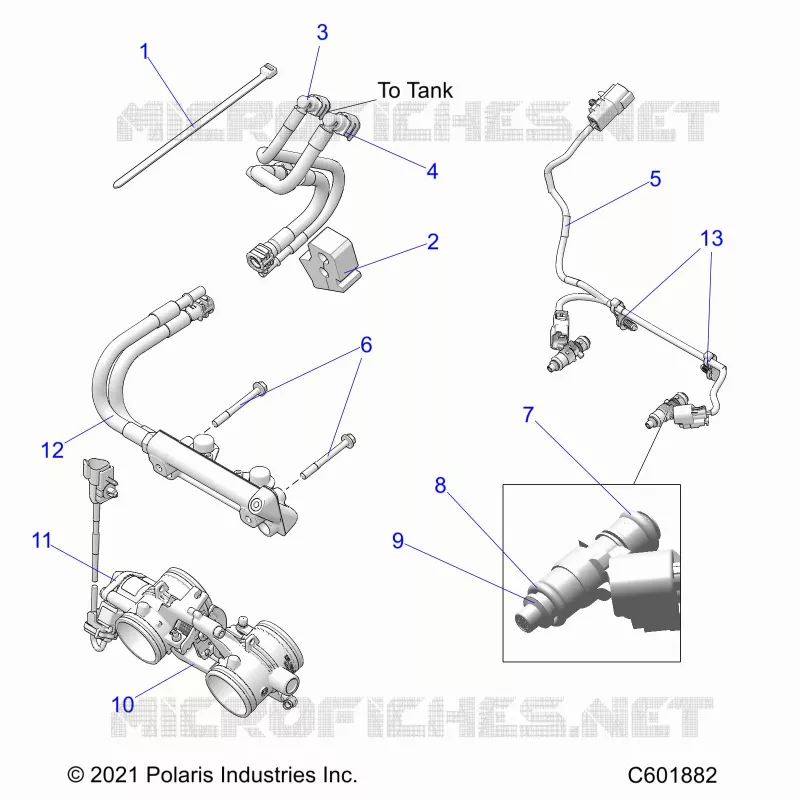

Find the detailed FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
