REAR SUSPENSION CONTROL ARMS for POLARIS RZR XP 4 1000 PREMIUM from 2024

SUSPENSION, REAR CARRIER AND HUB

SUSPENSION, REAR SHOCK MOUNTING

REAR SUSPENSION CONTROL ARMS

1

ASM-TRL ARM;LH;BLK

1544718458

Not Available

2

ASM-TRL ARM;RH;BLK

1544719458

Not Available

3

SPHERICAL BEARING; 0.625

3514689

$68,24 Unit Price incl. VAT

4

REDUCER BUSHING; 12 MM

5336751

$12,59 Unit Price incl. VAT

5

SCR-HXFL-M10X1.25X75 10.9 ZOD

7519286

$13,64 Unit Price incl. VAT

6

HEX FLANGE SCREW; 12 MM X 1.5 MM; 60 MM

7519138

$17,84 Unit Price incl. VAT

7

NUT 12MM X 1.5MM

7547334

$9,44 Unit Price incl. VAT

8

RETAINING RING

7710437

$5,76 Unit Price incl. VAT

9

ASM-RADIUS ROD;BTM;BLK

1544931458

Not Available

10

ASM-RADIUS ROD;TOP;BLK

1544298458

Not Available

11

PLATE-REAR BOLT BRACE M.BLK

5262630458

Not Available

12

HEX FLANGE SCREW 12 MM X 1.5 MM X 105 MM

7520479

$13,64 Unit Price incl. VAT

13

HEX FLANGE SCREW; 12 MM X 1.5 MM X 65 MM

7520477

$6,08 Unit Price incl. VAT

14

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

15

WASHER 13 X 2.5

7556287

$13,64 Unit Price incl. VAT

16

WASHER

7556153

$3,66 Unit Price incl. VAT

17

SPHERICAL BEARING

7082253

$27,29 Unit Price incl. VAT

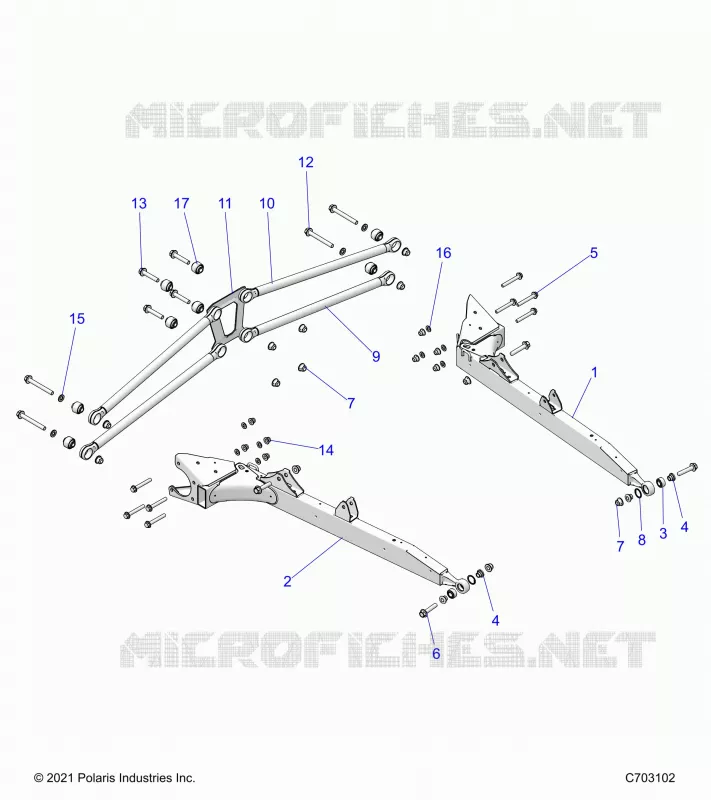

Find the detailed REAR SUSPENSION CONTROL ARMS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
