1
Engine displacement
570
2
Year
2018
3
Trim
SPORTSMAN 570 X2 EPS EU
4
Parts Catalog
EXHAUST
5
Parts Diagram
Parts Catalog
ELECTRICAL, GAUGES AND INDICATORS
by
ENGINE, FUEL INJECTOR 2521068 O-RINGS
EXHAUST
1
1
2
2
3
3
4
4
5
6
6
7
7
8
8
9
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
28
29
1
2
2
3
4
4
5
6
7
7
8
9
10
11
12
13
13
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
26
27
27
28
29
1
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
2
WASHER
7555716
$3,14 Unit Price incl. VAT
3
WASHER 15.4 X 38.1 X 7.9 RUB
5414945
$9,44 Unit Price incl. VAT
4
SPRING
7041804
$16,79 Unit Price incl. VAT
5
BRKT-EXHAUST MNT;PLATED
5258198
$31,49 Unit Price incl. VAT
6
VIBRATION DAMPER
5414946
$9,44 Unit Price incl. VAT
7
BUSHING
5010192
$12,59 Unit Price incl. VAT
8
BOLT
7515316
$4,19 Unit Price incl. VAT
9
CLAMP-HOSE 2.00-SS
7082359
$25,19 Unit Price incl. VAT
10
ASM-EXHAUST PIPE;570 EFI;SS
1263100
$545,99 Unit Price incl. VAT
11
EXHAUST HEAT SHIELD; MID
5260801
5267367
$120,74 Unit Price incl. VAT
12
MANIFOLD WELD
1263099
$278,24 Unit Price incl. VAT
13
SHIELD-HEAT EXHAUST HEADPIPE
5260800
$68,24 Unit Price incl. VAT
14
EXHAUST WELD; SILENCER
1263139
1263784
$703,49 Unit Price incl. VAT
15
BOLT-1/2-13 X5/8 HHCS 304 SS
7520756
$10,49 Unit Price incl. VAT
16
WASHER-CLEAN OUT .51X75X.09
7557077
$14,69 Unit Price incl. VAT
17
EXHAUST SEALING GASKET
5253989
$52,49 Unit Price incl. VAT
18
HEX SOCKET SCREW
7517555
$15,74 Unit Price incl. VAT
19
EXHAUST HEAT SHIELD; REAR
5265059
5267366
$136,49 Unit Price incl. VAT
20
HEAT SHIELD; MID EXHAUST; INNER
5260808
5267368
$62,99 Unit Price incl. VAT
21
BOLT-5/16-18X1-3/4 HXFLNG GR5
7518341
$9,44 Unit Price incl. VAT
22
EXHAUST SEAL
5256385
$52,49 Unit Price incl. VAT
23
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
24
CLAMP-45.0DX7W 304SS OETIKER
7082132
$9,44 Unit Price incl. VAT
25
SHIELD-HEAT EXHAUST
5259925
$68,24 Unit Price incl. VAT
26
SHIELD-FUEL TANK;FRAME MNT;TRG
5262925
$52,49 Unit Price incl. VAT
27
AIRBOX SHIELD ASSEMBLY
2636957
$89,24 Unit Price incl. VAT
28
SCREW
7517386
$2,09 Unit Price incl. VAT
29
NUT
7670096
$3,14 Unit Price incl. VAT

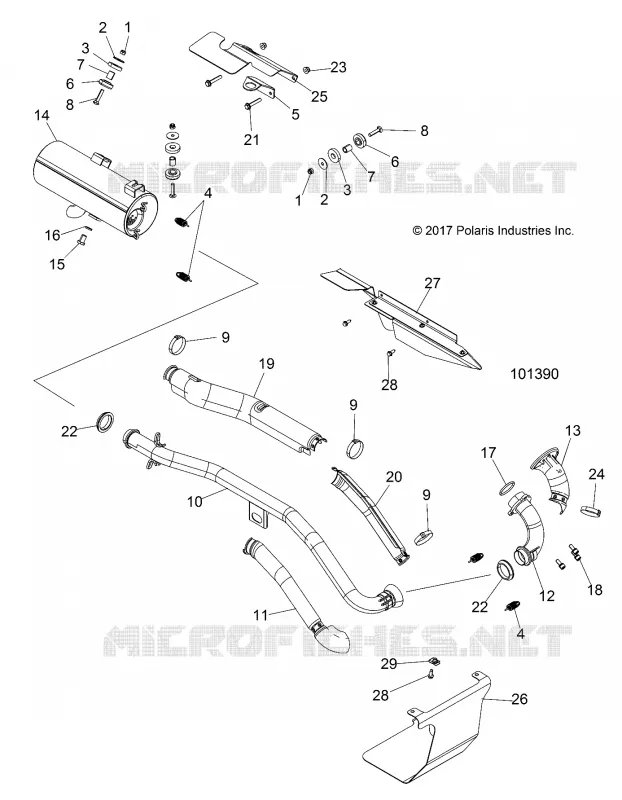

Find the detailed EXHAUST POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
