1
Engine displacement
850
2
Year
2016
3
Trim
SPORTSMAN TOURING 850 SP
4
Parts Catalog
FUEL TANK
5
Parts Diagram
Parts Catalog
FRONT CAB
by
REAR BODYWORK RACK ASM.
FUEL TANK
1
KIT-FUEL PUMP;4 BAR TWIN XP
2205525
2212567
$350,16 Unit Price incl. VAT
1
ASM-FUEL TANK W/PUMP4 BAR
2521415
9999999
Not Available
2
GAS TANK CAP
5439075
$47,24 Unit Price incl. VAT
3
HOSE CLAMP
7080236
$3,14 Unit Price incl. VAT
4
FUEL INLET
5436898
$157,49 Unit Price incl. VAT
5
CLAMP BAND; NARROW
7080413
$5,76 Unit Price incl. VAT
6
FUEL FILL HOSE
5413142
$68,24 Unit Price incl. VAT
7
SCR-HXFL-M6X1.0X30 RIE DGPNT
7519202
$7,34 Unit Price incl. VAT
8
FUEL LINE ASSEMBLY
2521315
$89,24 Unit Price incl. VAT
9
LINE-VENT 5/16 ID 27 CM
845012627
Not Available
10
NYLOK NUT
7546703
$2,09 Unit Price incl. VAT
11
CLAMP-CONSTANT TENSION;50-70
7081413
$20,99 Unit Price incl. VAT
12
FLAT WASHER
7555859
$2,09 Unit Price incl. VAT
13
VACUUM CHECK VALVE
7052390
$15,74 Unit Price incl. VAT
14
FITTING-Y 1/4
7052589
$5,99 Unit Price incl. VAT
15
FUEL LINE; 1/4 ID
84500031525
Not Available

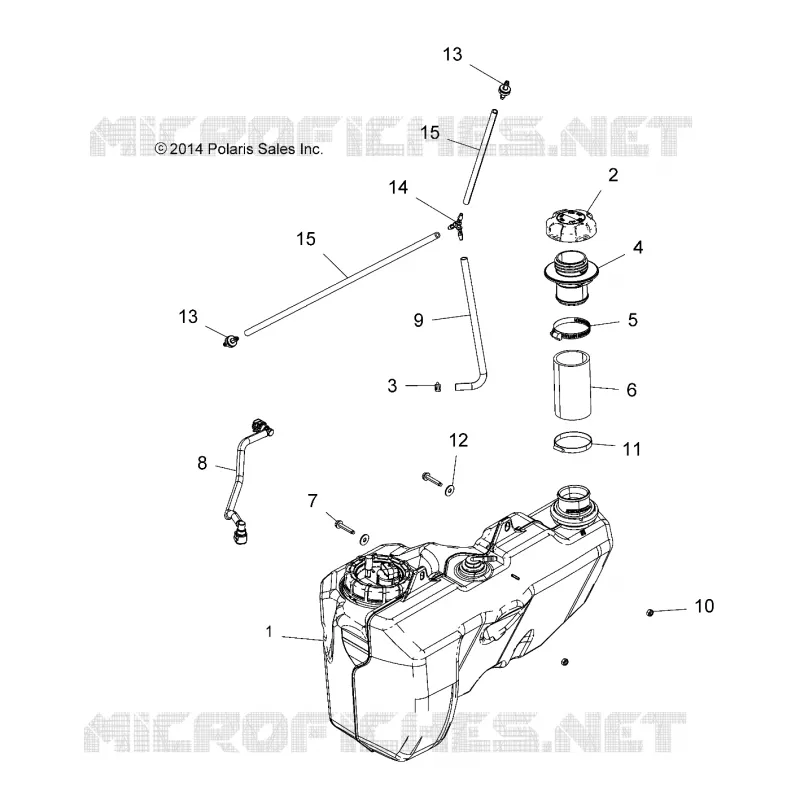

Find the detailed FUEL TANK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
