1
Engine displacement
800
2
Year
2019
3
Trim
800 AXYS PRO-RMK 163 SC / 3"
4
Parts Catalog
ENGINE, COOLING SYSTEM
5
Parts Diagram
Parts Catalog
CHASSIS, CHASSIS ASM. AND OVER STRUCTURE
by
FUEL SYSTEM, FUEL TANK ASM.
ENGINE, COOLING SYSTEM
1
1
2
3
4
5
6
6
6
7
8
9
10
10
11
12
13
14
15
16
16
17
18
18
19
19
20
20
1
PRESSURE CAP
1240300
$73,49 Unit Price incl. VAT
2
FUEL LINE; 1/4 ID
84500031525
Not Available
3
FOIL-COOLANT BOTTLE
5814349
$9,44 Unit Price incl. VAT
4
COOLANT BOTTLE WELD
2521529
$73,49 Unit Price incl. VAT
5
RIVET
7621472
$2,09 Unit Price incl. VAT
6
SPRING BAND CLAMPS; 32/12
7080843
$7,34 Unit Price incl. VAT
7
HOSE-BOTTLE/TUN OUT
5415466
9999999
Not Available
8
HOSE ENGINE AND COOLRE ASSEMBLY
1262807
$194,24 Unit Price incl. VAT
9
FOAM-COOLING HOSE
5814351
9999999
Not Available
10
ASM-THERMOSTAT
1206407
Not Available
10
O-RING LIP SEAL
5411521
9999999
Not Available
11
CLAMP HOSE SS
7080560
$20,99 Unit Price incl. VAT
12
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
13
HOSE BOTTLE AND ENGINE ASSEMBLY
1263043
$278,24 Unit Price incl. VAT
14
HOSE SUPPORT
5416295
9999999
Not Available
15
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
16
HOSE CLAMP
7080534
$3,14 Unit Price incl. VAT
17
HOSE-TBODY/COOLANT BOTTLE
5415330
9999999
Not Available
18
CLAMP SPRINGBAND
7081693
$8,39 Unit Price incl. VAT
19
CONDUIT-FLEX .750 ID 16CM
552139816
Not Available
19
ASM-HOSE BYPASS;AFS SNOW
1205187
$62,99 Unit Price incl. VAT
20
SCREW
7517278
9999999
Not Available
20
CLAMP-.75ID RUBBER COATED MED
7082047
$6,29 Unit Price incl. VAT

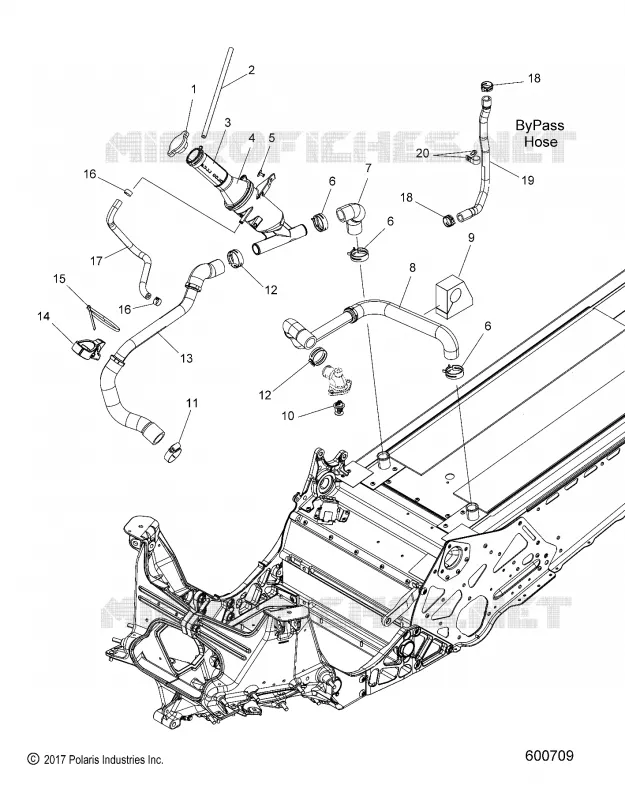

Find the detailed ENGINE, COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
