WIRE HARNESS, CHASSIS -Z20RAD92AC/BC/AR/BR (C2415218) for POLARIS RZR PRO XP from 2020

WIRE HARNESS, CHASSIS -Z20RAD92AC/BC/AR/BR (C2415218)

1

CHASSIS HARNESS; RZR; T; 96 X 64; DX

2415218

2415916

$3 501,74 Unit Price incl. VAT

2

LABEL-FUSE BOX

7192416

9999999

Not Available

3

LABEL-PDM RZR

7189870

Not Available

4

CLIP-XMAS 6.35MM HOLE TAPE-ON

7082411

$6,29 Unit Price incl. VAT

5

CLIP-FIR TREE;12.5MM OFF;90DEG

7082406

$6,29 Unit Price incl. VAT

6

EDGE CLIP; 1 MM - 3 MM

7082403

$9,44 Unit Price incl. VAT

7

CLIP-EDGE 1-3MM THICKNESS

7082402

$13,64 Unit Price incl. VAT

8

CLIP-EDGE 3-6MM THICKNESS

7082399

$10,49 Unit Price incl. VAT

9

CLIP-ROUTING DIN BOX

7082020

$10,49 Unit Price incl. VAT

10

CABLE TIE-FIR TREE

7082003

$6,29 Unit Price incl. VAT

11

STRAP-PANDUIT DBL LOOP 260MM

7081916

$9,44 Unit Price incl. VAT

12

HARNESS CLIP EDGE

7081890

$19,94 Unit Price incl. VAT

13

STRAP-CABLE TIEW/EDGECLIP3-6MM

7081824

$26,24 Unit Price incl. VAT

14

CABLE TIE STRAP WITH EDGE CLIP

7081808

$10,49 Unit Price incl. VAT

15

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

16

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

17

GROMMET-65MM BLK

5813954

$13,64 Unit Price incl. VAT

18

CAP BLACK 125 X 375 VINYL

5438230

$10,49 Unit Price incl. VAT

19

GROMMET-SPEAKER VOLUME

5413027

$5,24 Unit Price incl. VAT

20

EXTERNAL GPS ANTENNA

4018662

$209,99 Unit Price incl. VAT

21

FUSE-ZCASE 200A

4018415_200

Not Available

22

FUSE-MCASE SLOTTED 40A

4018414_40

Not Available

23

FUSE-MCASE SLOTTED 30A

4018414_30

Not Available

24

CAP-EVAP CONNECTOR

4018066

$8,39 Unit Price incl. VAT

25

FUSE-PDM

4017598

$104,99 Unit Price incl. VAT

26

FUSE BOX RELAY

4016819

$68,24 Unit Price incl. VAT

27

BOOT-TMAP

4016101

9999999

Not Available

28

DIAGNOSTIC COVER WITH CLIP

4012170

4083556

$15,00 Unit Price incl. VAT

29

FUSE 5 AMP

4011652

9999999

Not Available

30

DIODE-6AMP

4011474

$83,99 Unit Price incl. VAT

31

MINI BLADE FUSE; 7.5

4011068

9999999

Not Available

32

FUSE 10 AMP

2434016

$10,49 Unit Price incl. VAT

33

RESISTOR-EVAP PULLUP-1K0HM

2414716

$18,89 Unit Price incl. VAT

34

LED-PANEL MNT;12V;BLUE

2413217

$99,74 Unit Price incl. VAT

35

DIODE-6AMP 1/4 3/16 TERM

2411035

$104,99 Unit Price incl. VAT

36

FUSE-MINI BLADE;15 AMP

2410280

4010859

$15,74 Unit Price incl. VAT

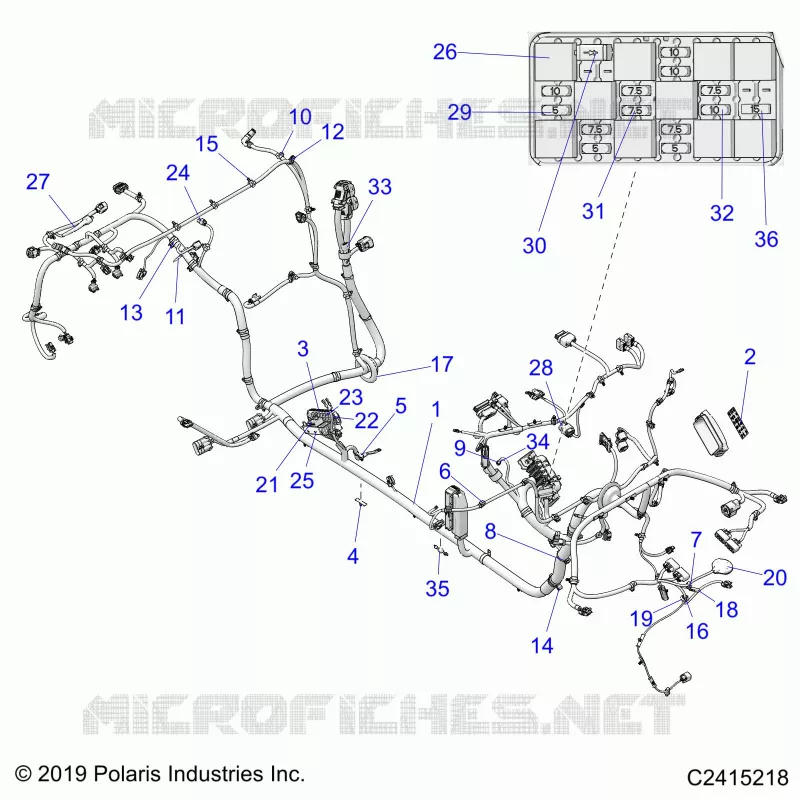

Find the detailed WIRE HARNESS, CHASSIS -Z20RAD92AC/BC/AR/BR (C2415218) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
